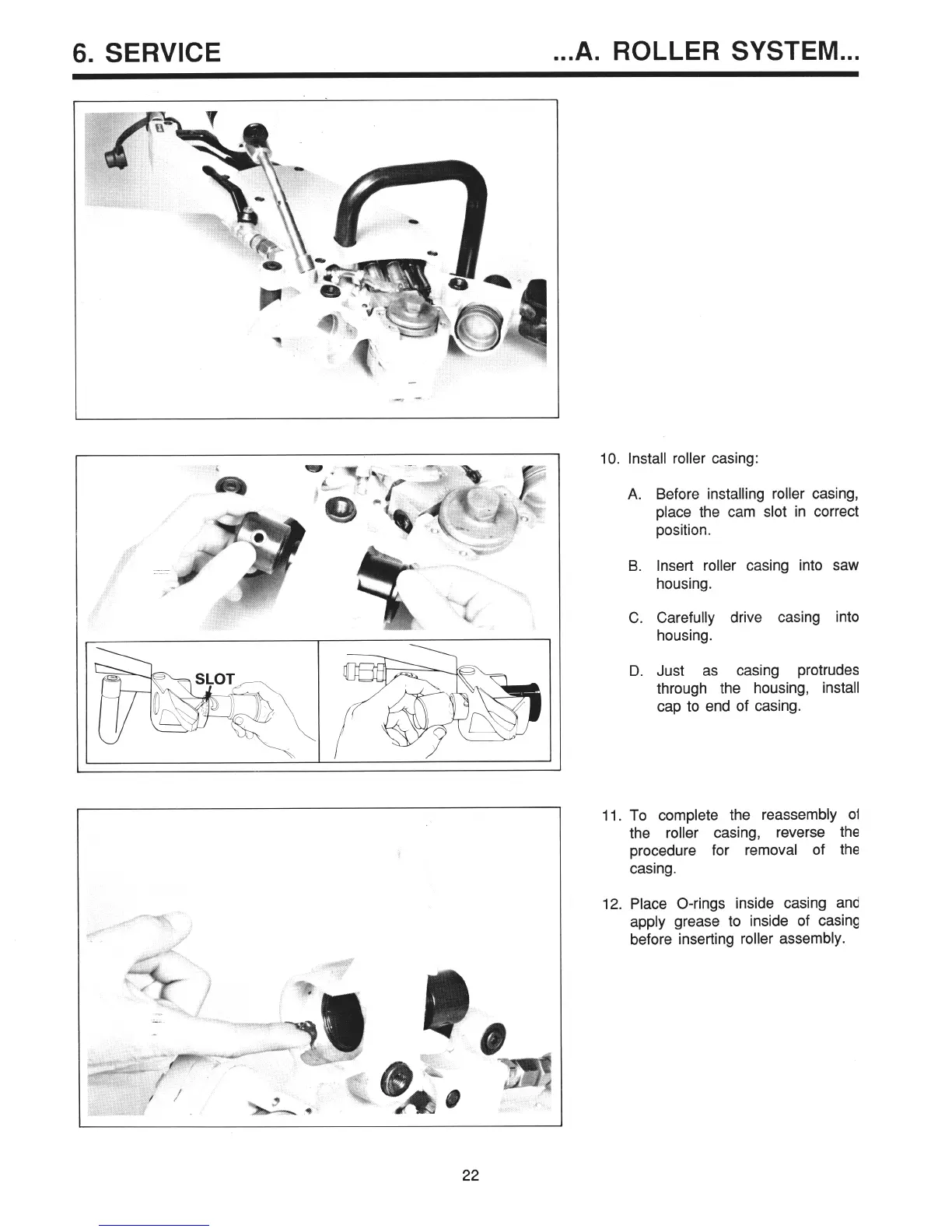

10. Install roller casing:
A. Before installing roller casing,
place the cam slot in correct
position.
B. Insert roller casing into saw
housing.
C. Carefully drive casing into
housing.
D. Just as casing protrudes
through the housing, install
cap to end of casing.
11. To complete the reassembly of
the roller casing, reverse the
procedure for removal of the
casing.
12. Place O-rings inside casing and
apply grease to inside of casing
before inserting roller assembly.
22
