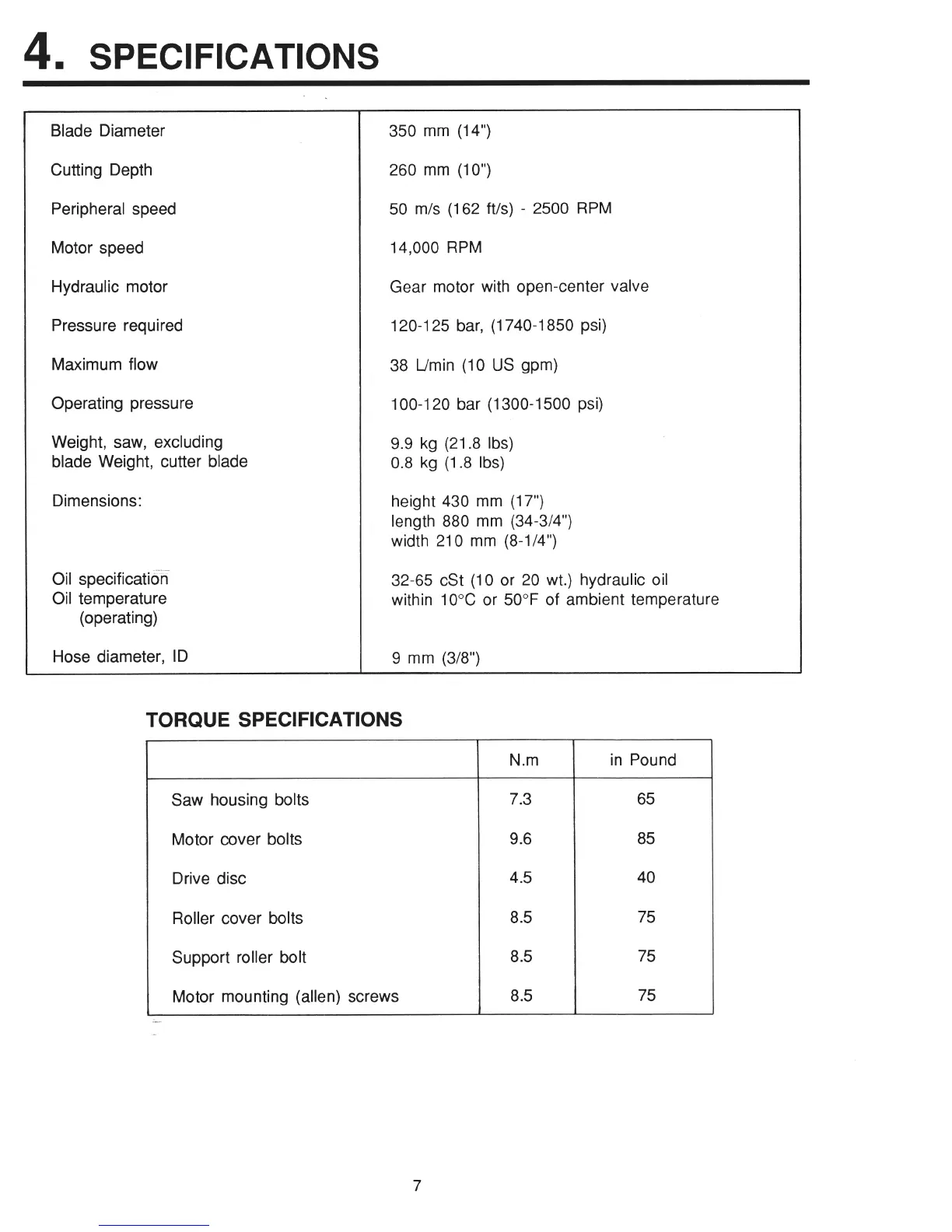

4.
SPECIFICATIONS
Blade Diameter
Cutting Depth
Peripheral speed
Motor speed
Hydraulic motor
Pressure required
Maximum flow
Operating pressure
Weight, saw, excluding
blade Weight, cutter blade
Dimensions:
Oil specification
Oil temperature
(operating)
350 mm (14”)
260 mm (IO”)
50 m/s (162 ft/s) - 2500 RPM
14,000 RPM
Gear motor with open-center valve
120-125 bar, (1740-1850 psi)
38 L/min (10 US gpm)
100-l 20 bar (1300-1500 psi)
9.9 kg (21.8 Ibs)
0.8 kg (1.8 Ibs)
height 430 mm (17”)
length 880 mm (34-3/4”)
width 210 mm (8-l/4”)
32-65 cSt (10 or 20 wt.) hydraulic oil
within 10% or 50°F of ambient temperature
Hose diameter, ID
9 mm (3/8”)
TORQUE SPECIFICATIONS
Saw housing bolts
7.3
Motor cover bolts
9.6
Drive disc
4.5
Roller cover bolts
8.5
Support roller bolt
8.5
Motor mounting (allen) screws
8.5
N.m in Pound
I
7
