I, 6. SERVICE
. ..A. ROLLER SYSTEM...
.,..~ -

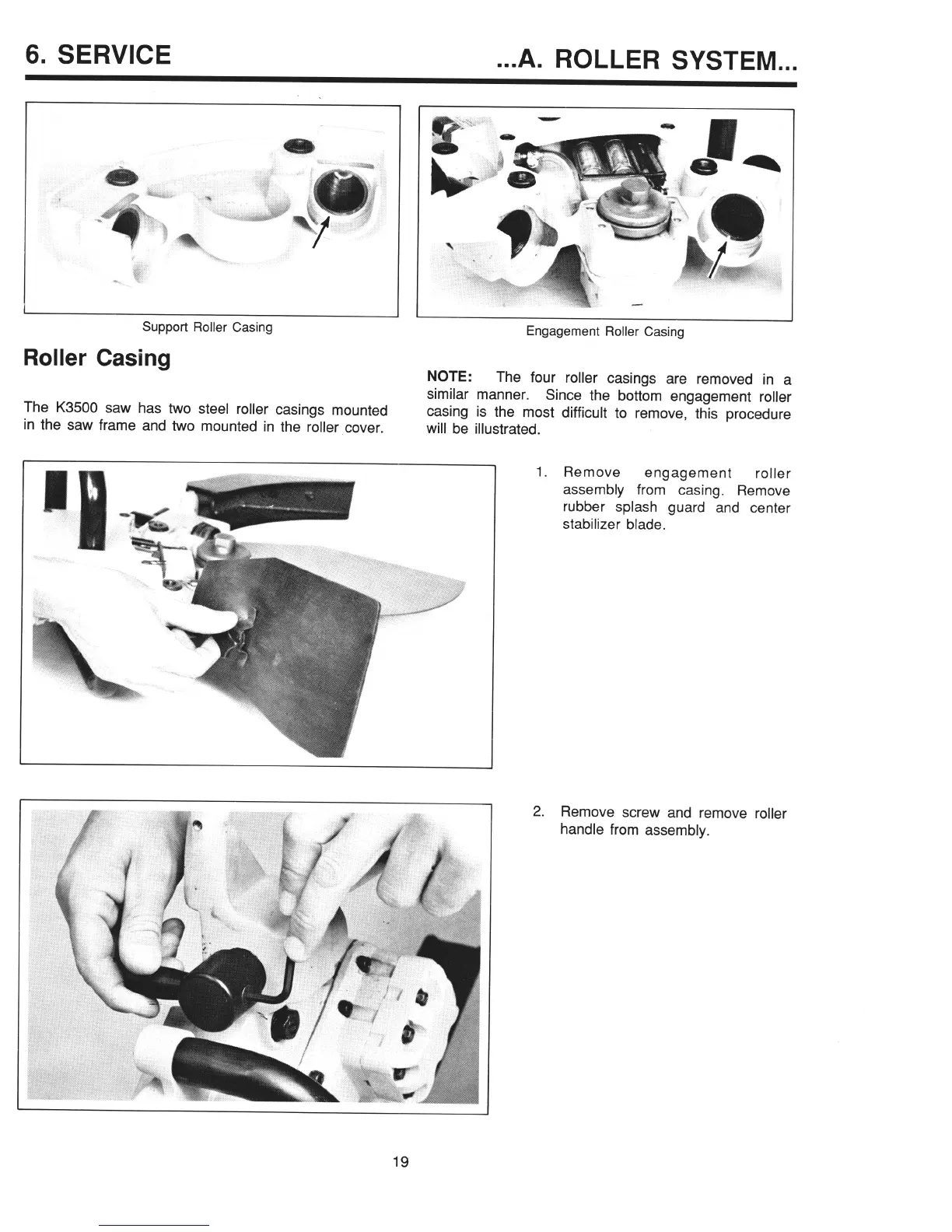

Roller Casing
The K3500 saw has two steel roller casings mounted
in the saw frame and two mounted in the roller cover.
Engagement Roller Casing
NOTE: The four roller casings are removed in a
similar manner.
Since the bottom engagement roller
casing is the most difficult to remove, this procedure
will be illustrated.
1.
Remove
engagement
roller
assembly from casing. Remove
rubber splash guard and center
stabilizer blade.
2. Remove screw and remove roller
handle from assembly.
