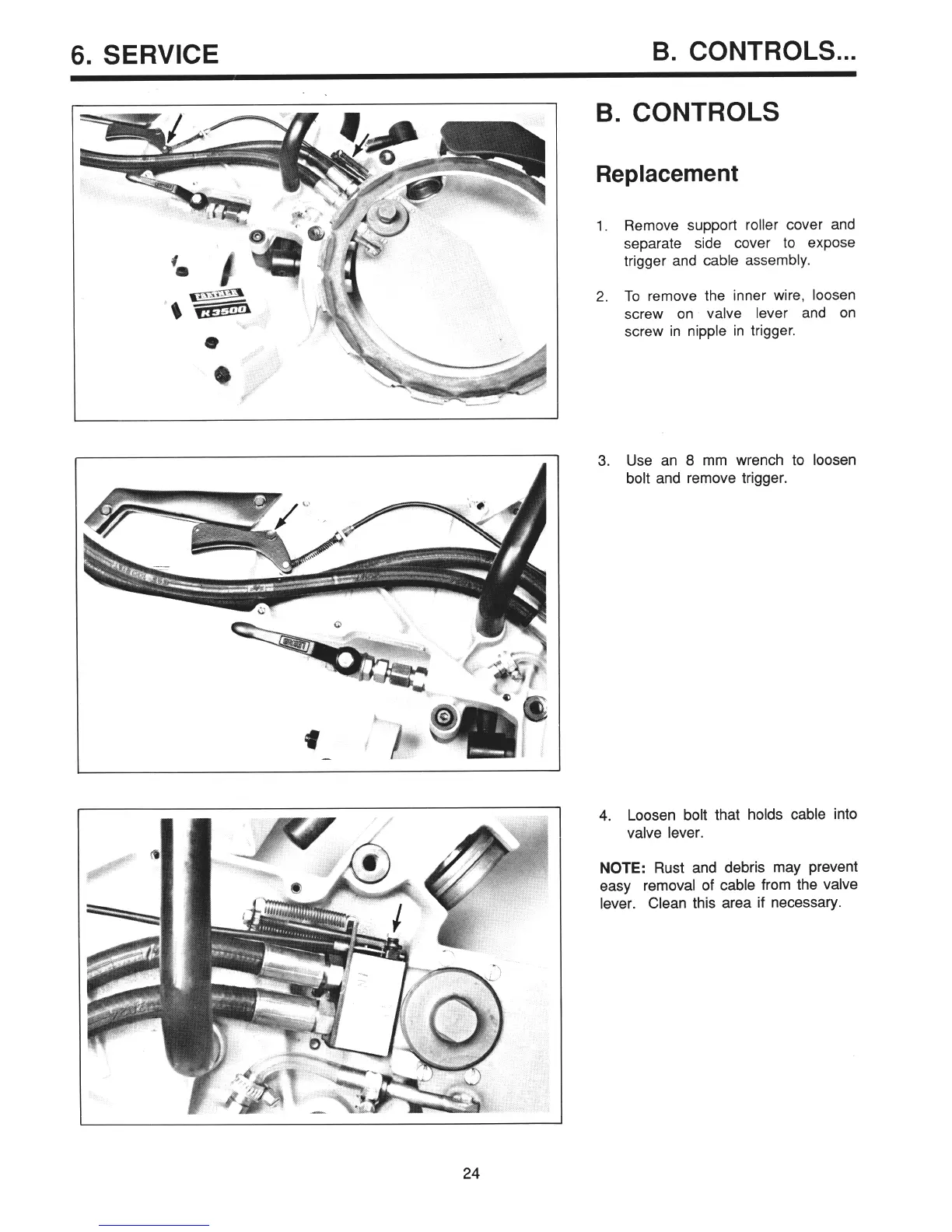

6. SERVICE
B. CONTROLS... .
B. CONTROLS
Replacement
1. Remove support roller cover and
separate side cover to expose
trigger and cable assembly.
2. To remove the inner wire, loosen
screw on valve lever and on
screw in nipple in trigger.
3. Use an 8 mm wrench to loosen
bolt and remove trigger.
4. Loosen bolt that holds cable into
valve lever.
NOTE: Rust and debris may prevent
easy removal of cable from the valve
lever. Clean this area if necessary.
24
