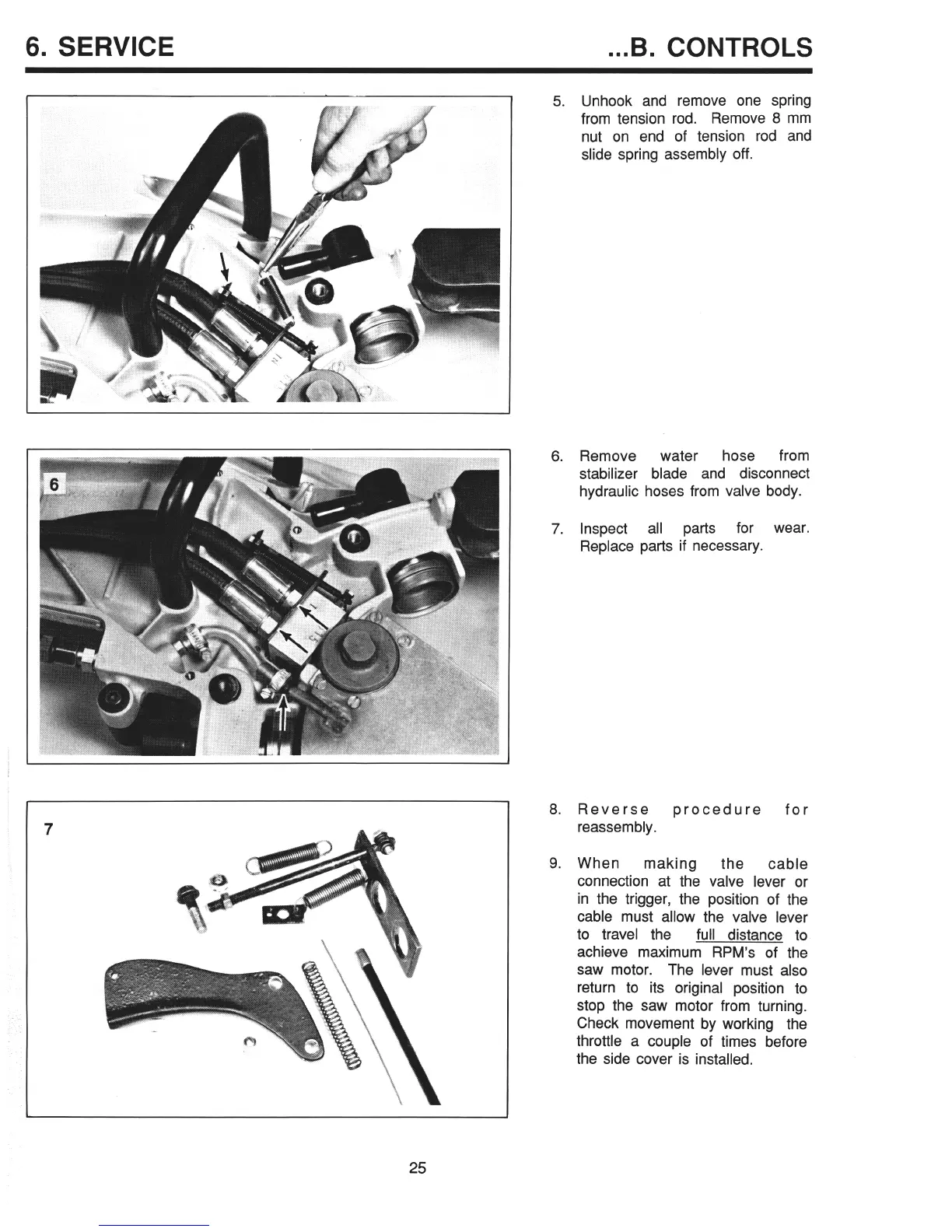

i 6. SERVICE
. ..B. CONTROLS
5. Unhook and remove one spring
from tension rod. Remove 8 mm
nut on end of tension rod and
slide spring assembly off.
6. Remove
water
hose
from
stabilizer blade and disconnect
hydraulic hoses from valve body.
7. Inspect all
parts for wear.
Replace parts if necessary.
8. Reverse
procedure
for
reassembly.
9. When
making
the
cable
connection at the valve lever or
in the trigger, the position of the
cable must allow the valve lever
to travel the
full distance to
achieve maximum RPM’s of the
saw motor. The lever must also
return to its original position to
stop the saw motor from turning.
Check movement by working the
throttle a couple of times before
the side cover is installed.
25
