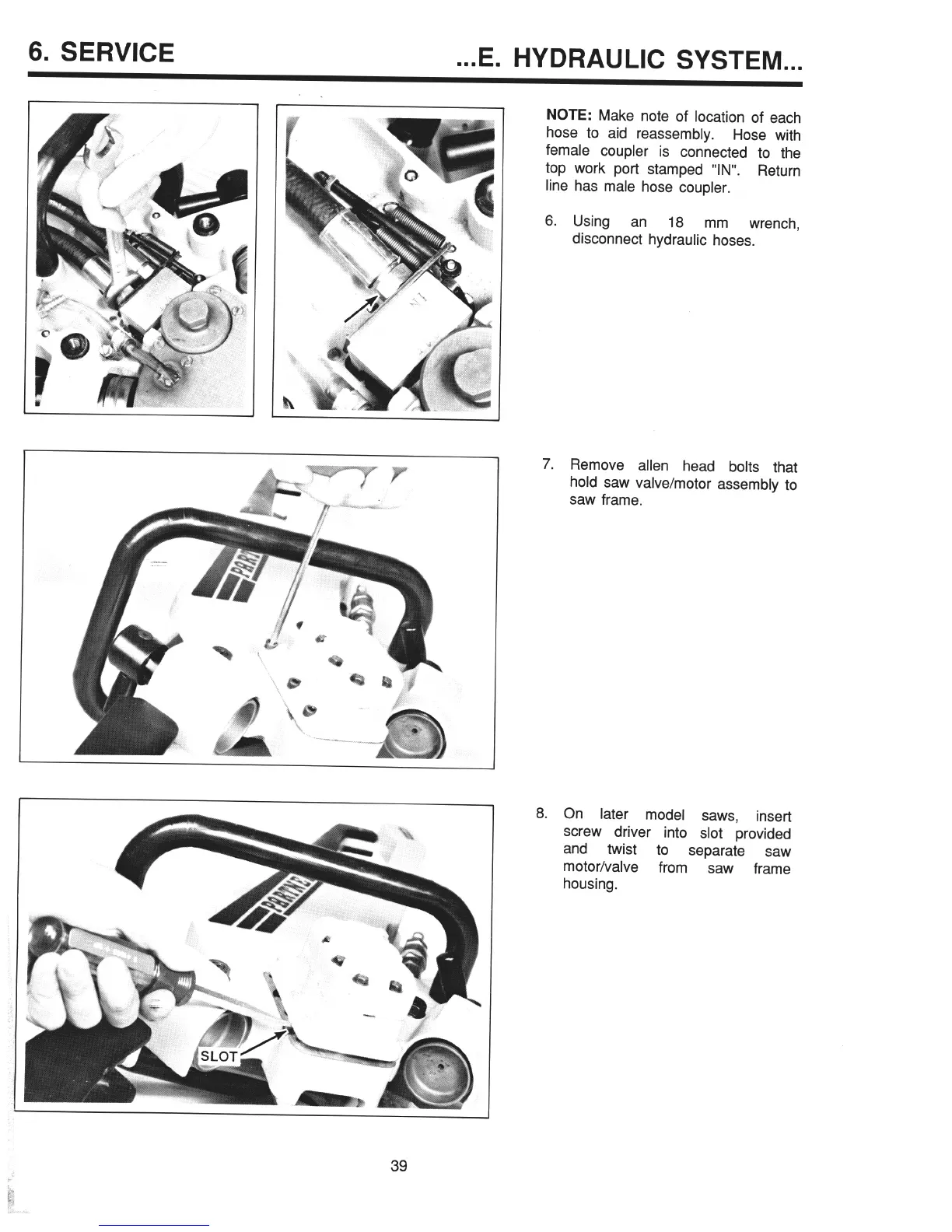

6. SERVICE . ..E. HYDRAULIC SYSTEM...
I
NOTE: Make note of location of each
hose to aid reassembly. Hose with
female coupler is connected to the
top work port stamped “IN”. Return
line has male hose coupler.
6. Using an 18 mm wrench,
disconnect hydraulic hoses.
7. Remove allen head bolts that
hold saw valve/motor assembly to
saw frame.
8. On later model saws, insert
screw driver into slot provided
and twist to separate
saw
motor/valve from saw frame
housing.
