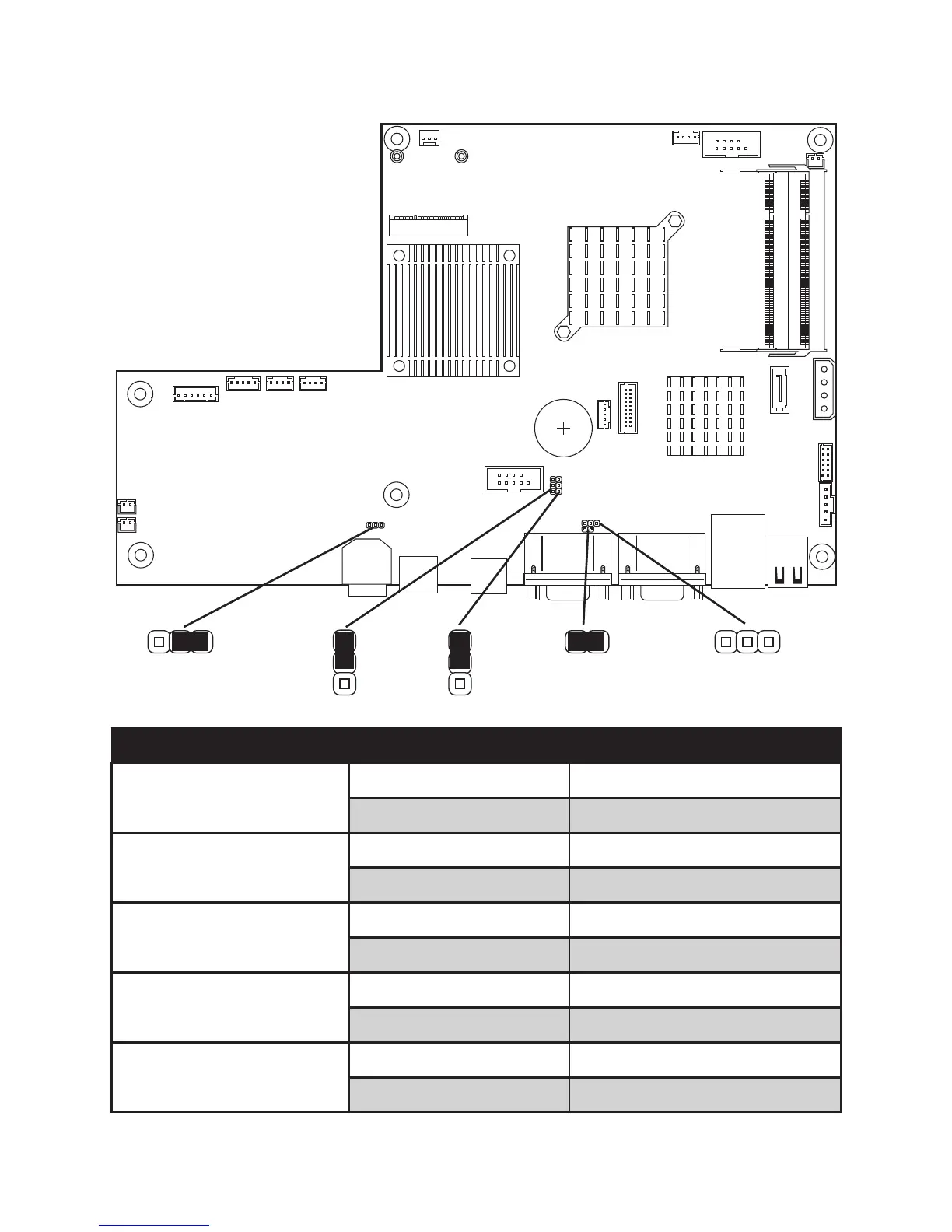

Partner PT-6212 - Mainboard Jumpers; Figure 4.2 PT-6212 Mainboard Jumpers

48 CHAPTER 4 LOCATING THE PROBLEM
Mainboard jumpers
J2 J4 J3J5 J1
PT-6212 mainboard Figure 4.2
jumpers
Jumper Setting Description
J1
1-2 Clear CMOS
2-3 (Default) Normal
J2
1-2 (Default) Keyboard Power Vcc
2-3 Keyboard Power Vcc SB
J3
1-2 COM3 Power Vcc
2-3 COM3 Power Vcc12V
J4
1-2 COM4 Power for RI
2-3 COM4 Power for Vcc
J5
1-2 COM3 Power for RI
2-3 COM3 Power for Power Pin
