Partner SP-800 - Mainboard Connectors; Inverter Connectors; Figure 4.3 SP-800 Mainboard Connectors; Figure 4.4 Inverter Connectors

44 C H A P T E R 4 L O C A T I N G T H E P R O B L E M

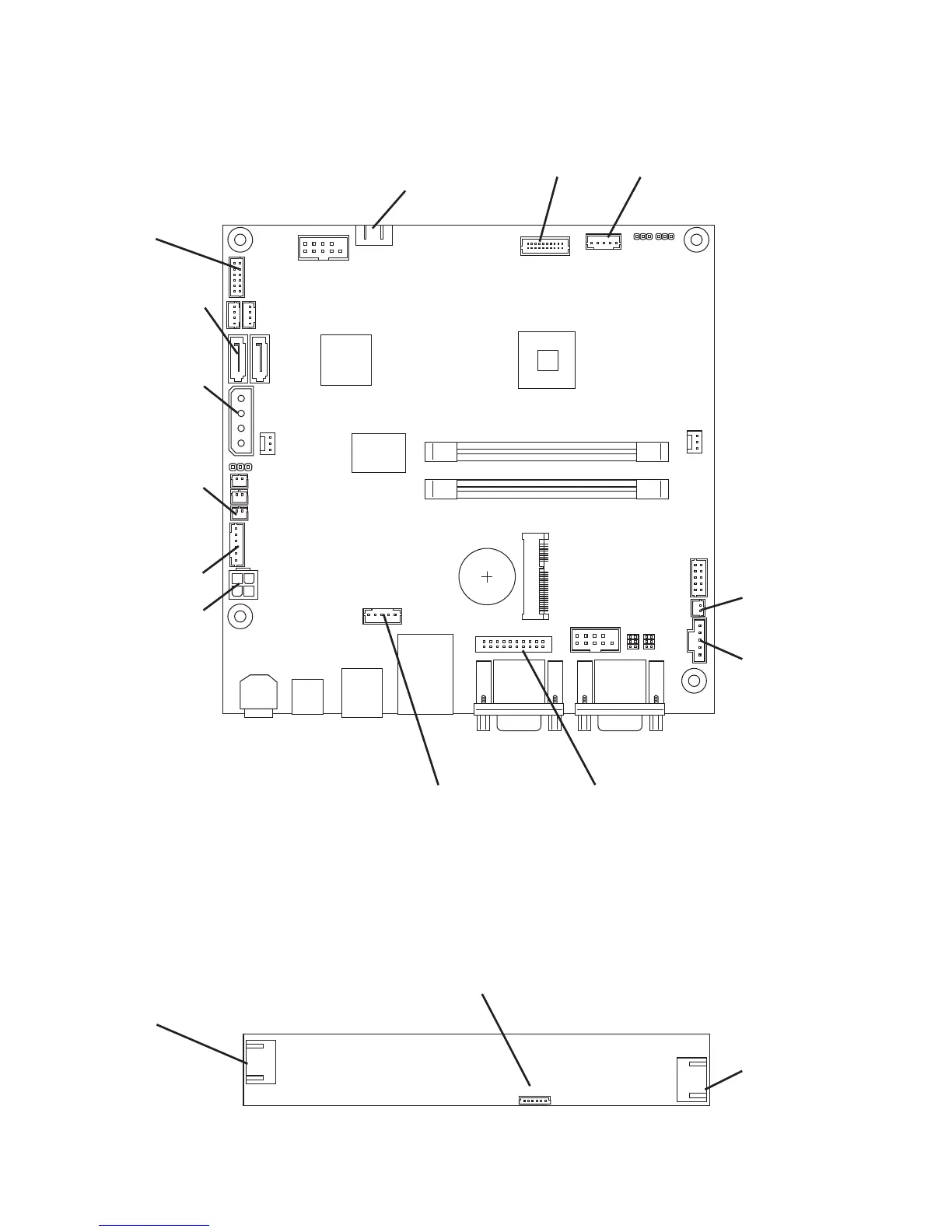

Figure 4.4 Inverter connectors
Inverter connectors
connector to
mainboard
connector to
LCD
connector to
LCD
Figure 4.3 SP-800 mainboard connectors
Mainboard connectors
connector to
inverter
connector to
LCD panel
connector
to customer
display
connector to
MSR
connector to
SATA HDD
connector to
HDD power
connector to
speaker
connector to
touch panel
connector to
PS/2 port
connector to
parallel port
connector to
power LED
connector to
power button
connector to
power jack
