56 C H A P T E R 5 R E P L A C I N G F I E L D R E P L A C E A B L E U N I T S ( F R U s )
Waterproof Seal, Touch Panel, Touch Cover, LCD Panel
Before proceeding, remove
the following FRUs.
• “Back Cover” on page 50.
• “Speaker” on page 61.
• “Power Button” on page
61.
• “COM4 port and PS/2
port” on page 52.
• “I/O Shield” on page 52.
• “Mainboard” on page 54.
• “Inverter” on page 54.
• “Panel Bracket” on page
55.
1. Remove the LCD panel.
2. Remove the touch cover
panel.
3. Remove the touch panel.
4. Remove the waterproof
seal.

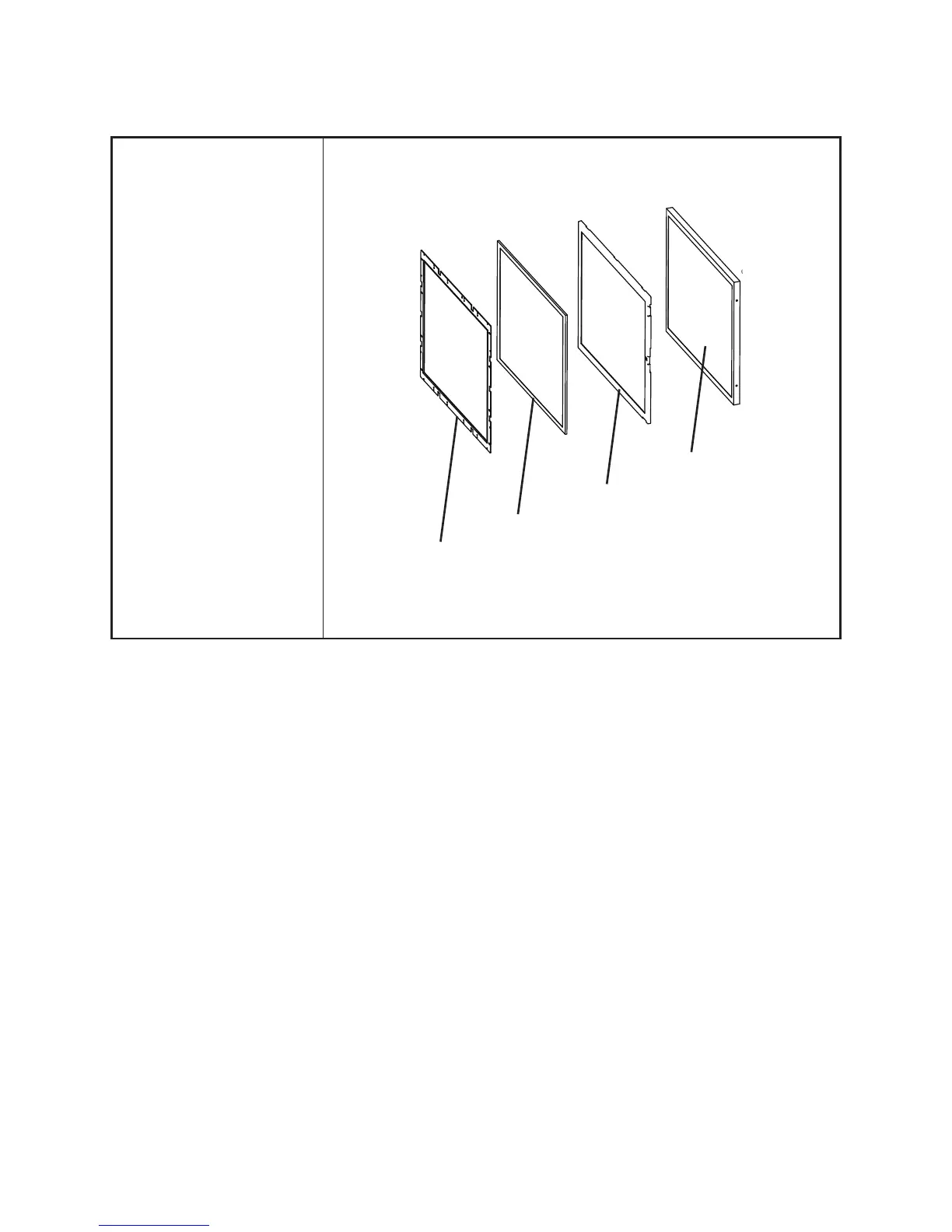

LCD Panel
Touch Cover
Touch Panel
Waterproof Seal
