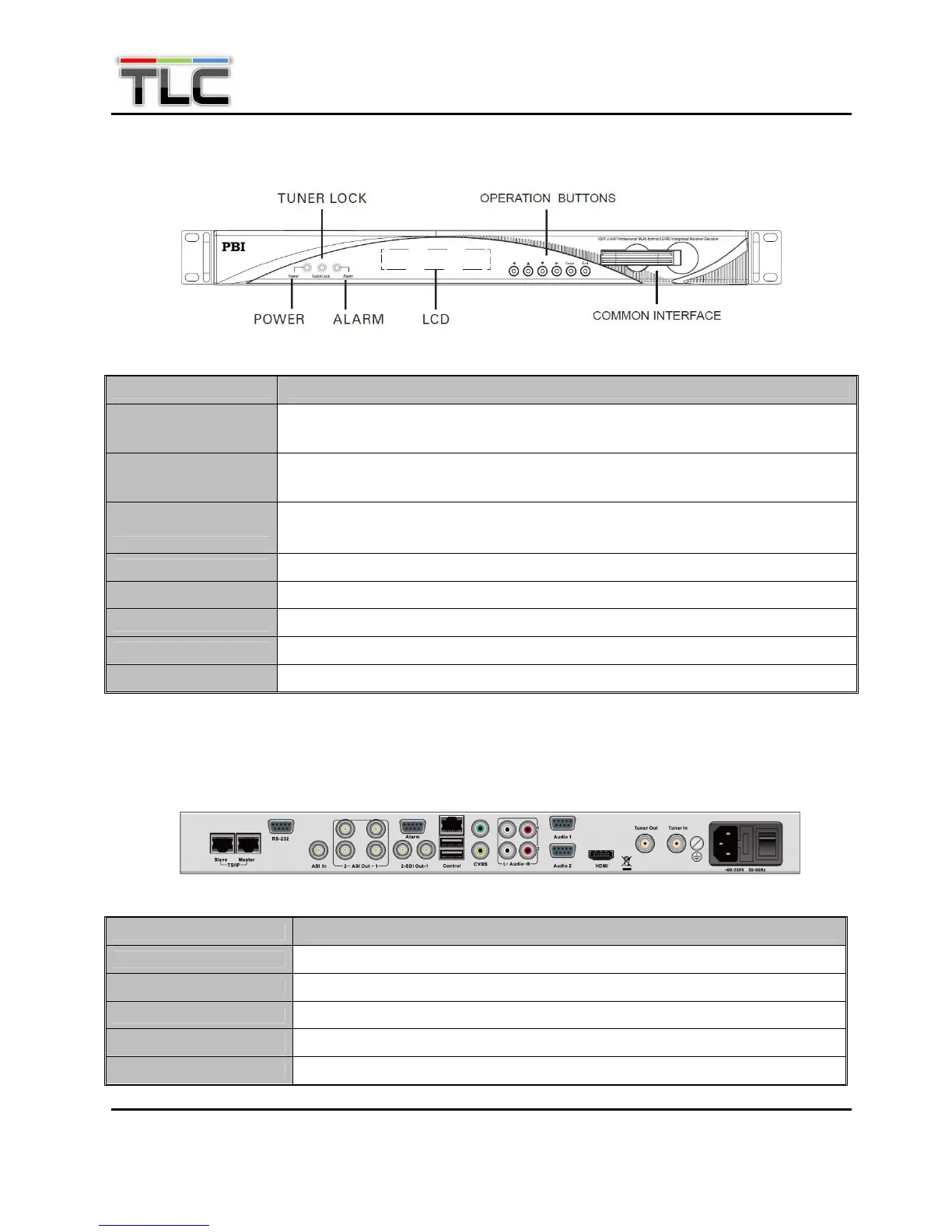

4.1 Front panel
Name Function
LED Power
When turned on, the Green LED indicates that power is available. When turned off, the
power is not available or failed
LED Tuner Lock
LED ON: Tuner input is locked,
LED OFF: Tuner is un- locked.
LED Alarm
LED ON: Alarm or alarms happen to the equipment, For alarm description, please refer
to details in the table 10.
LED OFF: The equipment works properly
LCD Display
Display menus, submenus and its parameters
Cursor Keys
UP, DOWN, LEFT, RIGHT. Used to navigate through the menu system
ENTER key
Confirm a selection then return to previous menu
EXIT Key
Exit and return to previous menu
Common Interface
To insert CI CAM modules, maximum two CI modules
4.2 Rear panel
Name Description
TS/IP(option)
TS over IP input or output
RS-232
Serial port for equipment debug use
ASI OUT2
Group 2 of 2 ASI output ports in mirror
ASI OUT1
Group 1 of 2 ASI output ports in mirror
ASI IN
ASI input port
