P550c Operation Manual
6 Operating the system
www.pearpoint.com | 140
Set-Up
Caution: Failure to follow this procedure may result in severe damage to the crawler and camera system
Strap Assembly:
If using a crawler without the Large Manual Elevator you must fit the relevant crawler strap.
Using two (P354) × M4 x 6 SKT CAP SS or four (P356) × M6 x 8 SKT CAP SS screws (supplied), secure
the strap to the crawler body, as shown below. The recommended torque for the M4 x 6 screws is 2.4Nm
/ 21.2 In-Lbs or 8.0Nm / 70 In Lbs for the M6 x 8 screws.

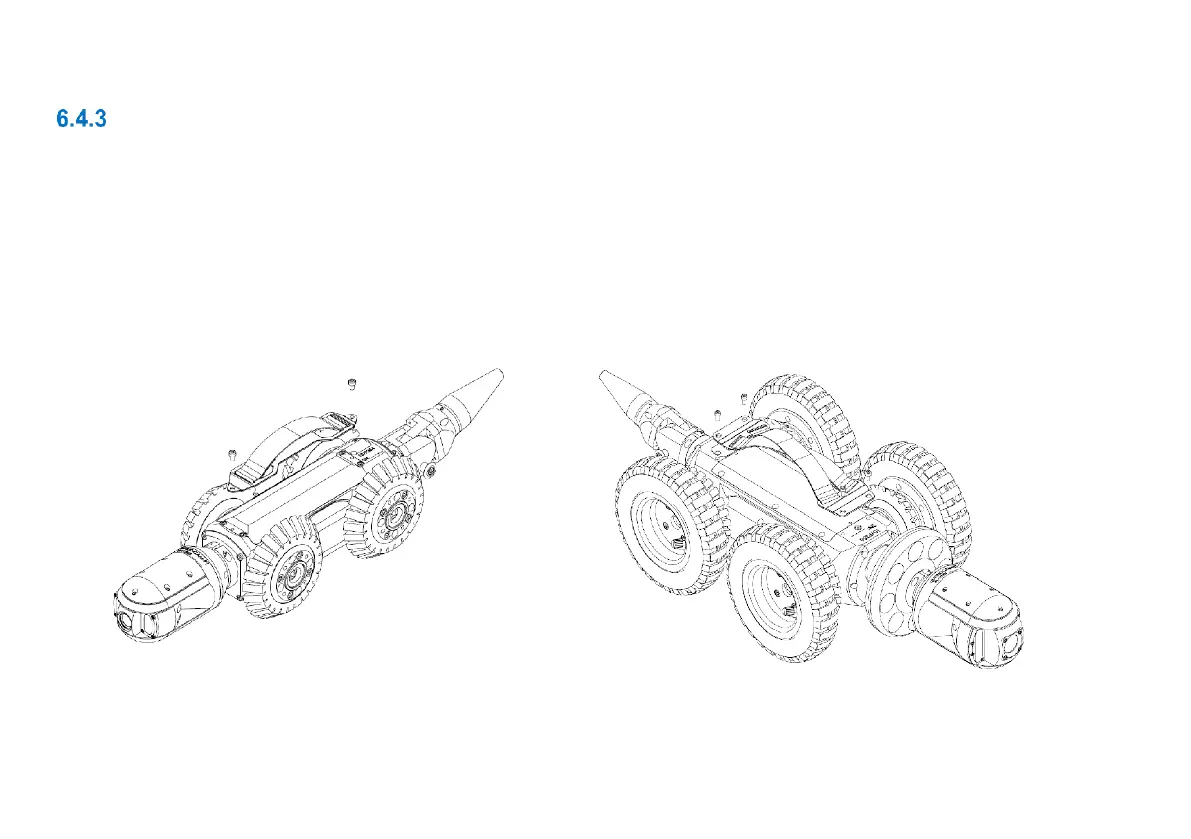

Fig. 6.4 Strap Assembly for P354 and P356.
Caution: Do not over-tighten the screws
