P550c Operation Manual
4 System assembly
www.pearpoint.com | 78
4.6 Cameras and accessories
Warning! When you attach or change the camera, universal flexi or sonde, the internal electrical
connectors are exposed to the elements. Always attach the cameras and accessories in a dry, clean
environment.
Camera
Attach the camera to the pushrod. Then focus the camera to match the pipe diameter:
1 Check the camera lens. Make sure there is no dirt in the lens recess. Then clean the lens with a
lint-free cloth.
2 Fit and hand-tighten the camera to the rod termination socket.

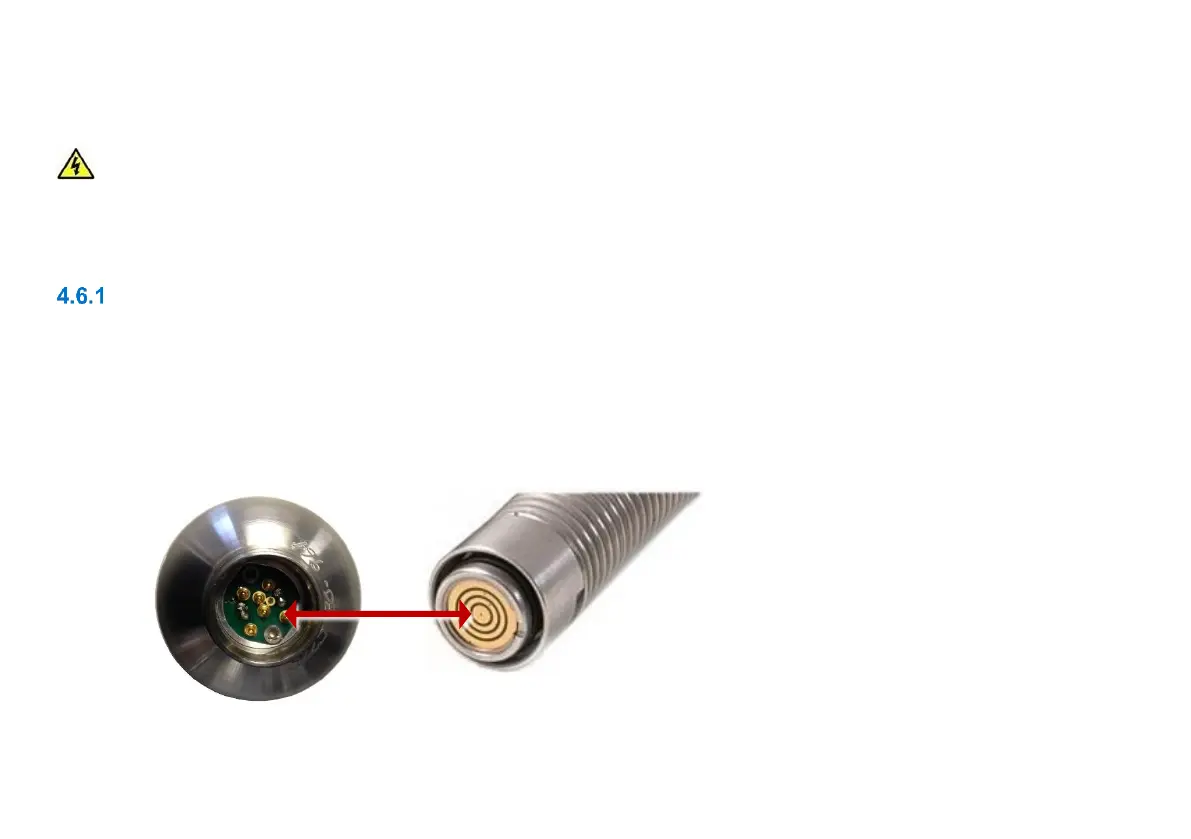

Fig. 4.24: Camera connector (1) attaches to the rod termination socket (2)
