9 Status icons
www.pearpoint.com | 254
9 Status icons

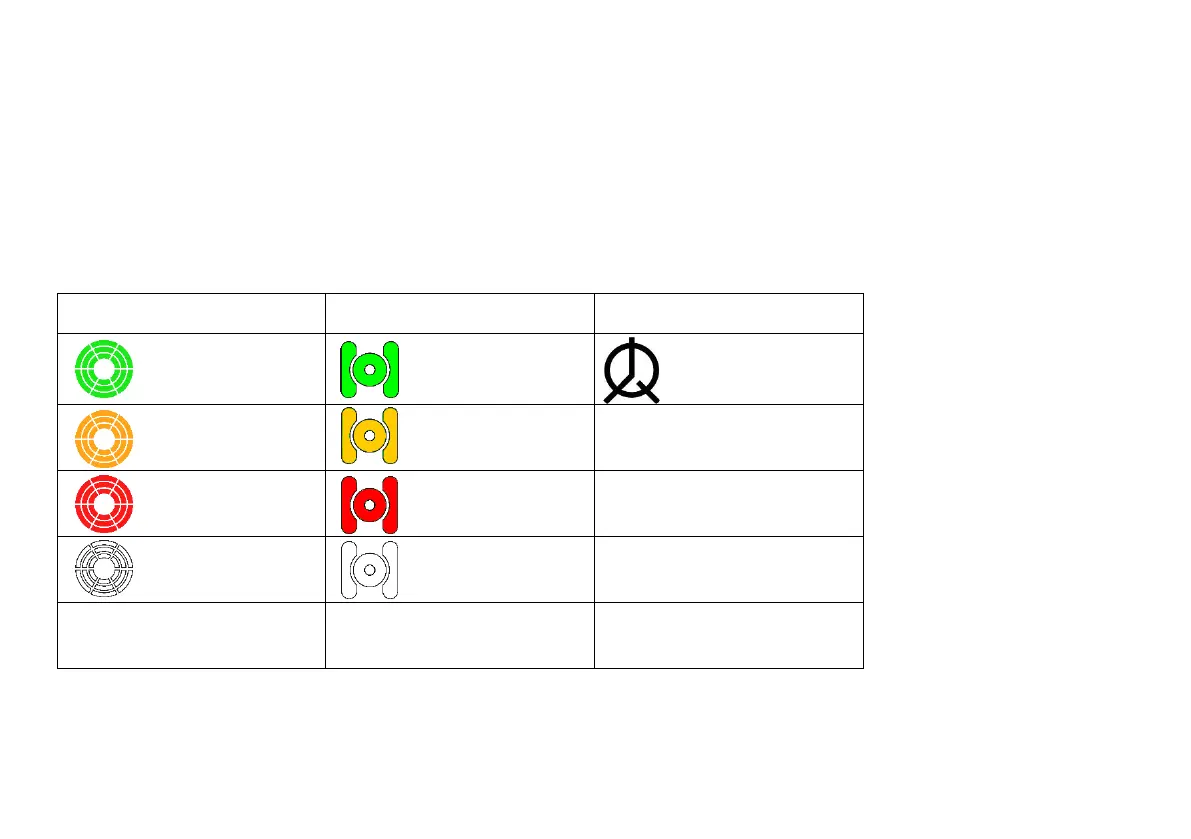

The home screen displays status icons in the top left hand corner, referring to the drum and either the
crawler or pushrod that is connected. In normal operation the drum and crawler icons are green and the
pushrod is white. The different icons displayed, and what they represent, are:
Drum icons
Crawler icons
Pushrod icons
Normal operation
Normal operation
Normal operation
Drum software
being updated
Crawler software
being updated
Pre-stall
condition
Pre-stall
condition
No drum software
detected
No crawler
software detected
Drum not
detected
Crawler not
detected
Pushrod not
detected
