Clock references
Many observations require a clock reference to locate the defect’s position on the pipe wall. For
example, you can observe a circumferential crack extending from 2 o’clock to 5 o’clock:
To help you record these defects accurately, when you type 1 to 12 in a
Clock field, a pop-up observation photo is shown with a superimposed
clock face that highlights your clock references.

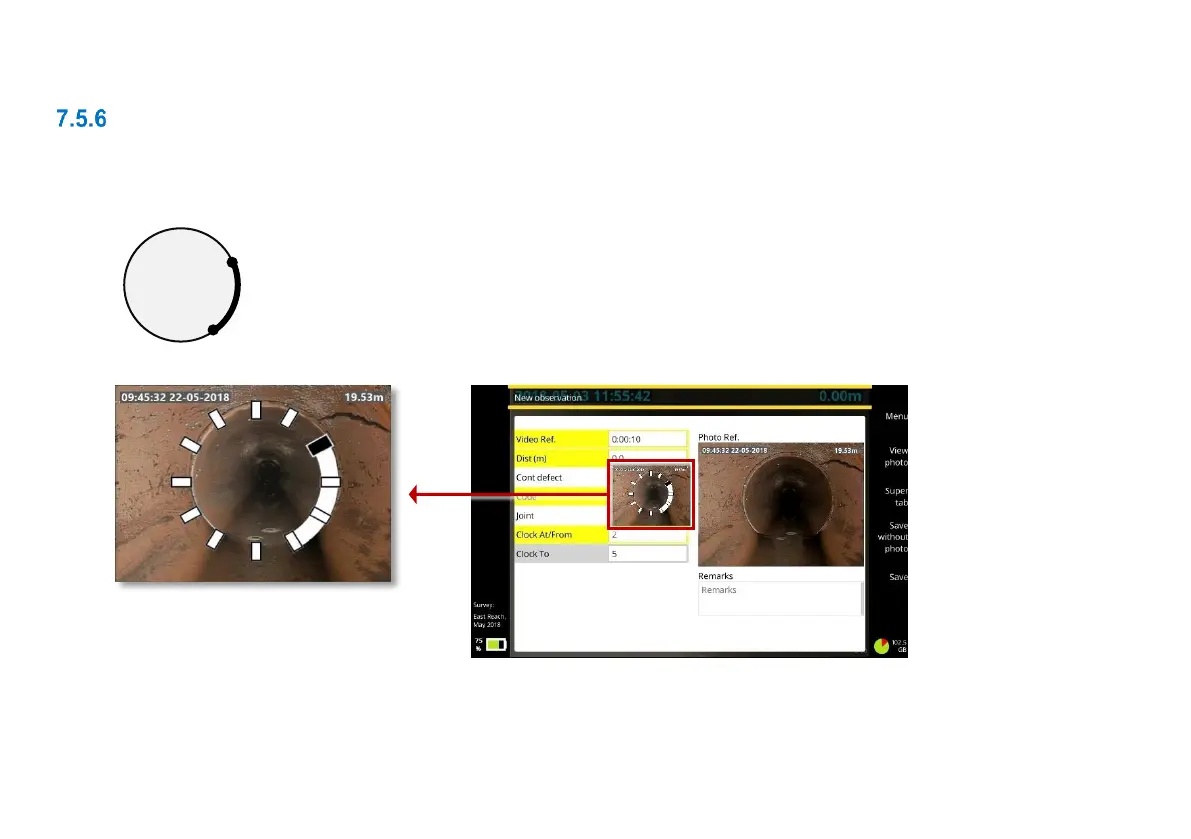

Fig. 7.16: Entering a clock reference. 1 Clock face on pop-up photo illustrates the clock references.
In this example, a circumferential crack is observed from 2 o’clock to 5 o’clock.
