P550c Operation Manual
7 Surveys
www.pearpoint.com | 231
Drain and sewer diagrams
These diagrams are included in MSCC Drain/Sewer survey reports; see page 233 for the full survey list.
1 Start node reference
2 Direction. Shows whether the camera
was pointing downstream (with the
flow) or upstream (against the flow)
3 Finish node reference
4 Observations. For each observation,
the diagram shows the distance and
code, plus any remarks.

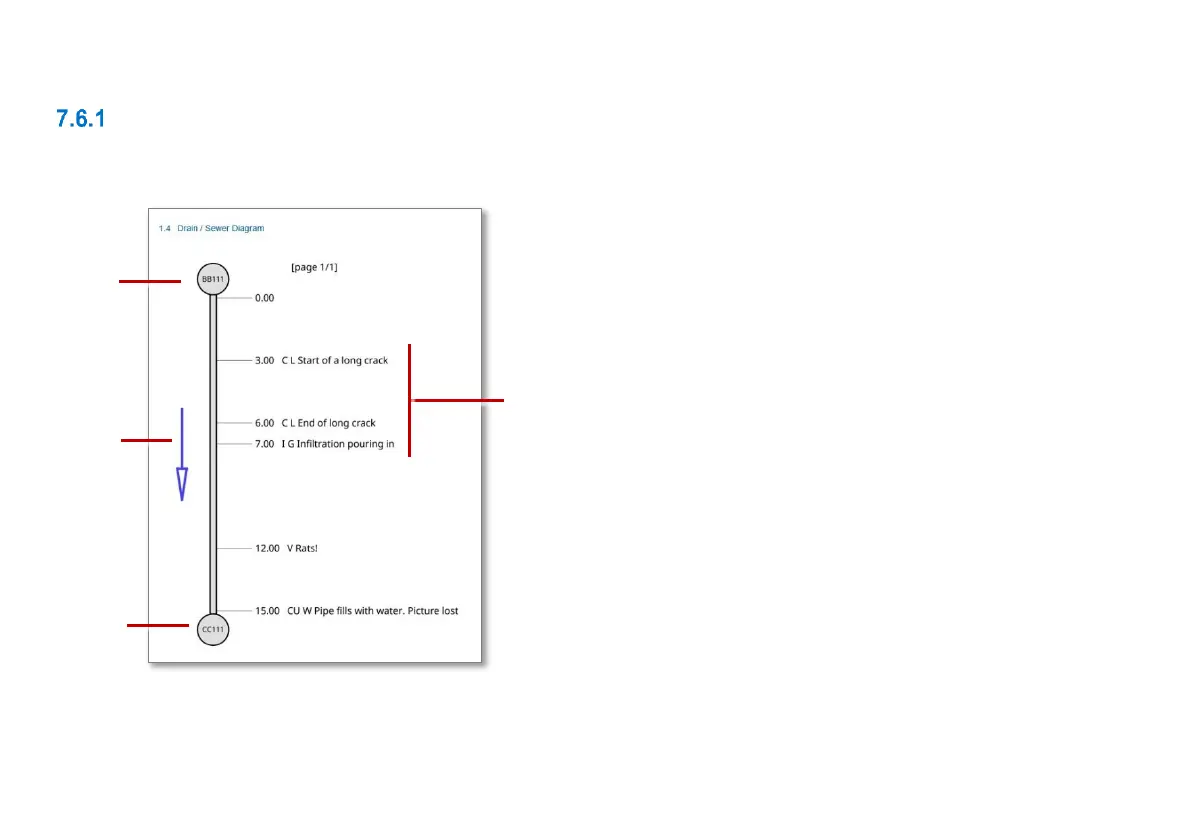

Fig. 7.18: Example drain/sewer diagram for survey report.
4
1
2
3
