P550c Operation Manual
4 System assembly
www.pearpoint.com | 60

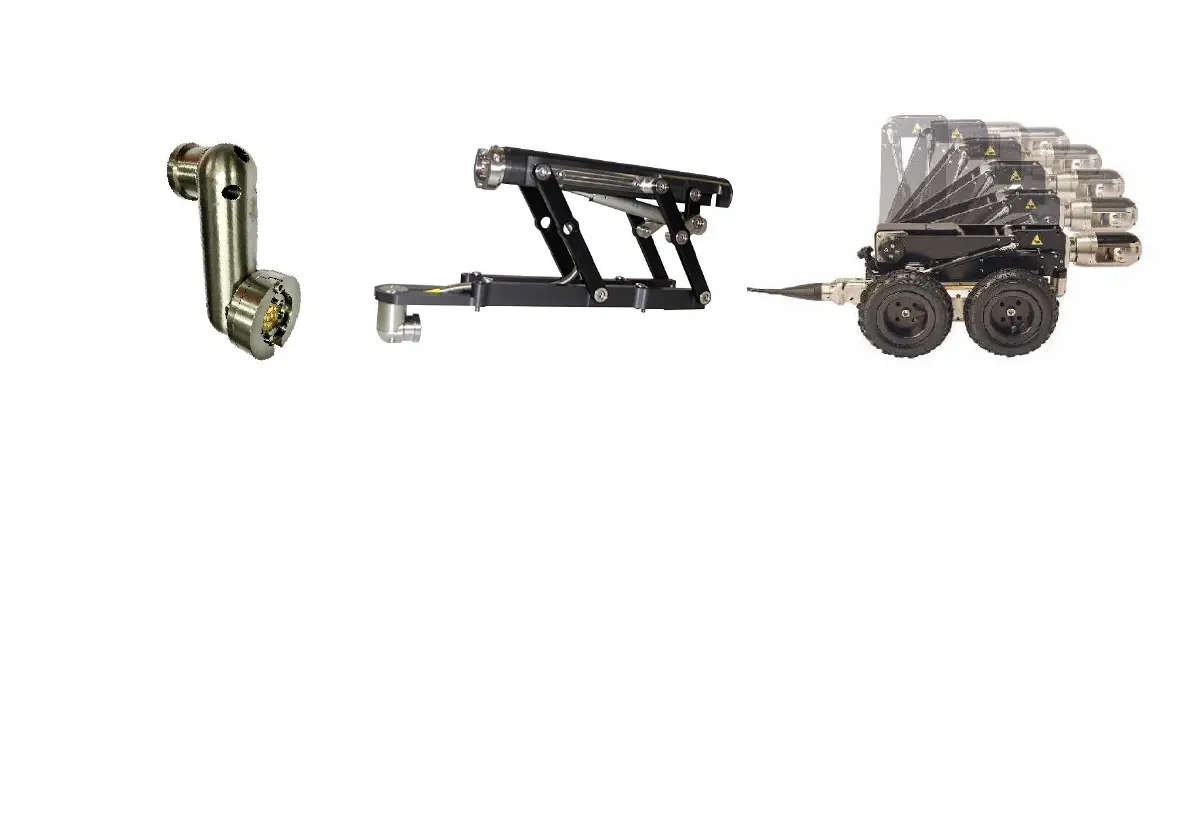

Fig. 4.11: P550 elevators. Left to right – Fixed elevator, Large Adjustable elevator and Powered elevator
Large adjustable elevator
To fit the large adjustable elevator to the P356 crawler, follow these steps.
1 Align the four mounting holes and secure the elevator to the crawler using the four screws provided,
as shown below.
