PEDROLLO DG PED 3 - Application Limits; Characteristic Curves; Technical Data

21ENGLISH |
TECHNICAL DATA
z
Supply voltage ~ 230 V ± 10%
z
Frequency 50/60 Hz
z
Insulation: class F
z
Max absorbed current
– 7.5 A DG PED 3
– 10 A DG PED 5
z
P Maximum absorbed power:
– 1.0 kW DG PED 3
– 1.5 kW DG PED 5
z
Insulation: class IP X4
z
Factory set point 3 bar
z
Fuse 12.5 A (rapid intervention)
APPLICATION LIMITS
• Manometric suction lift up to 8 m
• Liquid temperature between 0 °C and +40 °C
• Ambient temperaturebetween 0 °C and +40 °C
• Max. working pressure 10 bar
• Continuous service S1
• Vertical position running
CLEAN WATER
DOMESTIC USE
CIVIL USE

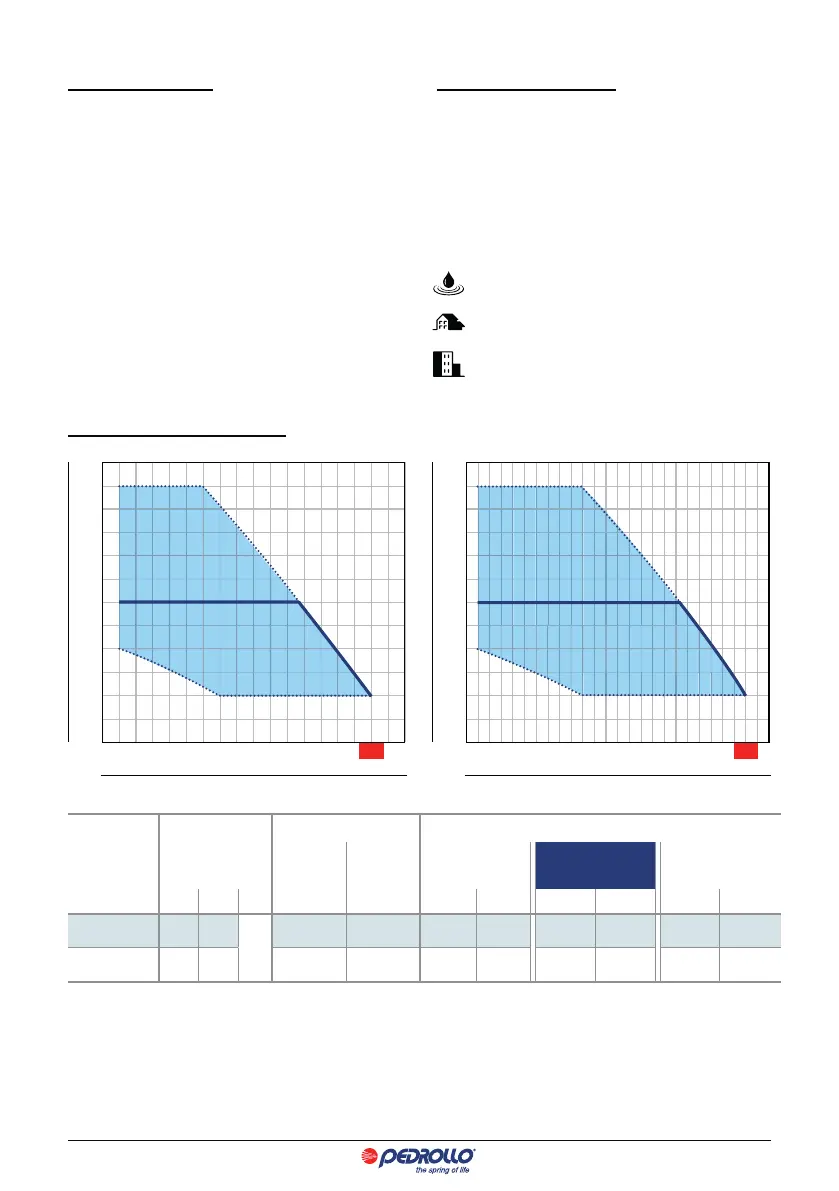

CHARACTERISTIC CURVES
0 1020304050607080 90
0
10
20
30
40
50
60
H (m)
Q (l/min)
DG PED 3
Set point 3 bar
max 5.5 bar
min 1 bar
0 102030405060708090100110120 130
0
10
20
30
40
50
60
H (m)
Q (l/min)
DG PED 5
Set point 3 bar
max 5.5 bar
min 1 bar
MODEL POWER MAX PERFORMANCES PERFORMANCES (ADJUSTABLE SET POINT)
P2 Q H Min. Set Point
Set Point
Taratura Std
Max. Set Point
Single-phase kW HP
c
l/min metres bar l/min bar l/min bar l/min
DG PED 3 0.75 1
IE3
5 – 80 55 – 10 1 35 – 80 3 5 – 58 5.5 5 – 30
DG PED 5 1.1 1.5 5 – 120 55 – 10 1 50 – 120 3 5 – 92 5.5 5 – 50
Q = Flow rate H = Total manometric head Tolerance of characteristic curves in compliance with EN ISO 9906 Grado 3B.
c
Three phase motor eciency class (IEC 60034-30-1)
The performances shown refer to a head in aspiration equal to -1 m(aspiration of 1 m.). If the water level in aspira-
tion is less than the depth of entrance of the pump the performances will be reduced accordingly.
