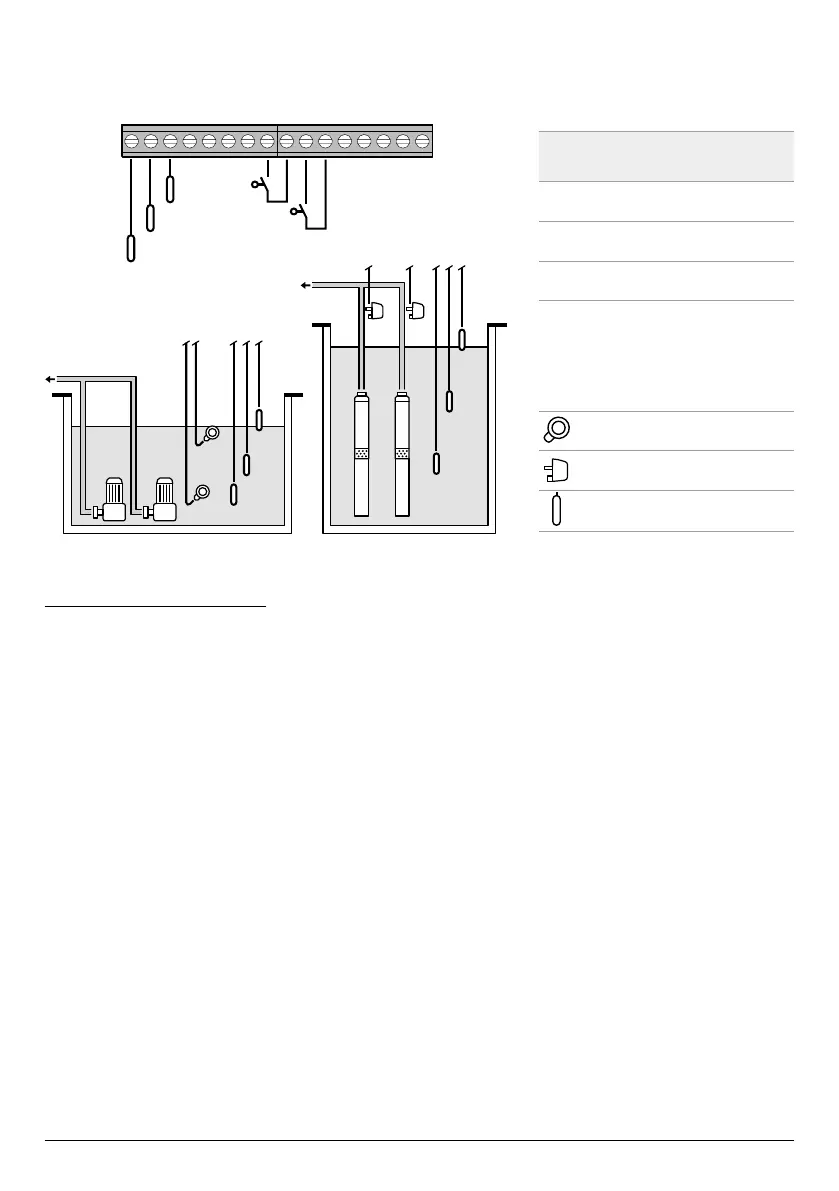

MODE 2 – EMPTYING AND PRESSURISING
G1
COM
MIN
MAX
G2
P1 P2
COM
MIN
MAX
IN1 IN2
G2/P2
COM
COM MIN MAX
MIN
MAX
G1/P1
Factory conguration
Parameter
to be congured
Value
IN1 ON
IN2 ON
LOGIC ALTERN.
Float
Pressure switch
Level sensor
Water detection via level sensor
If the water level is high enough to activate both level sensors, i.e. LOW=1 and HIGH=1, and IN1 is closed with a NO volt-
age-free contact, either one pump or the other (if there are two) starts running according to the alternating logic.
If IN2 is also closed with a NO voltage-free contact, the other pump starts running (if there are two).
If, instead, IN1 is not used, when IN2 is closed with a NO voltage-free contact, either one pump or the other (if there are two)
starts running according to the alternating logic, and the pump that was o starts running few seconds later.
If inputs IN1 and IN2 are enabled at any time by opening a NO voltage-free contact, one or both pumps (if there are two)
are switched o.
In any operating state, if the water level drops enough to deactivate both level sensors (COM-MIN and COM-MAX), i.e.
LOW=0 and HIGH=0, any pumps that are running will be turned o and inputs IN1 and IN2 will be disabled.
Pressing the ESC button shows the input states (IN1 - IN2 and LOW - HIGH) on the alphanumeric part of the display.
