7083-171H • February 23, 2015 www.pelprostoves.com24
*C: Exception for Horizontal Installations:
CANADA INSTALLATIONS: A non combustible fl oor pro-
tections extending beneath the fl ue pipe is required with
horizontal venting or under the top vent adapter with vertical
installation.
USA INSTALLATIONS: A non-combustible fl oor protec-
tion extending beneath the fl ue pipe is recommended with
horizontal venting or under the top vent adapter with vertical
installation.
A non combustible fl oor protector is required.

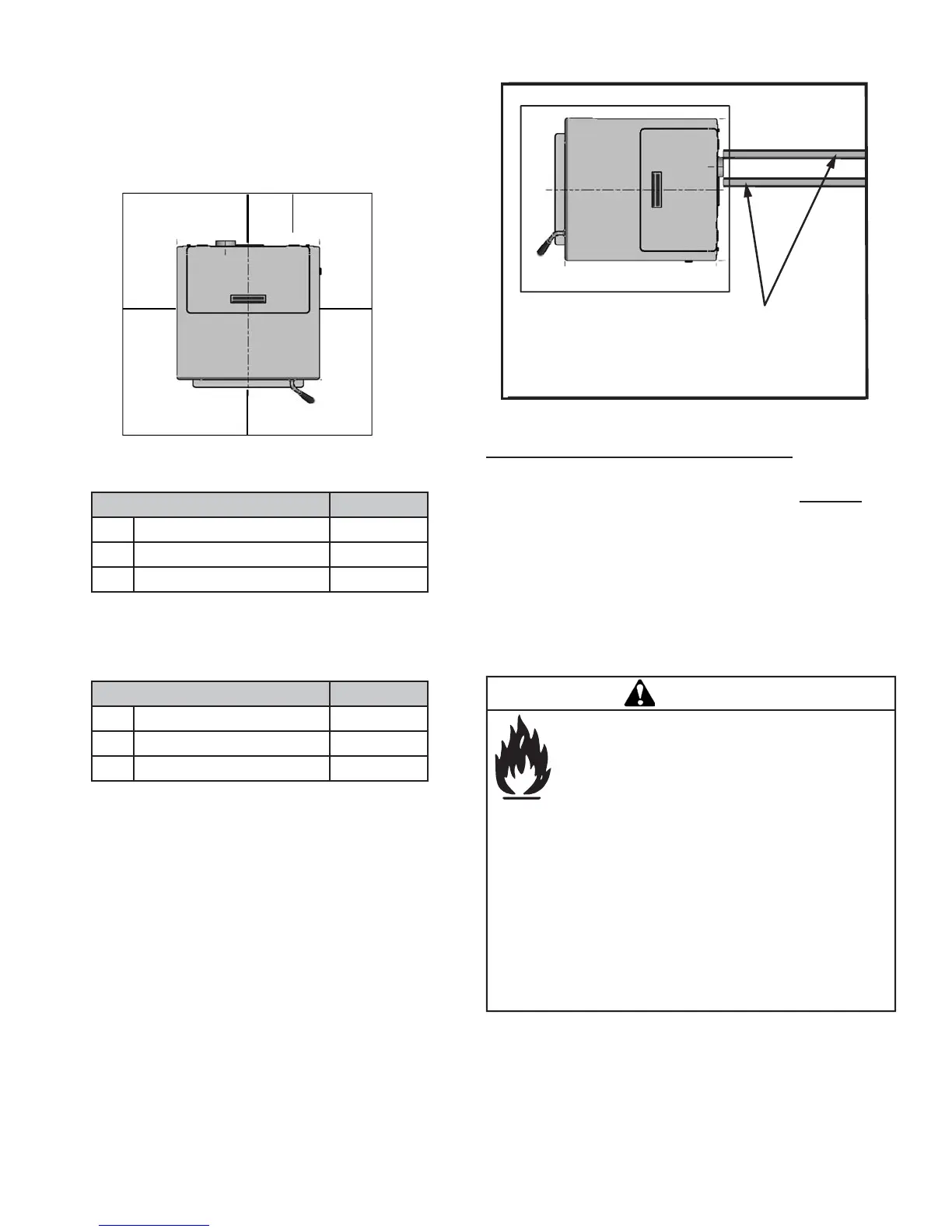

C. Hearth Pad Requirements (UL and ULC)
Use a non-combustible fl oor protector, extending beneath
appliance and to the front, sides and rear as indicated. Mea-
sure front distance “M” from the surface of the glass door.
Hearth Pad Requirements
Inches
K
Sides 2
L*
Back 2
M
Front 6
Hearth Pad Requirements
Millimeters
K
Sides 203
L*
Back 51
M
Front 152
USA Hearth Pad Requirements
Canada Hearth Pad Requirements
If the information in these instruc-
tions is not followed exactly, a fi re
may result causing property damage,
personal injury, or death.
• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• Do not over fi re - If heater or chimney con-
nector glows, you are over fi ring. Over fi ring
will void your warranty.
• Comply with all minimum clearances to com-
bustibles as specifi ed. Failure to comply may
cause house fi re.
Must extend 2 inches (51mm) beyond each
side of pipe (shaded area)
L*
K
M
K
WARNING
