F. Through The Wall
Horizontal termination cap must be a minimum of 6 inches.
(152mm) from the wall. Approved for mobile home instal-
lations. Must use 3 or 4 inch (76-102mm) “L” or “PL” listed
pellet venting or Listed double wall pipe and an authorized
Outside Air Kit in mobile homes.
In Canada, where passage through a wall or parti-
tion of combustible construction is desired, the
installation shall conform to CAN/CSA-B365
NOTICE:
Please note that while the minimum clearance for the
termination cap is 6 inches (152mm) there is the pos-
sibly of soot build-up around the termination area. If this
occurs we suggest to move the termination further away
from the house to prevent it. The suggested minimum is
12 inches.
Straight Out
45 Degree
DO NOT DOWNWARD VENT.
The following will occur:
• The appliance will not vent properly
• Smoke spillage in the house
• Excessive sooting
CAUTION
Wall
Thimble

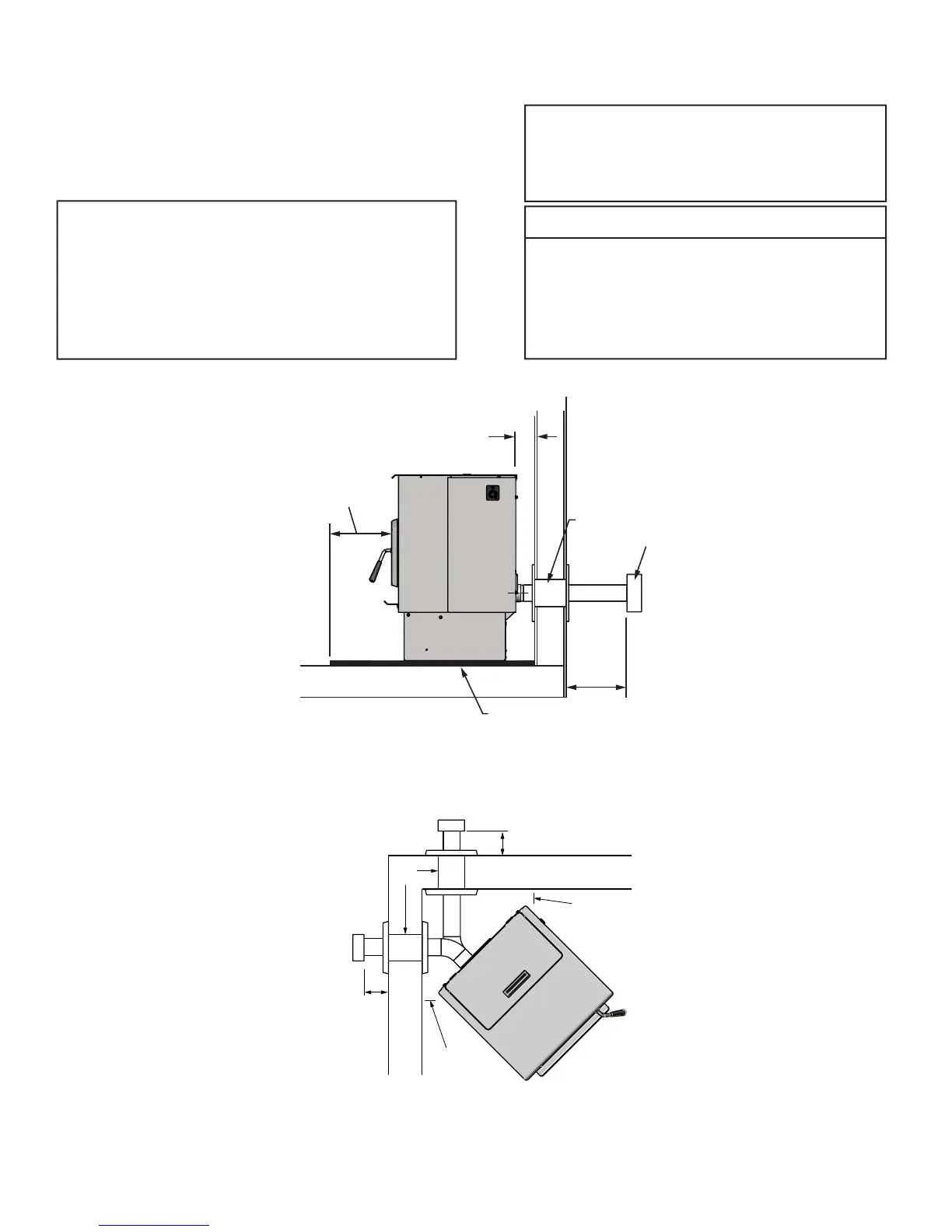

Illustration shows venting going in both directions.
Choose which one is best for your installation.
3 in. (76mm)
Minimum
3 in.
(76mm)
Minimum
6 in (152mm) Minimum
6 in (152mm)
Minimum
6 in.
(152mm)
Minimum
Non-combustible Hearth Pad
Wall
Thimble
Horizontal
Termination
Cap
2 in.
(50.8mm)
Minimum
6 in.
(152mm)
Minimum
From Glass
