Pelpro PP60 - Vertical Interior Venting; Through-Wall and Horizontal Venting; Venting into Existing Chimney

www.pelprostoves.com 7083-171H • February 23, 2015 27
We strongly recommend a minimum of 60 inches
(1.5m) vertical, however above the eave is preferred.
Both installations are approved for mobile home installations.
Must use 3 or 4 inch (76 to 102mm) “L” or “PL” Listed pellet
venting or Listed double wall pipe and authorized Outside
Air Kit in mobile homes. Single wall pipe is approved for
residential installations only.
Air Clearance to Pipe:
This appliance was tested with standard 3 inch (76mm) Listed
pellet vent.
Pellet pipe manufacturers Listed reduced clearance pipe may
be use for reduce clearance from 3 inch (76mm) air clearance
to no less than 1 inch (25mm) air clearance to combustibles
for approved Listed pellet pipe.
Follow pipe manufactures listed air clearances to com-
bustibles and installation instructions for all reduced air
clearances installations.

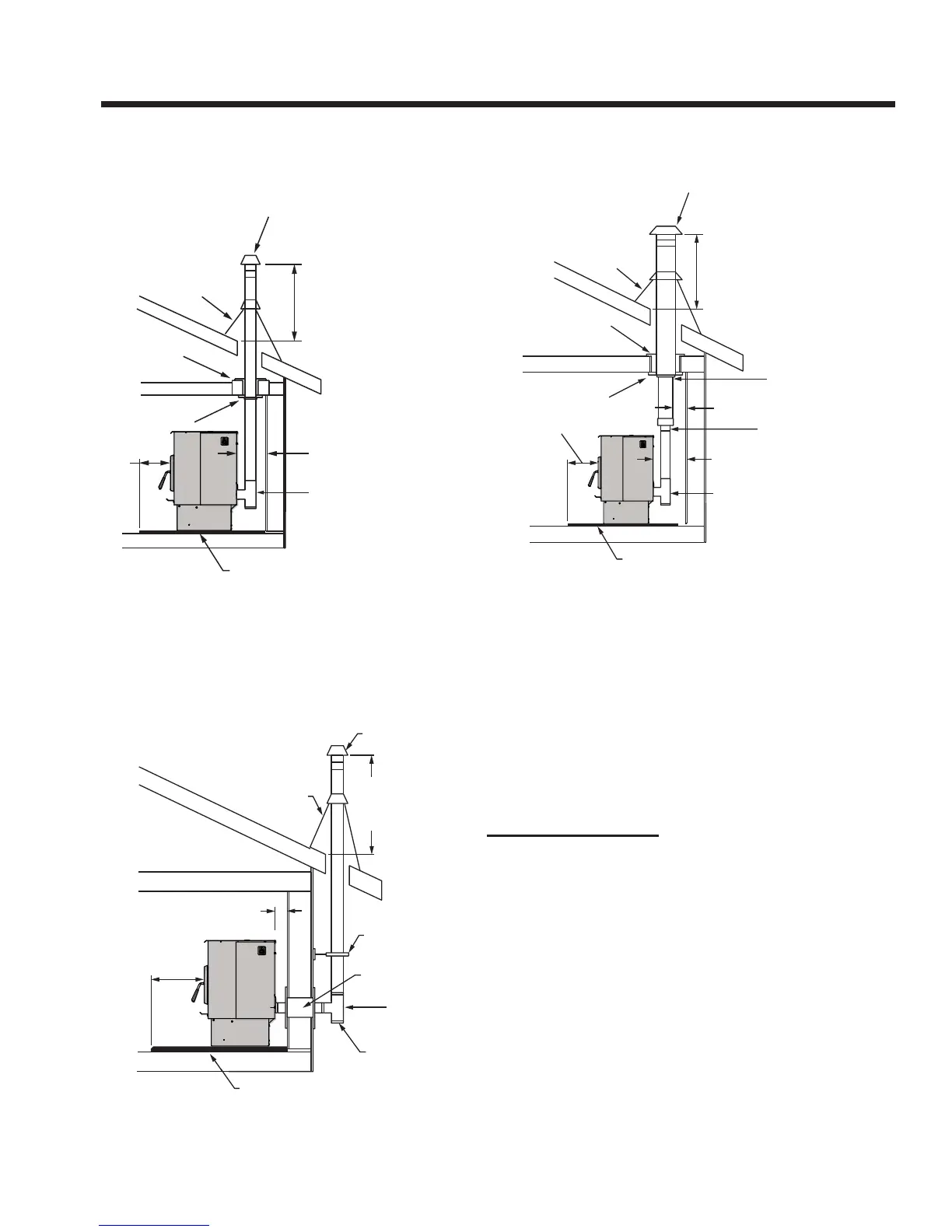

C. Vertical into Existing Class A ChimneyA. Vertical - Interior - Typical Installation
PREFERRED METHOD #1
B. Through The Wall & Vertical - External -
Horizontal
PREFERRED METHOD #2
Non-combustible Hearth Pad
Clean-out Cover
Tee
Wall Thimble
Support
Bracket
Every 60 in.
(1.5 m)
12 in.
(305mm)
Minimum
Rain Cap
Flashing
2 in. (50.8 mm) Minimum
6 in. (152 mm)
Minimum
Firestop
Flashing
Rain Cap
Non-combustible Hearth Pad
Follow vent manufacturer’s
clearances for reduced clearances
12 in. (305mm) Minimum
Ceiling Support
6 in. (152mm) Flue
Connector
6 in. (152mm) Class A
Chimney Connector
Adapter
6 in.
(152mm)
Min.
Follow pipe manufacture listed cleara
n
Clean-out T
6 in.
(152mm)
Min.
Clean-out T
Firestop
Flashing
Rain Cap
Non-combustible Hearth Pad
12 in. (305mm) Minimum
Ceiling Support
Follow pipe manufactur
e
listed clearance
9 Venting Systems
