Operators Manual Model PT2000/H Series Gas Monitor Rev 2. January 2014
7.2 Installing Antenna
Each Ultra1000 Wireless Detector is supplied with an Antenna. For a short Line of sight
distance (up to 1500 Meters ) a dipole Antenna attached on top of the Sensor
Enclosure may be used. However, if the detector is installed at a distant from the main
controller a directional Yagi Antenna shall be used.
7.2.1 Installing Dipole Antenna

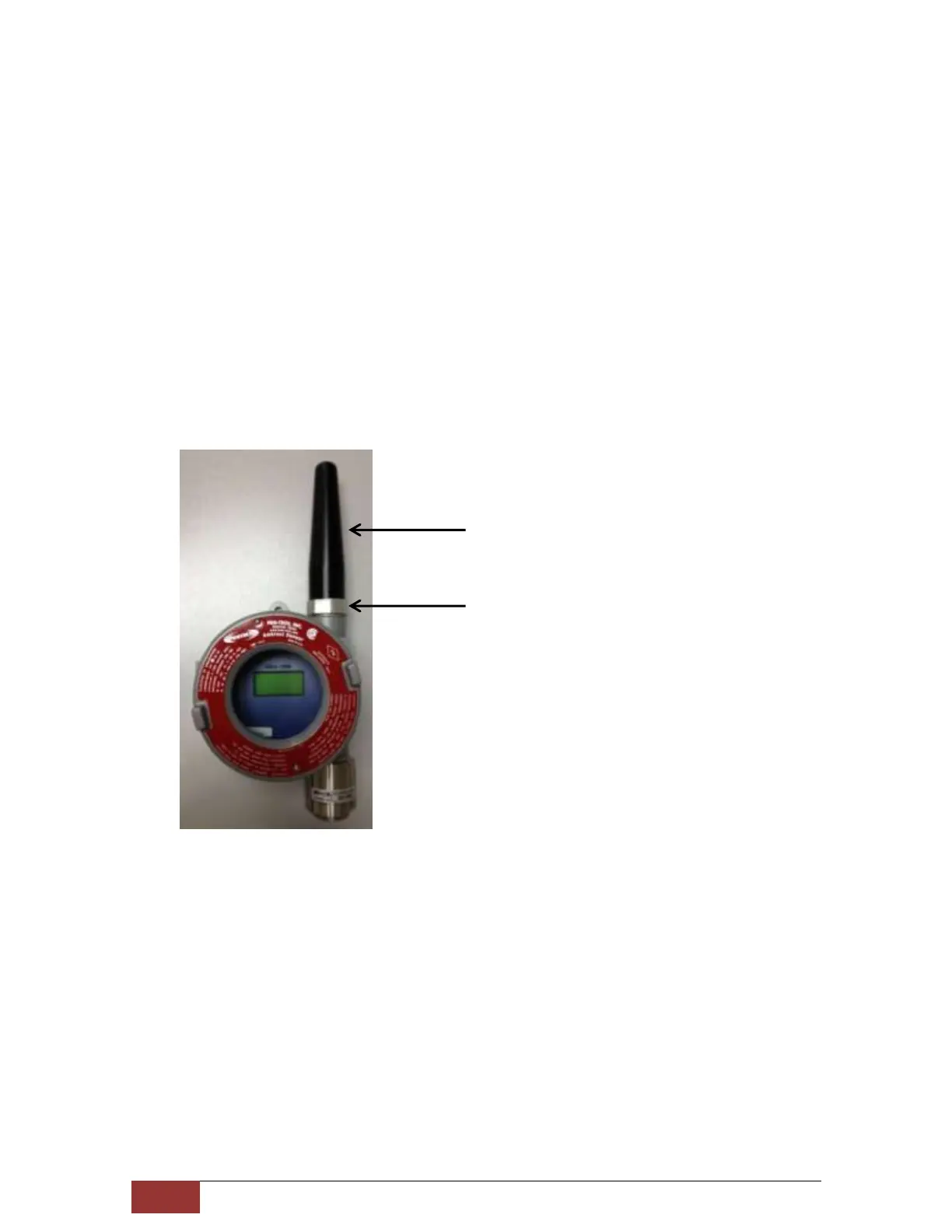

Attach the Dipole antenna on SMA Connector (gold plated) on Antenna Mount
Assembly .See Figure below. Do not over tighten the antenna
Install black polycarbonate protective cover onto the Antenna mount assembly
Polycarbonate Antenna Protective Cover
