Operators Manual Model PT2000/H Series Gas Monitor Rev 2. January 2014
7.2.2 Installing Yagi Directional Antenna
A Yagi Directional antenna must be used for long distance communication or
when the line of sight from the detector to antenna is not clear. The antenna
must be raised higher on the pole and connected to the Antenna mount
assembly of the sensor via a coax cable.

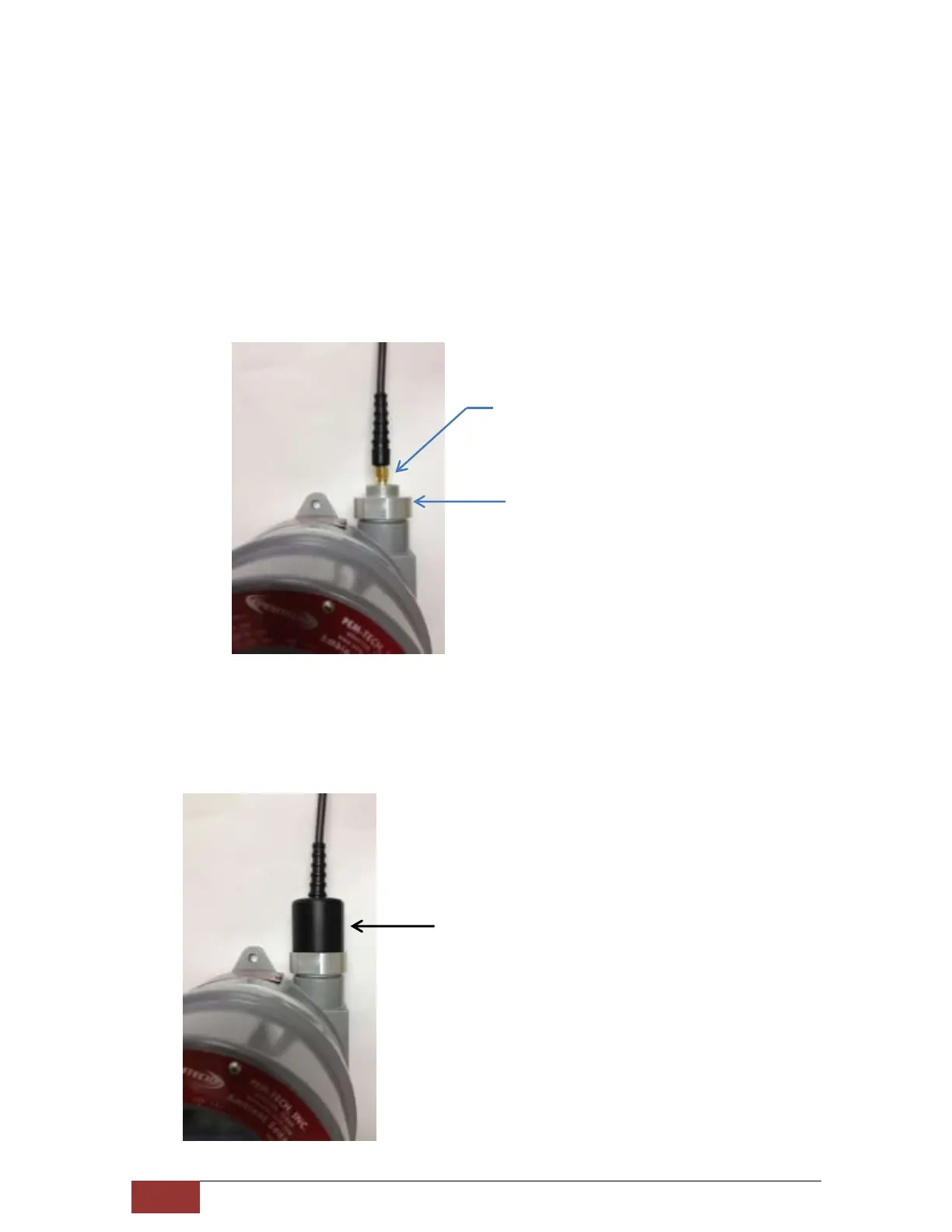

The N-Male connector on the coax cable attaches to the Yagi Antenna and the
Female (RPSMA Gold) connector is to be connected to the antenna mount
assembly on the detector. See Figure below
Slip the short protective cover (provided with the coax cable) onto the
Antenna mount assembly as shown in figure below. The protective cover
restricts the horizontal cable movement and thus avoids snapping of the
connector on the Antenna Mount Assembly.
Female RPSMA Connector on Coax Cable
Protective Cover on Antenna Mount Assembly
