Operators Manual Model PT2000/H Series Gas Monitor Rev 2. January 2014
 Install the Yagi Antenna to the pole using the supplied pole mount bracket.
 Connect the short cable-connector on the antenna with the N-Male connector
of the coax cable.
 
 

    






(4) Pan Head Screws
Bottom exiting cable
(2) Open Drain
on bottom
(2) Drain Hole Plugs
Pole Mount Yagi Antenna 2.4 GHz
1 OF 1
1
2013140
Coax Cable to Sensor
Antenna Mount Connector
07/19/2013
RM

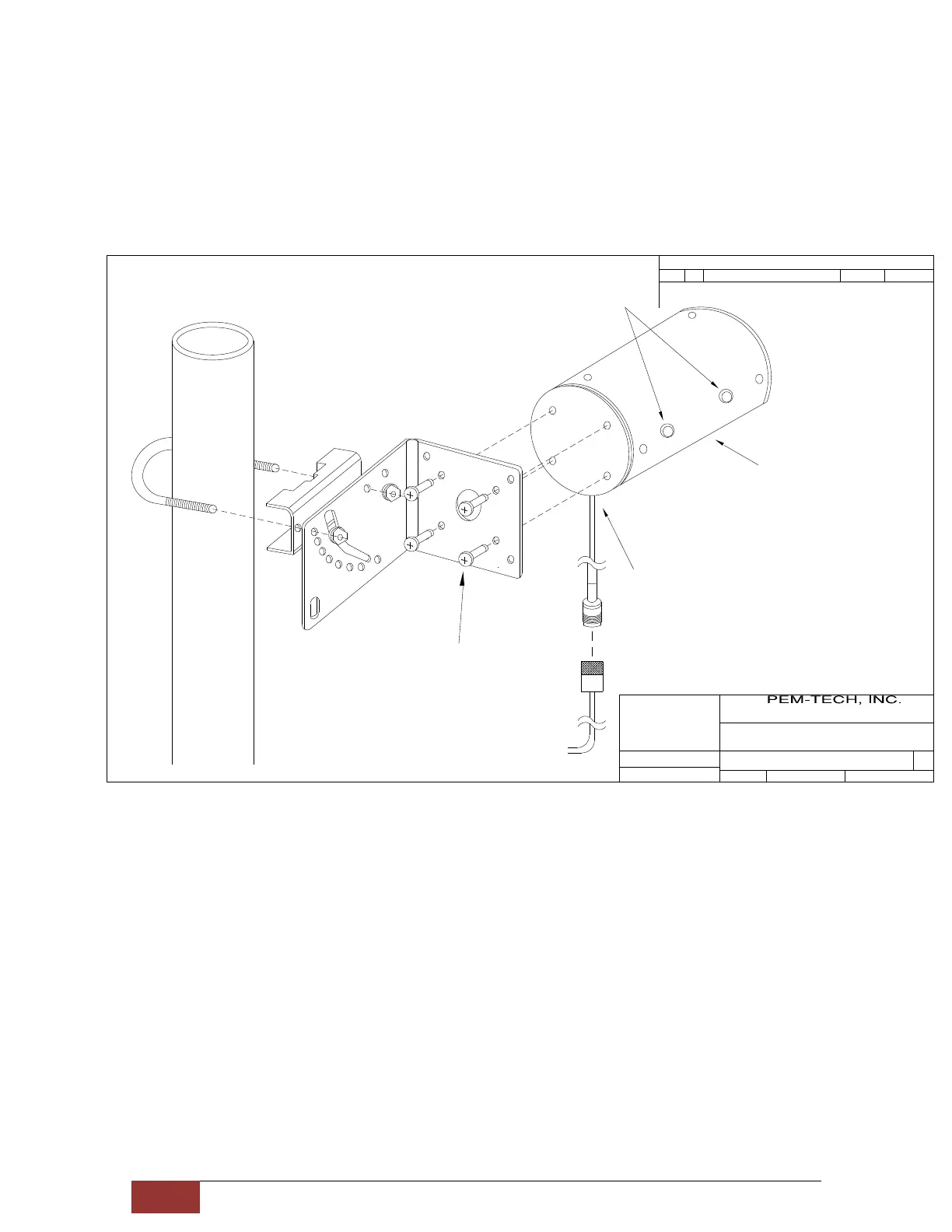

Figure 9. Installing Yagi Directional Antenna for Detectors
