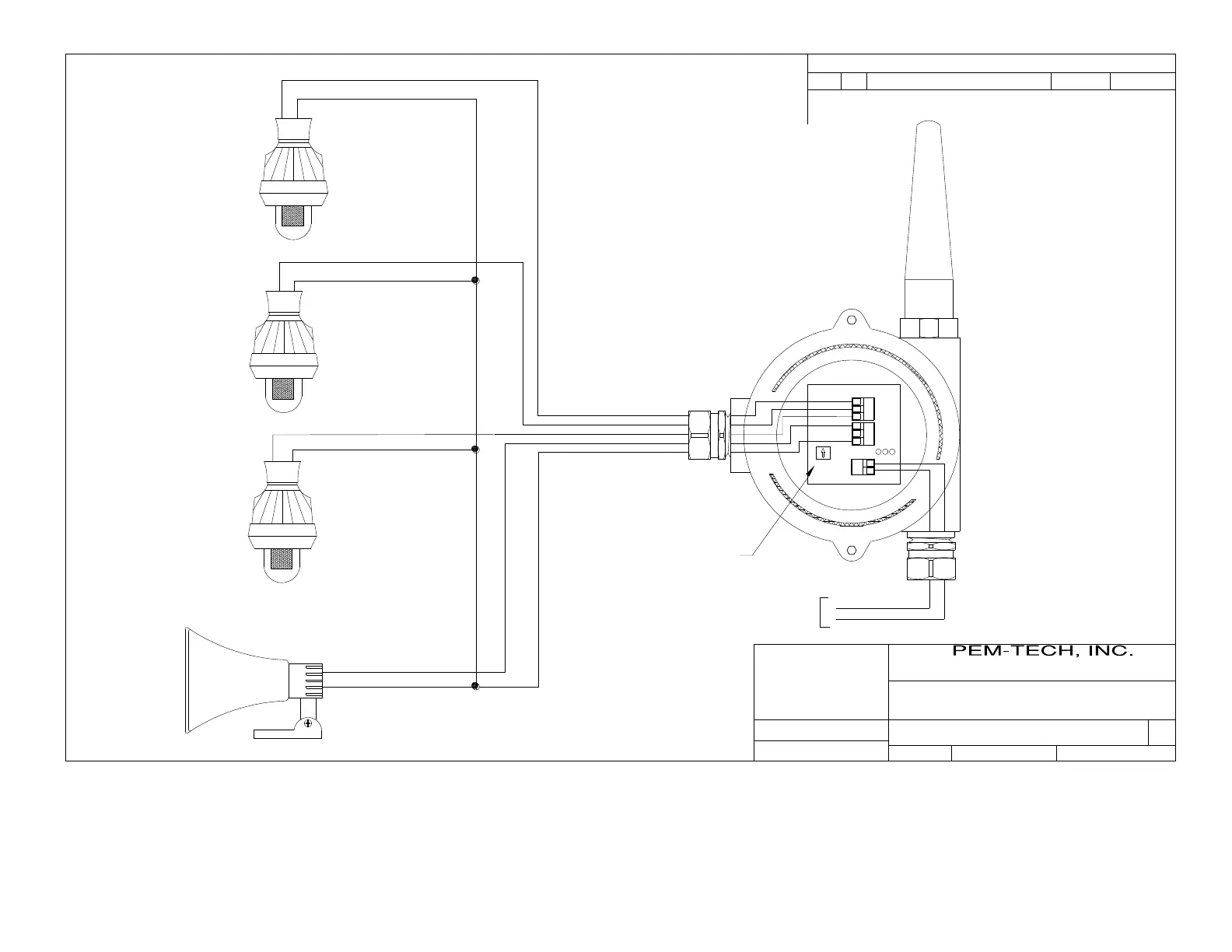

PEMTECH PT2000/H Series - Page 53

 
 

    






Visual Alarm 1
Visual Alarm 2
Visual Alarm 3
Audible Alarm 4
A1
A2
A3
A4
NC
RET
GND
+24 VDC
(A1)
24 VDC VISUAL & AUDIBLE DEVICES
(A2)
(A3)
(A4)
+V
RETURN
RETURN
RETURN
+V
RETURN
+V
+V
B2013138
1
1 OF 1
07/19/2013
RM
Zone
+V
Gnd
24 VDC
Power Input
Rotary Switch to
Selet Zone ID
