Pendix eDrive - Wiring diagram

18

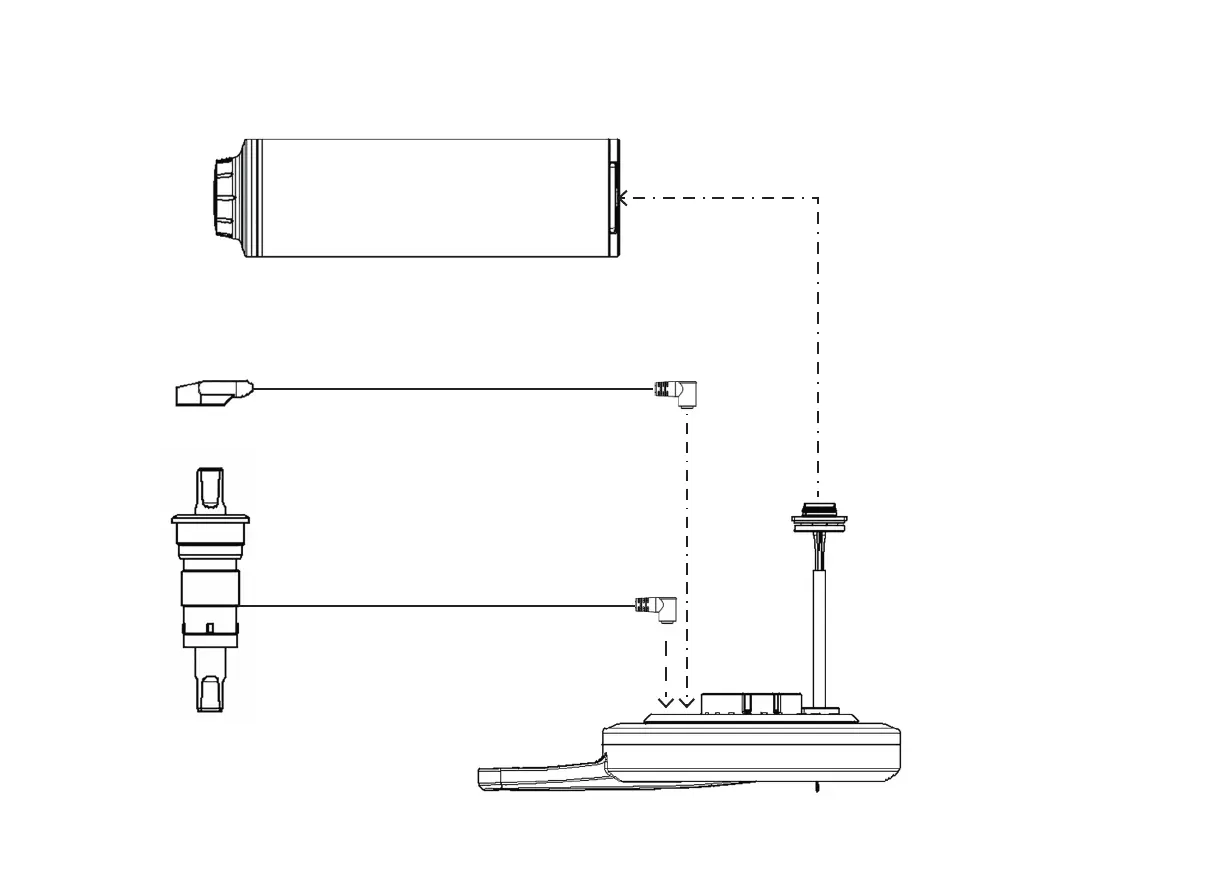

12. Wiring diagram
Battery Li-Ion
(lithium-ion)
Wheel speed
sensor
Connection wheel
speed sensor
1: -
3: Signal (blue)
4: GND ground (black)
Bottom
bracket
240 mm
290/580/1580 mm
250/500/950 mm
Bottom bracket motor
Integrated control system
Connection battery
Rosenberger
1: CANH (green)
2: CANL (blue)
3: Interlock (orange)
4: Interlock (brown)
5: DC + 48 V (red)
6: DC – (black)
Connection electronic
bottom bracket
1: Signal (brown)
3: +12 V (blue)
4: GND ground (black)
