EN
7
Bottom bracket tool
le and right side
1/2“ connection

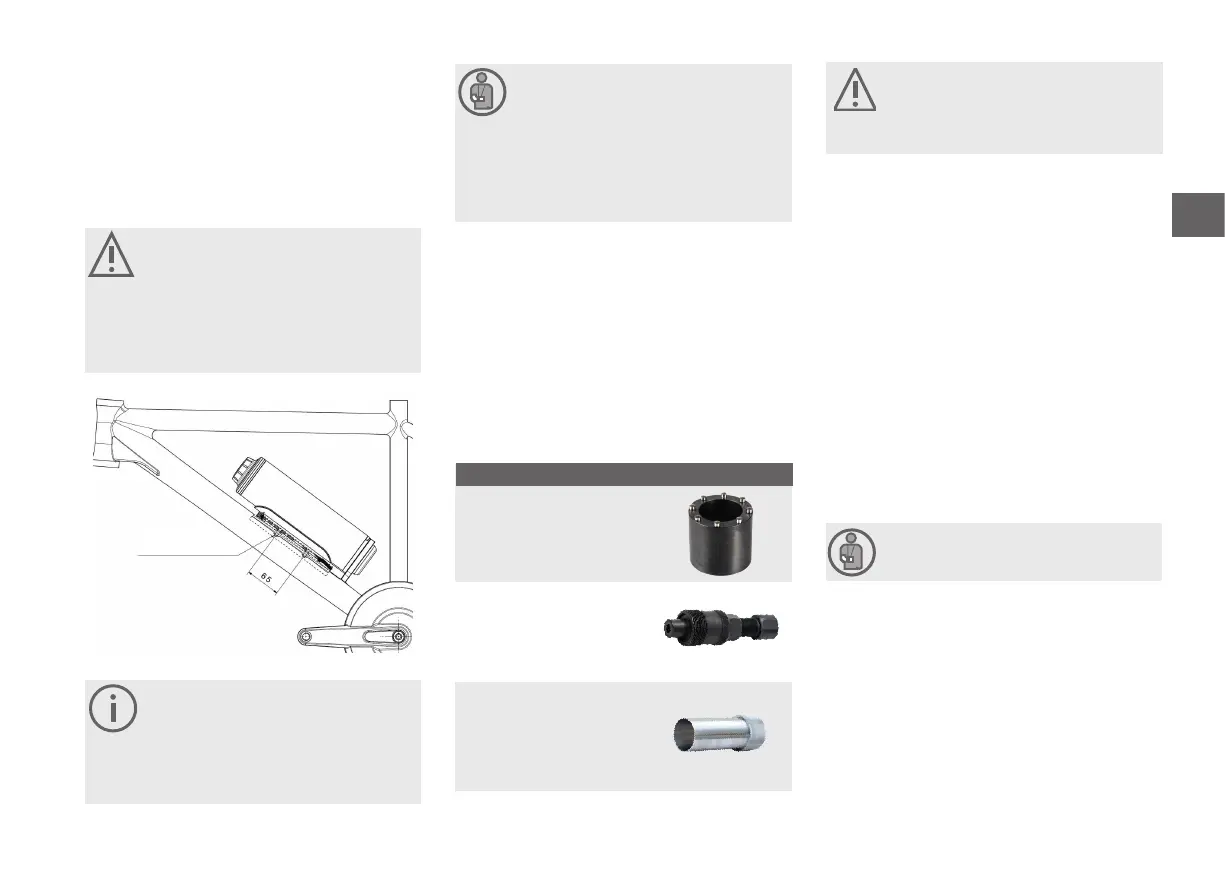

Checking the position of the battery holder
The holder for the battery should be attached either to the
down tube or the seat tube. Already available attachment
holes for a standard drinking bottle holder may be used for
attachment of the battery holder. An alternative mounting
option, if there are no screwed fixing points, is the Pendix
clamp mount. It is not contained in delivery scope of the
standard set, but can be ordered at Pendix with Art.no.
A1C.904.021.
Pendix suggests to use the existing holes in the
frame for the installation. The drilling of new
holes can weaken the frame: it is a decision that
must be made by the technician.
Pendix can assume no responsibility for the safe-
ty / duration of new attachments and resultant
possible frame damage.
In the case of a full suspension frame, neither bat-
tery nor battery holder may come into contact
with any other parts of the construction due to
suspension movements.
Check to see that suicient cable length is avail-
able for a correct and safe attachment of the bat-
tery holder.
6.3 Special tools required
In order to mount the components, the following special
tools are necessary and can also be ordered from Pendix.
Mounting the Pendix eDrive
Crank puller
Assembly help bottom bracket
Disassembly of already mounted components
Before you start installing the Pendix eDrive, you must re-
move the following parts from the bicycle:
• Crank on the le
• Chain guard, if available
• Crank on right (including chain wheel)
• Bottom bracket
Proceed as follows:
1. If the pedals are to be used again, you must remove
them as first step.
2. Remove the le crank arm.
3. Remove the chain guard, if present.
4. Remove the right-hand crank arm including the chain
wheel.
5. Now take out the bottom bracket.
Please also use the online installation video. Access data you
get from Pendix.
Modern bicycle technology is high tech! Working
in this field demands special training, knowledge,
experience and special tools as well!
If your frame has no thread for a bottle holder:
Please use the Pendix clamp mounts. Do not
drill holes in very light / thin-walled frames and
especially frames made of composite materials
(carbon frame)! In this case, please do not use
clamp mounts. Drilling holes in such cases can
cause broken frames, falls and severest injuries.
We strongly recommend to use a dynamometric
key for mounting the components in order to
make sure that the screws are tightened with the
specific torque.
Checking the gear hub
If you want to use a gear hub with the Pendix eDrive, please
make sure that the circuit for the torque of 65 Nm is acti-
vated. If necessary ask the dealer or the manufacturer of
the gear hub about it. If you want to reduce the maximum
torque, simply use the Pendix.bike PRO App to do so.
Battery mounting
2x M5 Distance 65
