4.5 Nm +/- 0.5 Nm
If your frame has no thread for a bottle holder:
Please use the Pendix clamp mounts. Do not
drill holes in very light / thin-walled frames and
especially frames made of composite materials
(carbon frame)! In this case, please do not use
clamp mounts. Drilling holes in such cases can
cause broken frames, falls and severest injuries.
First screw the lower battery holder screw into
the battery holder to fix it to the bicycle frame.
Fix the accu strap with the upper battery holder
screw between the battery holder and the frame.
7.3 Battery holder
To attach the ePower battery holder to the bicycle, use the
threads for a bottle holder if present. You can freely choose
its position on the frame by eectively using the available
holes in the battery holder, but make sure that that you have
enough space below the holder so that, later on, you have
room to pull the U-bend out for the lock of the battery in the
one direction and room to remove the battery in the other
direction.
An alternative mounting option, if there are no screwed fix-
ing points, is the Pendix clamp mount. It is not contained
in delivery scope of the standard set, but can be ordered at
Pendix with Art.no. A1C.904.021.
Where a full suspension frame is present, the bat-
tery and the battery holder must at no time come
into contact with other parts of the bicycle struc-
ture. Make sure there is suicient cable length to
attach the battery holder correctly and safely (to
compensate for suspension movements).

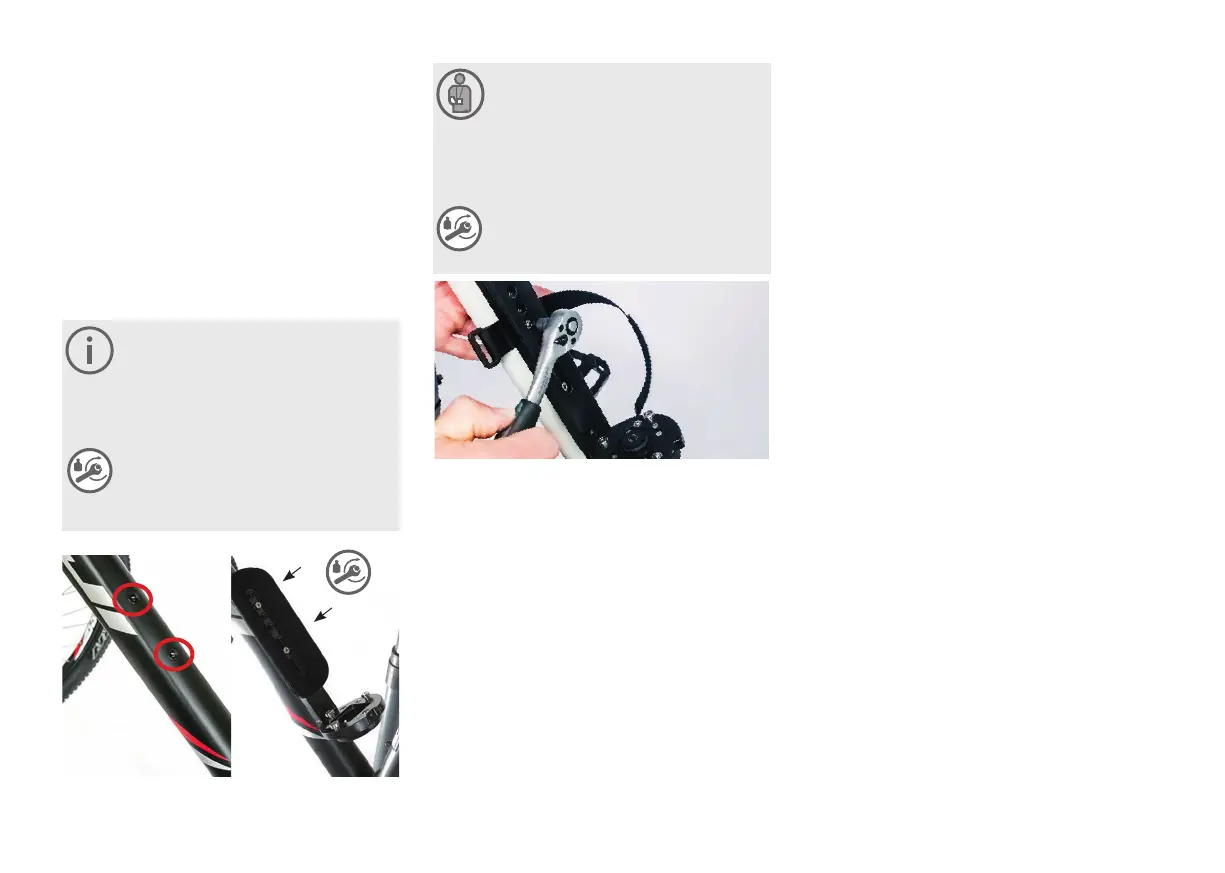

Screw the battery holder on using the two sup-
plied M5 screws to a tightening torque of 4.5 Nm
+/- 0.5 Nm. Use a screw locking (mid-strength)
with both screws.
Installation of the accu strap
