Pendix eDrive - Overview components

EN
5

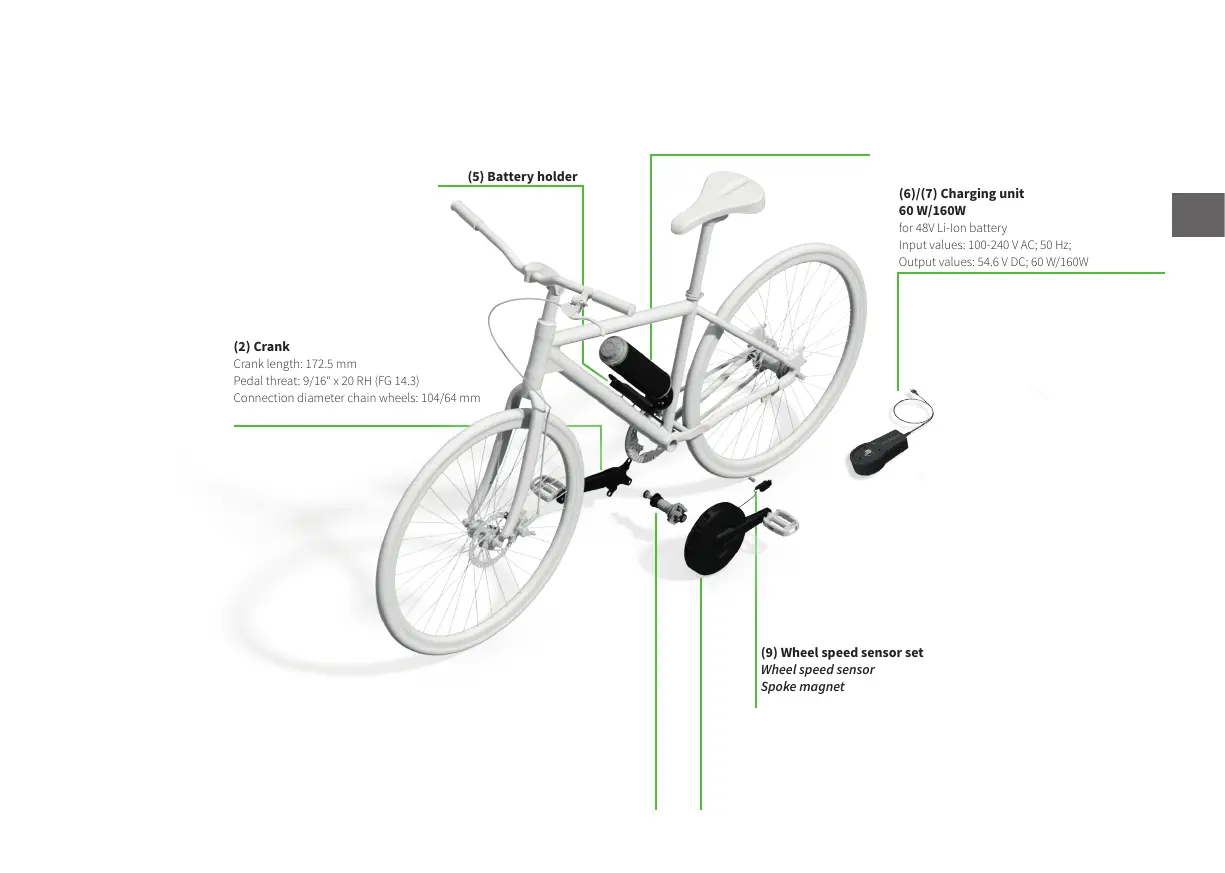

(6)/(7) Charging unit
60 W/160W
for 48V Li-Ion battery
Input values: 100-240 V AC; 50 Hz;
Output values: 54.6 V DC; 60 W/160W
(1) eMachine
Nominal power: 250 W
Crank length: 172.5 mm
Pedal threat: 9/16“ x 20 LH (FG 14.3)
(2) Crank
Crank length: 172.5 mm
Pedal threat: 9/16“ x 20 RH (FG 14.3)
Connection diameter chain wheels: 104/64 mm
(9) Wheel speed sensor set
Wheel speed sensor
Spoke magnet
(5) Battery holder
(3)/(4) ePower (battery) 300/500
13S2P Li-Ion/ 13S3P Li-Ion
Voltage: 48 V
Capacity: 300 Wh/497 Wh
5. Overview components
(8) Bottom bracket unit
Bottom bracket
Square sha
Sha length: 128 mm
Bottom bracket thread: BSA 1.375“ x 24 TPI LH
(FG34)
Crank thread: M8x1 RH
Bottom bracket mounting
Bottom bracket thread: BSA 1.375“ x 24 TPI RH
(FG34)
Spacer ring electronic bottom bracket
Wave washer
Crank screw
Screwed bushing aluminium
