7
EasyTouch Control System Users Guide
EasyTouch Indoor Control and Wireless Control Panel (Optional)
The EasyTouch Wireless or the Indoor Control Panel allows you to control your pool and spa daily operations
from around your pool area or inside your home. Use the “P” (Pool) and “Spa” (Pool) buttons to heat and
filter your pool and spa. The Indoor Control Panel connects to the EasyTouch motherboard in the load center.
For more information refer to the EasyTouch Indoor Control Panel Users Guide (P/N 520616) and the
EasyTouch Wireless Control Panel User’s Guide (P/N 520688).

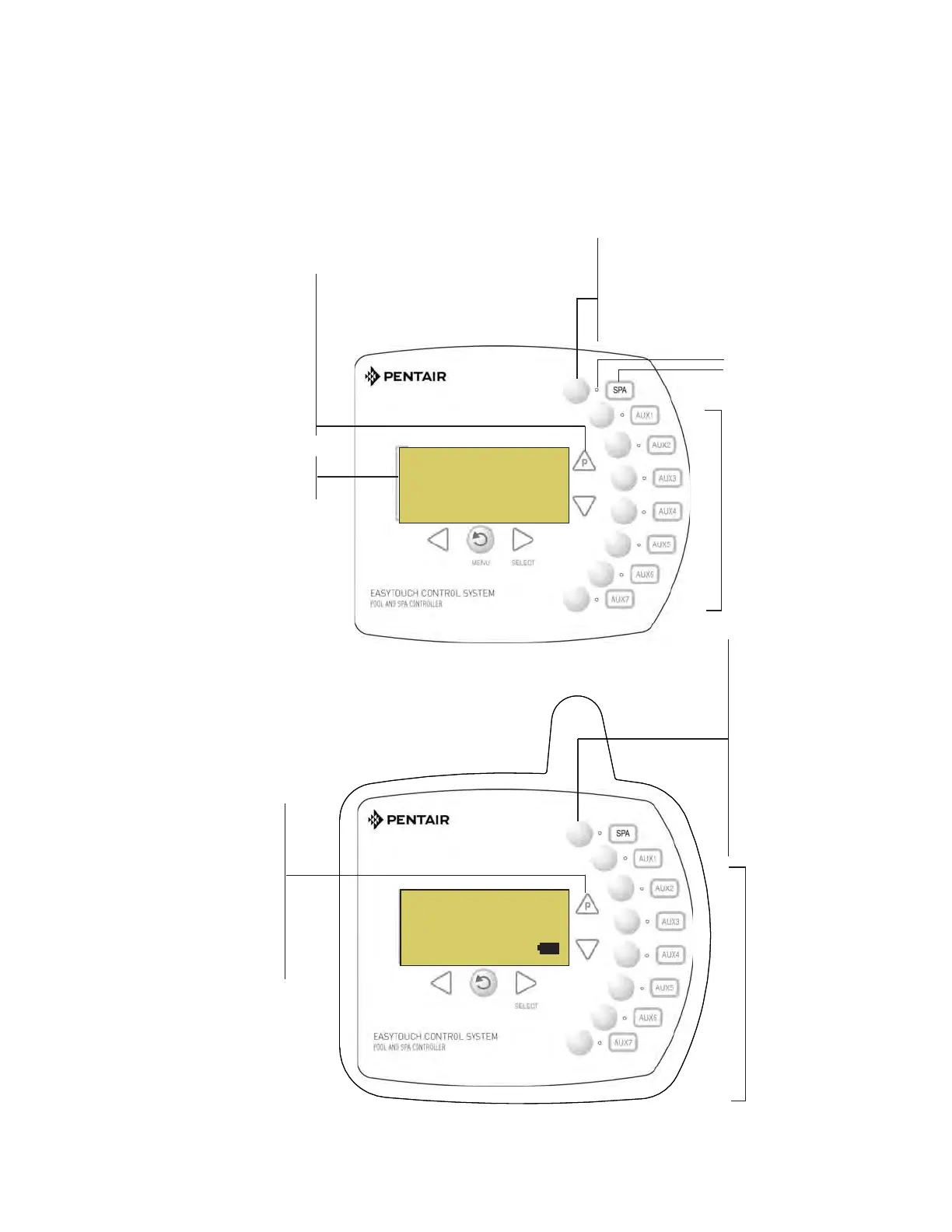

EasyTouch wireless control panel (EasyTouch 8) - (P/N 520547)
For details about the
control panel LCD
status messages,
see page 8
AUTO HEATER
SPA 100°F / 95°F
AIR 70°F
MON 09:30 AM
Seven user defined
auxiliary circuits.
Buttons switch the
assigned circuit
function on/off (12
hour time-out). Down
arrow button can also
be used for an “extra”
auxiliary circuit if solar
equipment is not being
used
Spa (Hi-Temp) Button: Switches the filter
pump on, rotates valve actuator (to isolate
spa water from pool water), and switches
the heater on. Hi-Temp (EasyTouch single
body system) sets the high temperature
settings for the spa.
Circuit LED
Circuit name label
Spa (Hi-Temp) Button:
Switches the filter
pump on, rotates valve
actuator (to isolate spa
water from pool water),
and switches the
heater on. Hi-Temp
(EasyTouch single
body system) sets the
high temperature
settings for the
spa.
Pool (Lo-Temp) Button:
Switches the filter pump on,
rotates valve actuator (to isolate
pool water from spa water), and
switches heater on.
Lo-Temp (EasyTouch single body
system) sets the low tempera-
ture settings for the pool (see
page 41)
Pool (Lo-Temp) Button:
Switches the filter pump
on, rotates valve
actuator (to isolate pool
water from spa water),
and switches heater on.
Lo-Temp (EasyTouch
single body system)
sets the low temperature
settings for the pool.
EasyTouch indoor control panel (EasyTouch 8) - (P/N 520549)
AUTO HEATER
SPA 95°F / 100°F
AIR 70°F
MON 09:30 AM
Seven user
defined auxiliary
circuits. Buttons
switch the as-
signed circuit
function on/off
(12 hour time-out)
Down arrow button
can also be used
for an “extra”
auxiliary circuit if
solar equipment is
not being used
POWER ON
