Pentair FLECK 5800 XTR2 User Manual

FLECK 5800 XTR2
SERVICE MANUAL
2
3
6
%55HY+

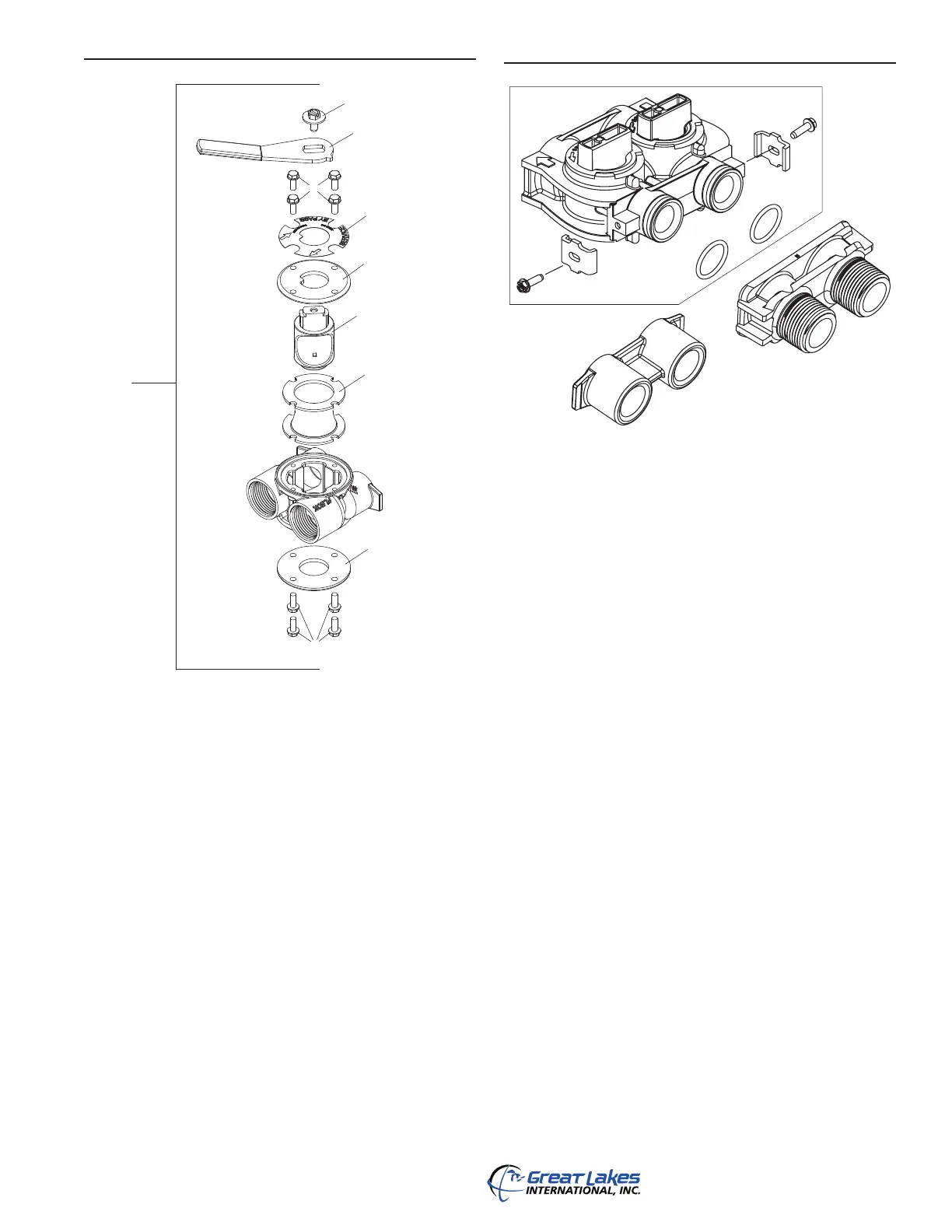

BYPASS VALVE ASSEMBLY (PLASTIC)
Item No. QTY Part No. Description
1.................2 ........ 13305 .................O-ring, -119
2.................2 ........ 13255 .................Clip, Mounting
3.................2 ........ 13314 .................Screw, Slot Ind Hex, 8-18 x 0.60
4.................1 ........ 18706 .................Yoke, 1", NPT, Plastic
......... 18706-02 ............Yoke, 3/4", NPT, Plastic
5.................1 ........ 13708-40 ............Yoke, 1", Sweat
......... 13708-45 ............Yoke, 3/4", Sweat
......... 19275 .................Yoke, Angle 90 Deg, 3/4", NPT
......... 19275-45 ............Yoke, Angle 90 Deg, 3/4", Sweat
......... 19620-01 ............Yoke, Assy, 3/4", R/Angle 90 Deg,
w/O-rings, Clips & Screws
......... 40636 .................Yoke, 1-1/4", NPT
......... 40636-49 ............Yoke, 1-1/4", Sweat
......... 41027-01 ............Yoke, 3/4", NPT, Cast, Machined
......... 41026-01 ............Yoke, 1", NPT, Cast, Machined,
SS
......... 41026-02 ............Yoke, 1", BSP, Cast, Machined, SS
......... 18706-10 ............Yoke, 1", BSP, Plastic
......... 41027-02 ............Yoke, 3/4", BSP, Cast, Machined
......... 18706-12 ............Yoke, 3/4", BSP, Plastic
......... 19620-01 ............Yoke Assy, 3/4", R/Angle, 90 Deg
6.................1 ........ 60049 .................Bypass Plastic
Not Shown:
2 ........ 19228-01 ............Adapter Assy, Coupling,
w/O-rings
1
4
5
%55HY-
%55HY*
BYPASS VALVE ASSEMBLY (METAL)
Item No. QTY Part No. Description
1.................1 ........ 14105 .................Seal, Bypass, 560CD
2.................1 ........ 11972 .................Plug, Bypass
3.................1 ........ 11978 .................Side Cover
4.................1 ........ 13604-01 ............Label
5.................8 ........ 15727 .................Screw, 10-24 x 0.5"
6.................1 ........ 11986 .................Side Cover
7.................1 ........ 11979 .................Lever, Bypass
8.................1 ........ 11989 .................Screw, Hex Head, 1/4-14 x 1.5"
9.................1 ........ 60040SS .............Bypass Valve, 5600, 3/4" NPT
Black Grip Lever, SS
......... 60041SS .............Bypass Valve, 5600, 1" NPT Black
Grip Lever, Stainless Steel
Not Shown:
2 ........ 19228-01 ............Adapter Assy, Coupling,
w/O-rings
8
7
5
4
3
2
1
6
5
9
60040SS Rev Y
60041SS Rev AA
26 • FLECK 5800 XTR2 Service Manual
262.634.2386 | greatlakesintl.com
