RS-485 Communications
RS-485 is a US-based telecommunications
standard for binary serial communications between
devices. It is the protocol, or set of specifications,
that needs to be followed to allow devices that
implement the standard to speak to each other.
A fully compliant RS-485 port is included in the
PENTEK INTELLIDRIVE system to permit serial
connections among more than two devices on an

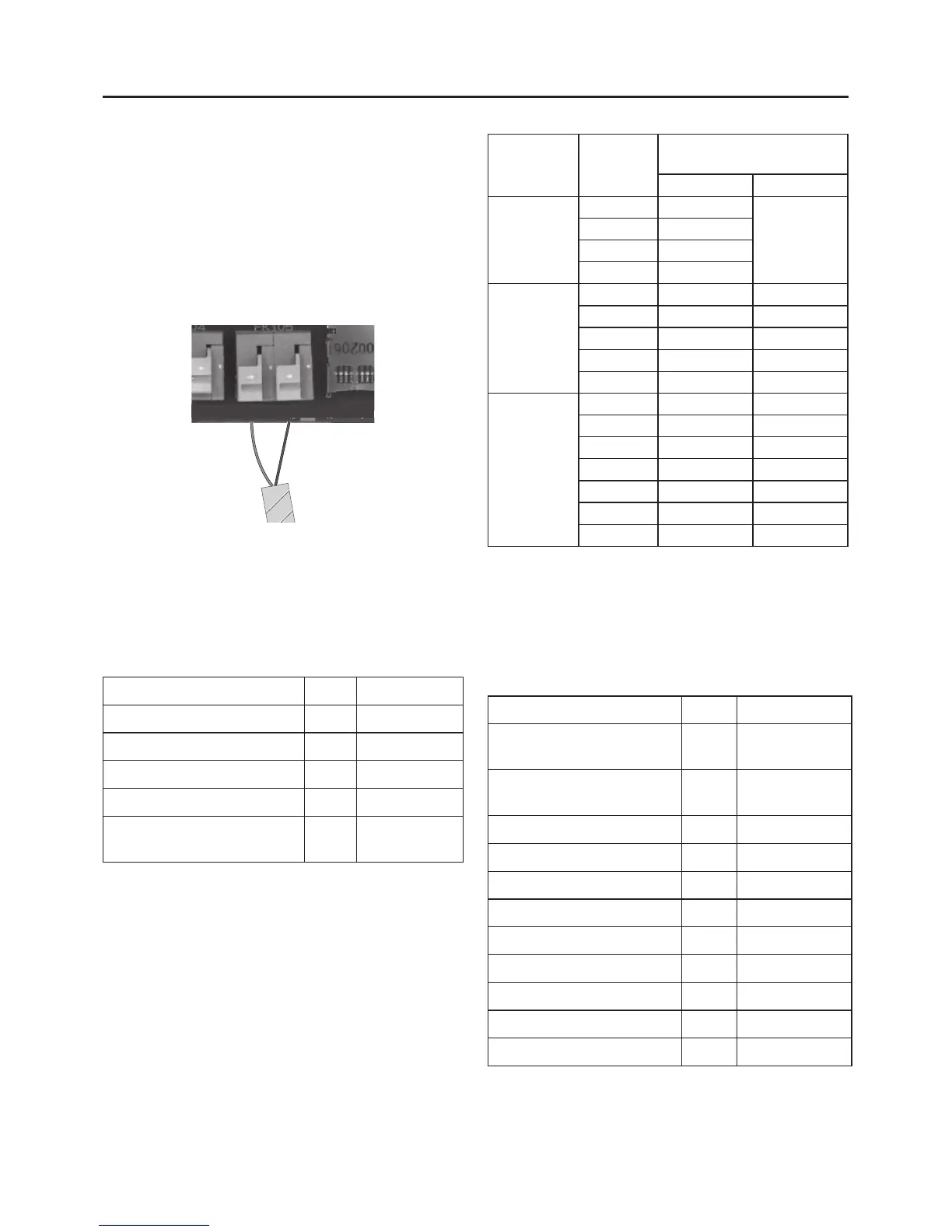

RS-485 compliant network. Figure 19 shows two-
wire connection to the Drive.
Lightning/Surge Protection
Lightning arrestors or other surge suppressing
devicescanbeusedwiththisproduct.MOV(Metal
Oxide Varistor), SOV(Silicon Oxide Varistor).
Accessories
Part Description Qty Part Number
Alternating Control Panel 1 VFD-ALT
MoistureSensor 1 VFD-WS
Surge Protection Kits 1 VFD-SGA
300 PSI Transducer 1 U17-2000
1”FPTFlowSwitch1.5GPM
Normally Open
1 U17-1999
Retrofit Applications
When retrofitting an installation with the
PENTEK INTELLIDRIVE, most of the preceding
text can be applied. As a convenience, the
recommended Service Factor Amps for non-
PENTEK motors is provided in Table 7. Always
verify Service Factor Amp values from current
manufacturer literature.
Table 7 - Service Factor Amps @ 230V
Motor Type HP
Service Factor Rating,
in Amps
CentriPro¹ Franklin²
2-Wire
1/2 4.7
N/A
3/4 6.4
1 9.1
1-1/2 11.0
CS/CR
3-Wire
1/2 4.9 4.3
3/4 6.3 5.7
1 7.2 7.1
1-1/2 11.1 11.5
2 12.2 13.2
3-Phase
1/2 2.9 2.9
3/4 3.9 3.8
1 4.7 4.7
1-1/2 6.1 5.9
2 7.6 8.1
3 10.1 10.9
5 17.5 17.8
¹CentriProSFAdatawastakenfromtheMarch2012BMAID
manual on 4/2012.
² Franklin Electric SFA data was taken from the 7/2011 Franklin
ElectricAIMmanualon4/2012.
NOTICE The PENTEK INTELLIDRIVE will not
operate Franklin Electric 2-wire motors.
Repair Parts
Part Description Qty Part Number
InputTerminalBlock
Connector
1 PID-CON2
OutputTerminalBlock
Connector
1 PID-CON3
Cooling Fan 1 PID-FAN-R
100 PSI Transducer 1 U17-1561-R
10’ Transducer Cable 1 VFD-10TCB
20’ Transducer Cable* 1 VFD-20TCB
50’ Transducer Cable* 1 VFD-50TCB
100’ Transducer Cable* 1 VFD-100TCB
200’ Transducer Cable* 1 VFD-200TCB
Keypad 1 PID-HMI-R
1/2” Cordgrip 10pk PID-GRP
* Purchase Separately
Additional Information 18
6544 0412
01+ 01- I1+ I1- I2+ I2- V+ V- AI+ AI- P N SD CARD
Figure 19 - Example RS-485 Connection
