SC-75 Plumbing Diagram
Plumbing the SC-75 Salt Chlorinator:
• Always install the SC-75 Salt Chlorinator AFTER the lter and heater. The SC-75 should be no closer than 1m away from
the heater outlet.

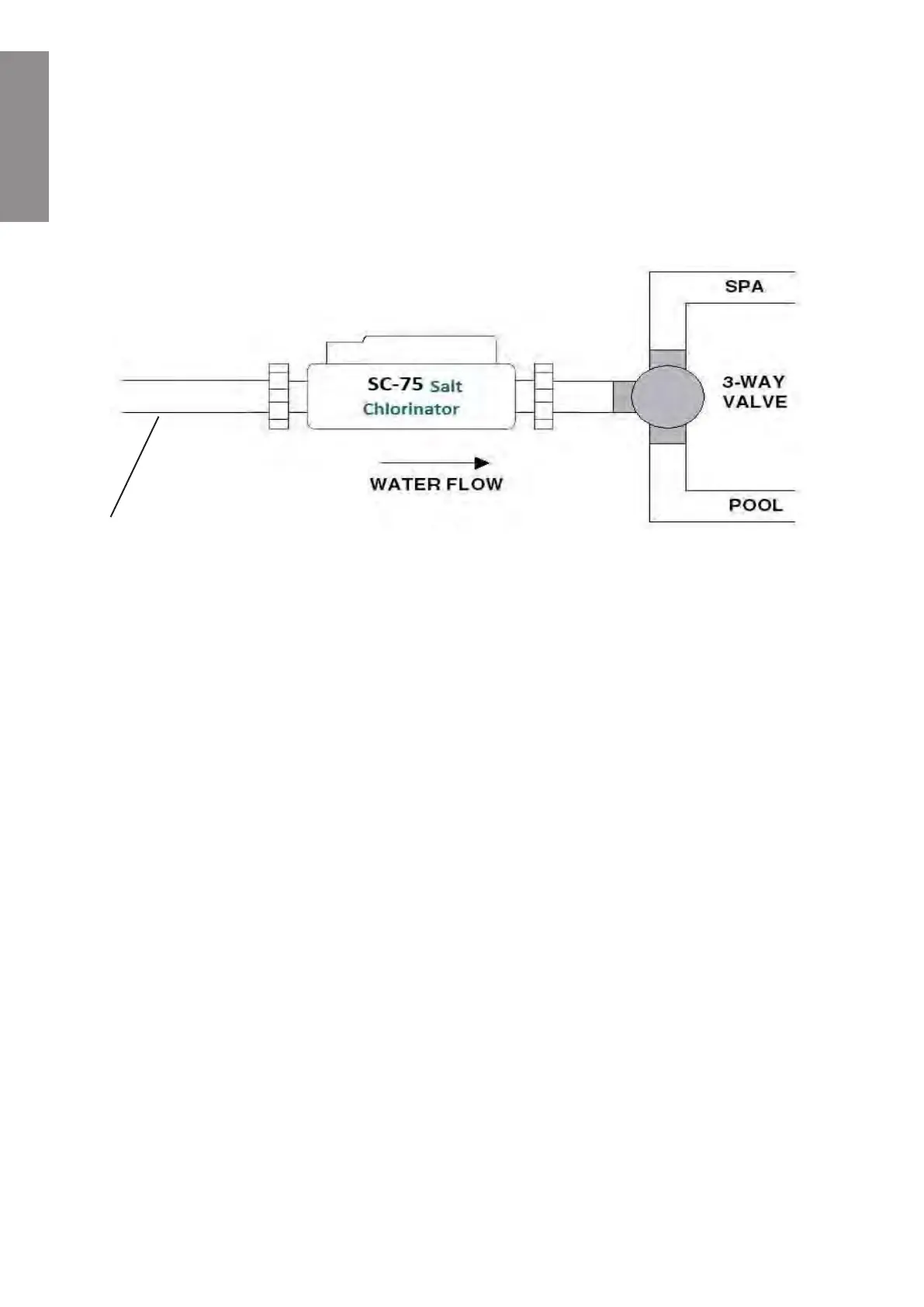

• If the SC-75 is installed on a pool/spa combinaon system, install (see diagram below) the SC-75 BEFORE the pool/spa
return valve to allow proper chlorinaon of both the pool and spa and also to avoid creang gas traps in the pipes.
NOT TO SCALE
Note: For best ow, provide
at least 30 to 45cm of straight
pipe in front of the cell inlet.
