5. Installation of 0
. Installation of 0. Installation of 0
. Installation of 0-
--
-D201.
D201.D201.
D201.
[Note] When replacing N300, cut the one lead on N300 at first.(Apply bond.)

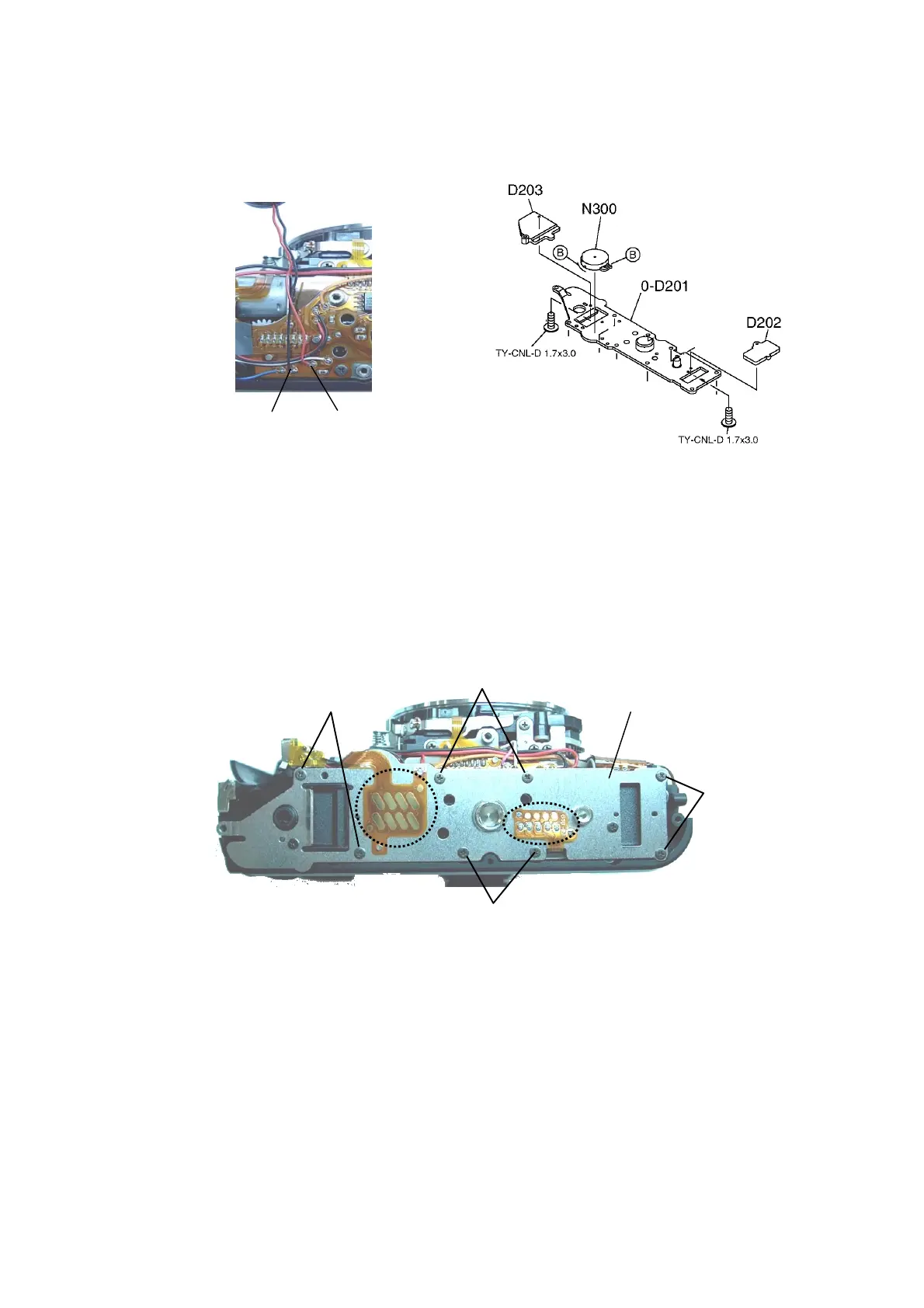

1） Solder 2 lead wires and arrange them in front of the camera as shown in Figure below.
2） Tighten the screws by numerical (①TY-CNL-D1.7x4.0 x4、②CNL-D1.7x4.0 x4.) and
diagonal order. (Do not use wrong one and not tighten the screw at wrong position.)
3） Position the land portions of 0-T100 Battery grip and adhere contact surface with DT
(5x10).
N300 (0-D201)
Black Red
N300
0-D201
①
①
②
②
To Next Page
