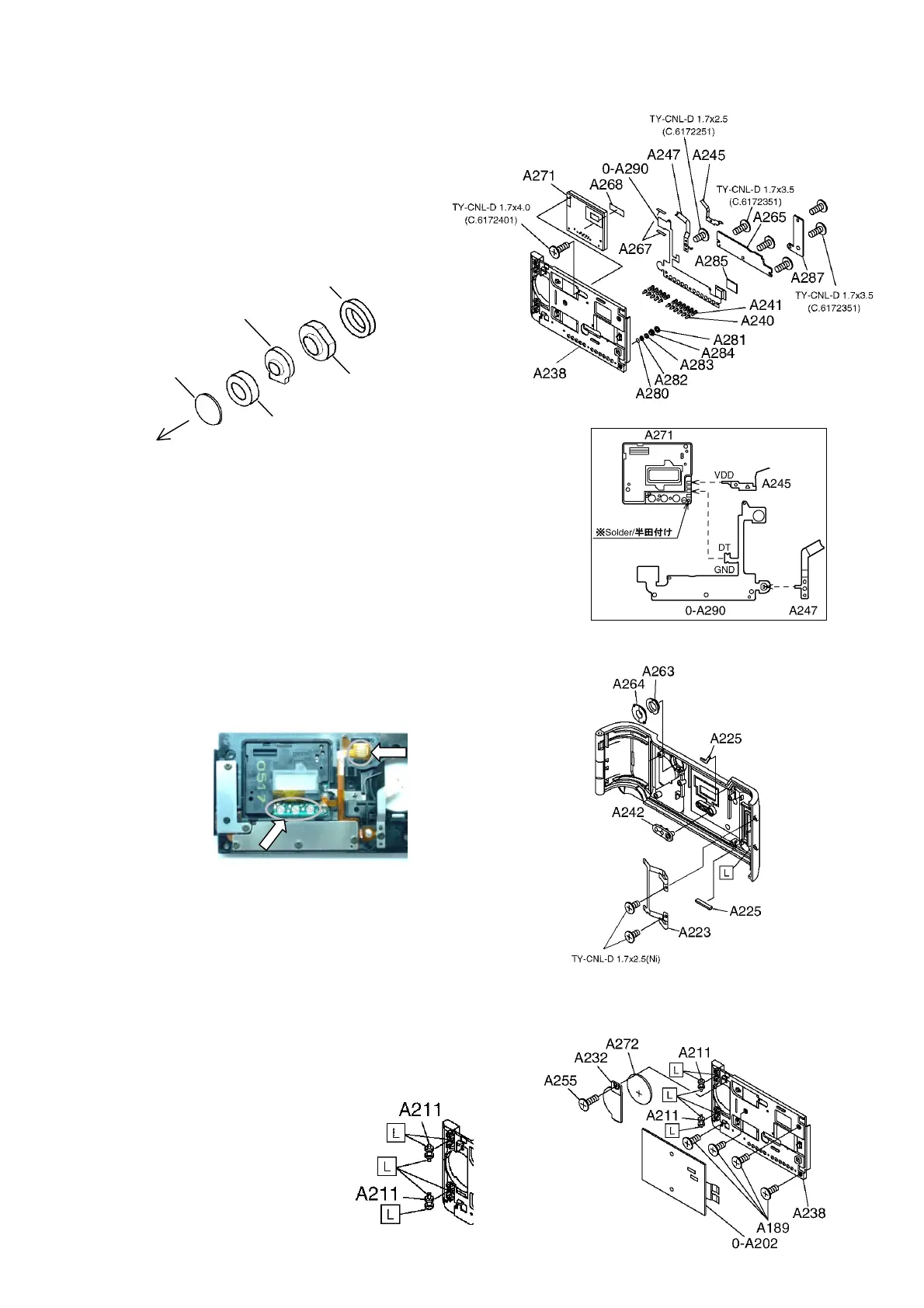

-1. Assembly of A238 and related parts.
1. Assembly of A238 and related parts.1. Assembly of A238 and related parts.
1. Assembly of A238 and related parts.
1） A271(Date module)･A268, 1 screw.
2） A245,A247, 1 screw.
3） Install 5 parts for Data imprinting.
(Make sure No hair, No stain exist)
4） Set 0-A290･A285 and install with A287･･･2 screws.
5） A240･A241 (x11),0-A290,A265, 3 screws.
6） Solder 5 points.( )
7） Adhere A267 x2 to the both sides of Button SW land.
7
77
7-
--
-2. Assembly of A238
2. Assembly of A2382. Assembly of A238
2. Assembly of A238
1） Wipe off 4 lands with mixed chemicals for cleaning.
2） A263･A264(AF button･SW),A242(Date button)
3） A238(Back cover base plate),A189(Cover retainer screw i) x4
4） A223(Cartridge retainer spring), 2 screws(Ni)
5） A225(Light seal) x2･･･adhere securely.
6） A272(Battery for date),A232(Battery cover),A255(Batt. cover retainer screw).
7） ApplyＬ115･･･key board, Installing position of Ａ211(6).
8） A211(Roller) x2･･･ The longer shaft side should face inside.
9） 0-Ａ202(Pressure plate assy.)
For checking LED of Data imprinting,
Please refer to「1-13.[Check]
.[Check].[Check]
.[Check]」.
A283
A281
A282
A284
A280
