Pentax MZ-S Service Manual

27640 -8/34-
1
11
1-
--
-10.[Adjust
10.[Adjust10.[Adjust
10.[Adjust･
･･
･Check] Adjustment with programmed soft ware.
Check] Adjustment with programmed soft ware.Check] Adjustment with programmed soft ware.
Check] Adjustment with programmed soft ware.
[Prepared]
[Prepared][Prepared]
[Prepared]（
（（
（Items with
Items with Items with
Items with “
““
“*
**
*”
””
” means that exclusively use for 27640
means that exclusively use for 27640 means that exclusively use for 27640
means that exclusively use for 27640）
））
）
□* 27640Programmed Software, □Personal computer, Display,
□Camera connecting cable for 27250, □Serial interface & cable, Buffer、
□AE standard lens for LX, □F8 Set ring, □Hexagonal driver 1.5 mm、
□Focus master lens for MEF（AF） or □Focus master lens for 2m,
□LX 1
st
curtain reflector plate for TTL,
□Shutter tester(measurable 1/6000sec.)
□A F sensor positioning jig： □Cross for 27250, □*Square for 27640, □*Cross for 27640
□* AF chart for 2m（Attached with Service manual, should used □Focus master lens for 2m,
□F/FA Lens 35-80mmF4-5.6(41280/41287),
□* Power source adapter(Hand made：modify Battery grip BG-10),
□* Temporarily Bottom cover and Battery cover, □ Regulated power supply,
□Battery(CR2)

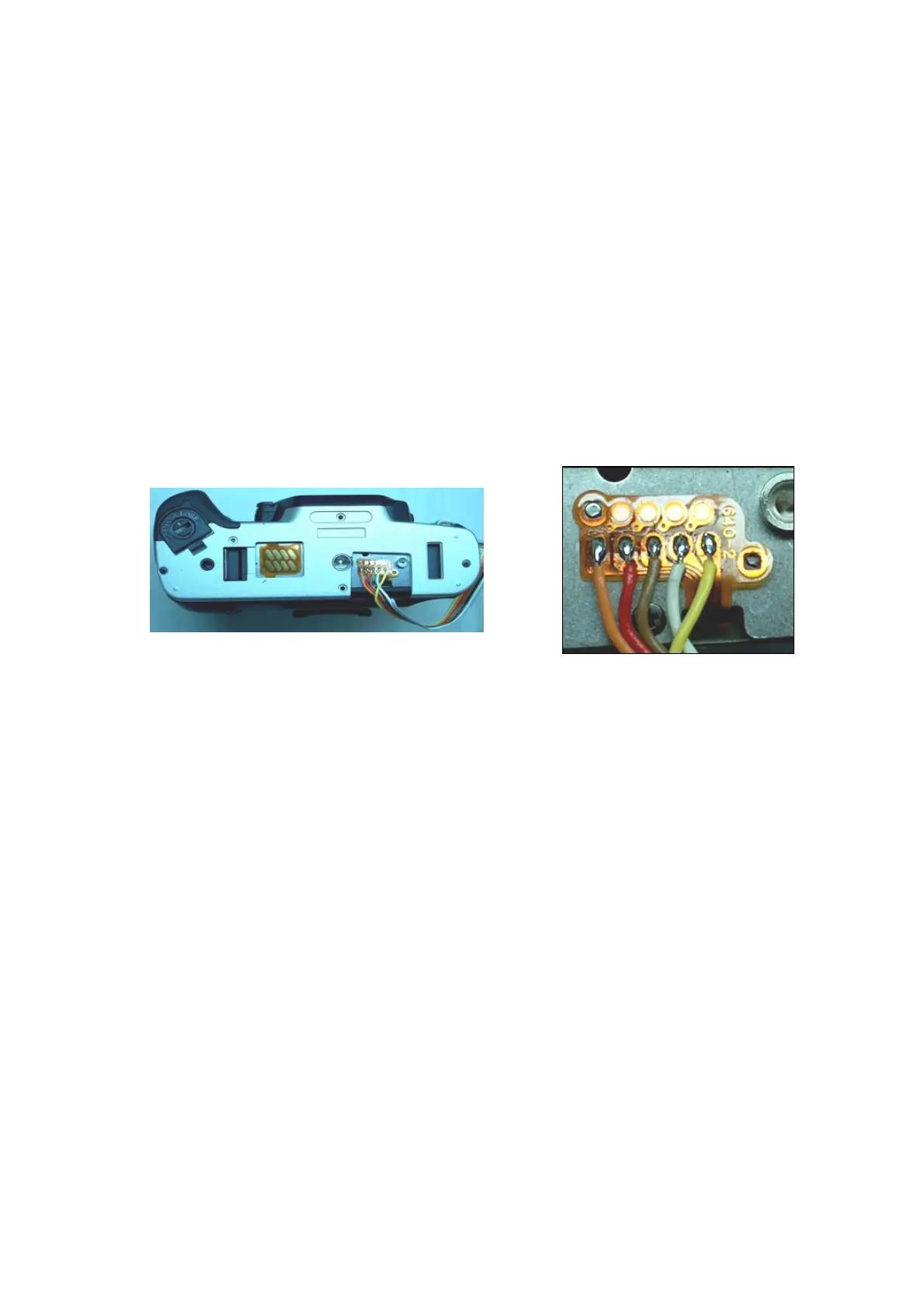

1） Solder Camera adapter cable for 27250(MZ-5). (From left hand side, Orange, Red, Brown,
White, Yellow)
2） Insert Battery to the camera.
3） Adjust and check accordingly with Flow chart in 27640Program soft. (Page 28/34 to 33/34)
[Supplement]
[Supplement][Supplement]
[Supplement] Adjust shutter speed（1/6000Sec.）
This adjustment must be done whenever replacing 0-T100 or 0-E000.
Procedure is identical with 27370(MZ-3).
1）Set the camera at consecutive mode at this stage and select the type of Shutter tester.
***** SHUTTER SPEED ADJUSTMENT *****
*SET DRIVE MODE SW OF CAMERA TO
CONSECUTIVE-FRAME MODE.
SHUTTER TESTER FOR 1/6000 SEC. ---[1]
SHUTTER TESTER [MODEL EF-5000] ---[2]
MAIN MENU ---[3]
2）
Select [1] when the shutter tester is measurable shutter speed 1/6000 sec.
(Example:EF-8000、7DF-50A1 for 645)
Select [2] when the shutter tester is measurable exposure values.
(Example:EF-5000 at EE mode)
3）Release the shutter several times and input the number accordingly with display on CRT.
（Refer to flow chart on Programmed soft ware.）
Refer to the Service manual for 27370 when using shutter tester 7DF-50A1 and EF-5000.
Refer and consult to operating manual for the other shutter testers.
