2. DISPLAY AND KEYBOARD
2.1 Display and keyboard
2.2 Operation key
Key Description
[POWER] ON/OFF of power supply
[ESC] Returns to previous screen or cancels an operation.
[ILLU] Turns the illumination of the LCD display and telescope reticle on
and off.
[ENT] Accepts the selected (highlighted) choice or the displayed screen
value.
[LASER] Displays the laser plummet *1, electronic vial function, and the
LD point screen when you push the laser plummet/electronic vial
key.
(Refer to “2-5 Laser Pointer”, “3-2 Laser plummet”, and “3-5 Leveling
with Electronic vial”).
*1: Only the product with the laser plummet function
[Alphanumeric] At the numerical value screen, the numerical value and the sign “.”
displayed are input. The English characters printed right under
numeric of each key are input.
[HELP] Pressing [lLLU]+[ESC] key causes a help menu to appear in
A MODE or B MODE or causes a help message to appear.
Alphanumeric
and +/- key
Enter key

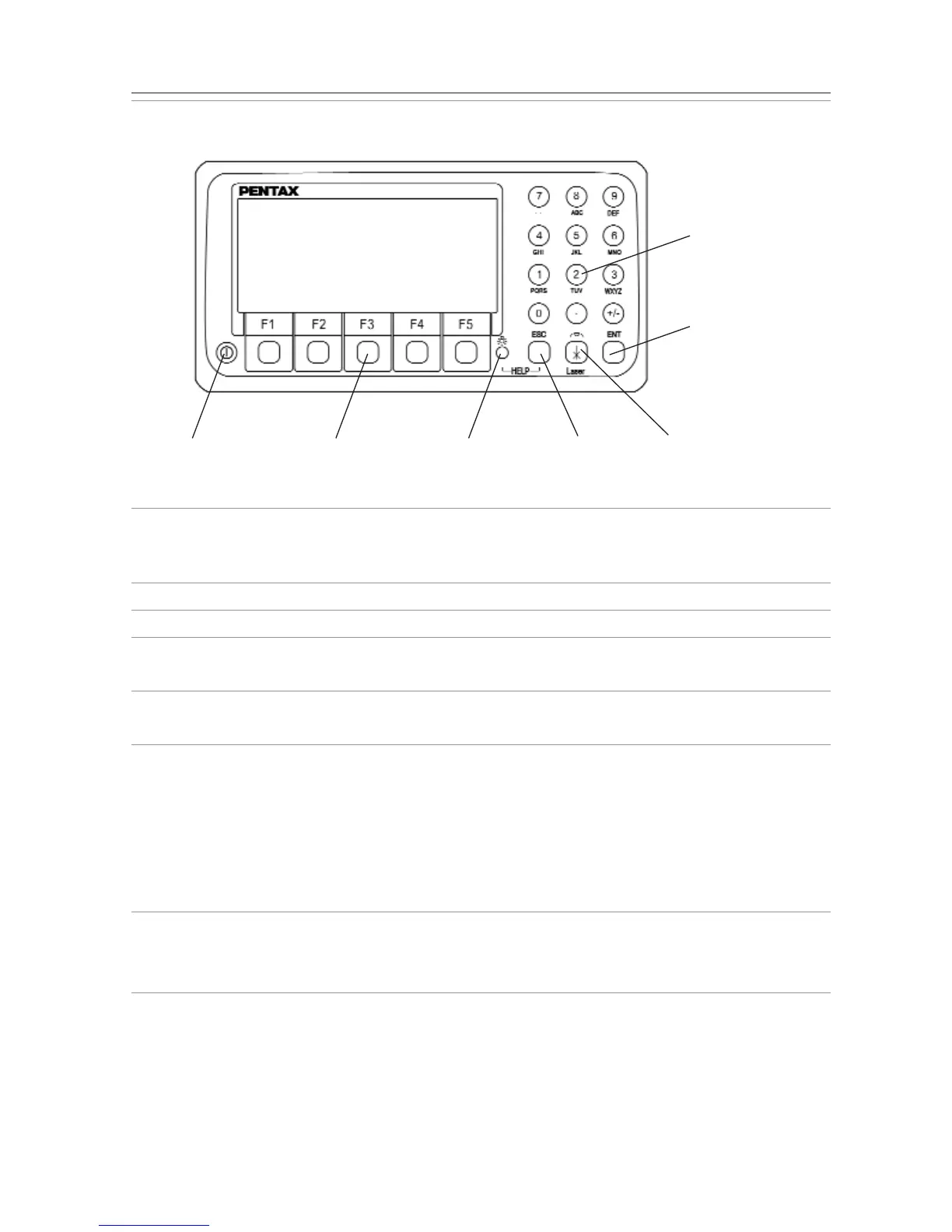

Power supply key Function key Illumination key ESC key Laser plummet and
Electronic vial key
