USER MANUAL
Peplink Balance Series
http://www.peplink.com -46 / 261 - Copyright © 2015 Peplink
6.11 Peplink Balance 710
6.11.1 Front Panel Appearance

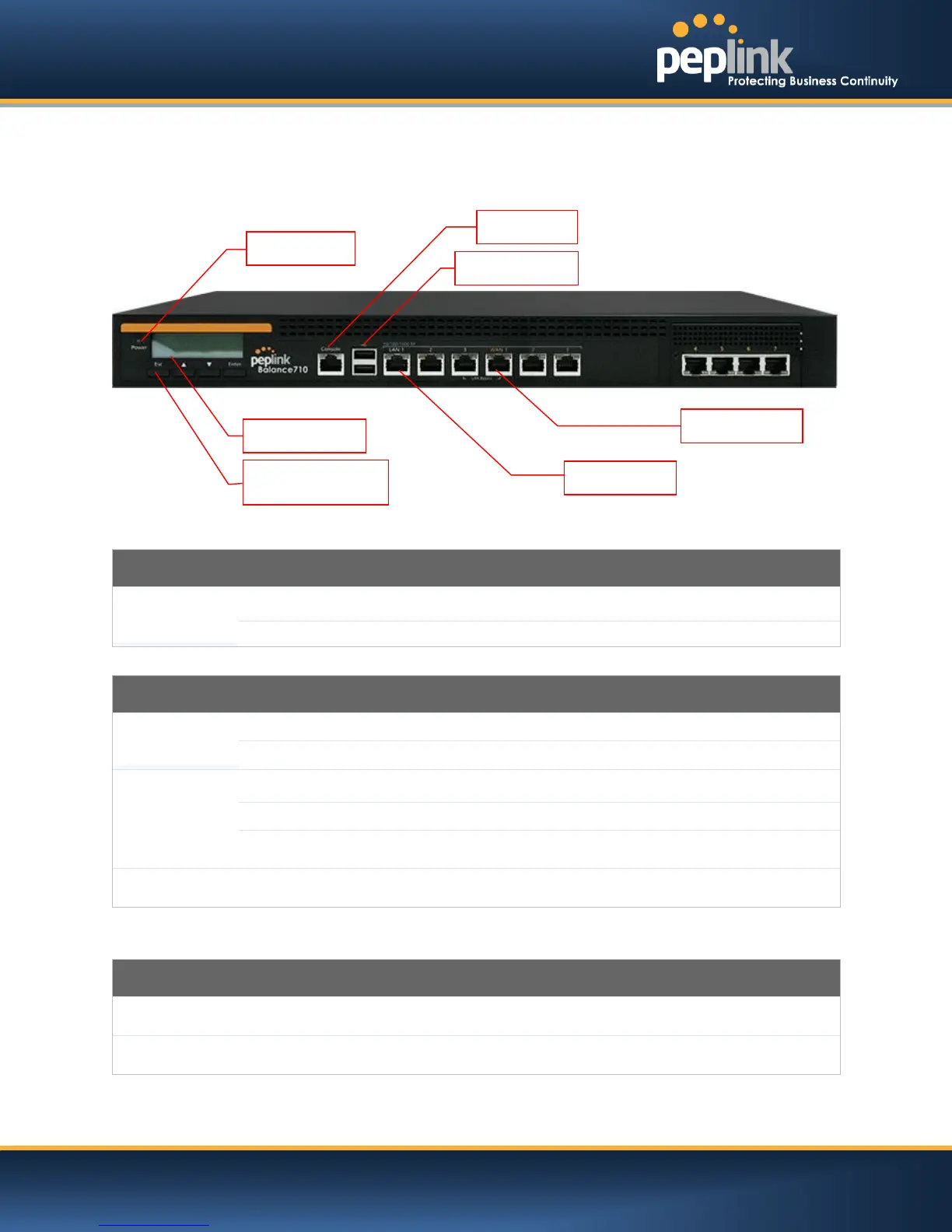

Status indicated in the front panel is as follows:
LAN Port, WAN 1 7 Ports
Green LED
ON 1000 Mbps
OFF 100/10 Mbps
Orange LED
Solid Port is connected without traffic
Blinking Data is transferring
OFF Port is not connected
Port Type
Auto MDI/MDI-X ports
LED Indicator
Power LED
OFF Power off
GREEN Power on
Console & USB Ports
Console Port
Reserved for engineering use
USB Ports
For connecting a 4G/3G USB modem
LCD
Display
LCD Controls
WAN Port
RS-232
Port
LAN Port
Power
LED
USB
Console
RS-232
Port
