4.1.6 Pressure Kit

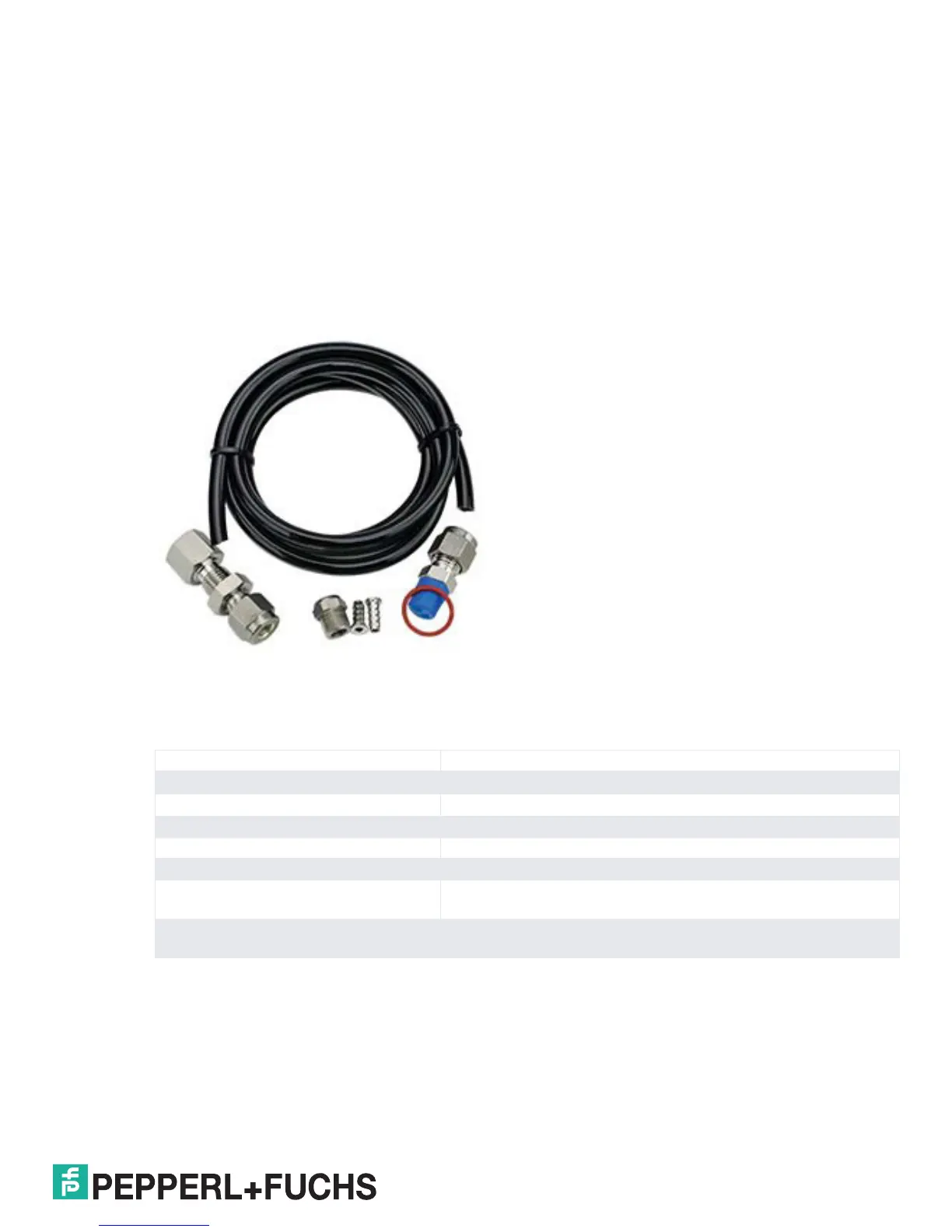

The included pressure kit contains the following components:
Bulkhead fitting
O-ring
Tubing
Tubing inserts
Straight connector
Sintered element for bulkhead fitting
4.1.7 Torque Requirements
Hardware Torque
Main lid 12 in lb (1.36 Nm).
M4 screws for mounting bracket 12 in lb (1.36Nm).
Screws for mounting HUB 12 in lb (1.36 Nm).
M12 plug 15 in lb (1.70 Nm).
Panel mount bracket hardware Tighten evenly to a uniform gasket thickness of 1.3 mm to 1.7 mm
Set screws to mount control unit in panel Tighten until control unit is touching metal-to-metal around all edg-
es
Manifold mounting hardware Tighten hardware until gasket is compressed 0.64 mm to 0.96 mm
(use washers provided)
