35
7500 Series Manual

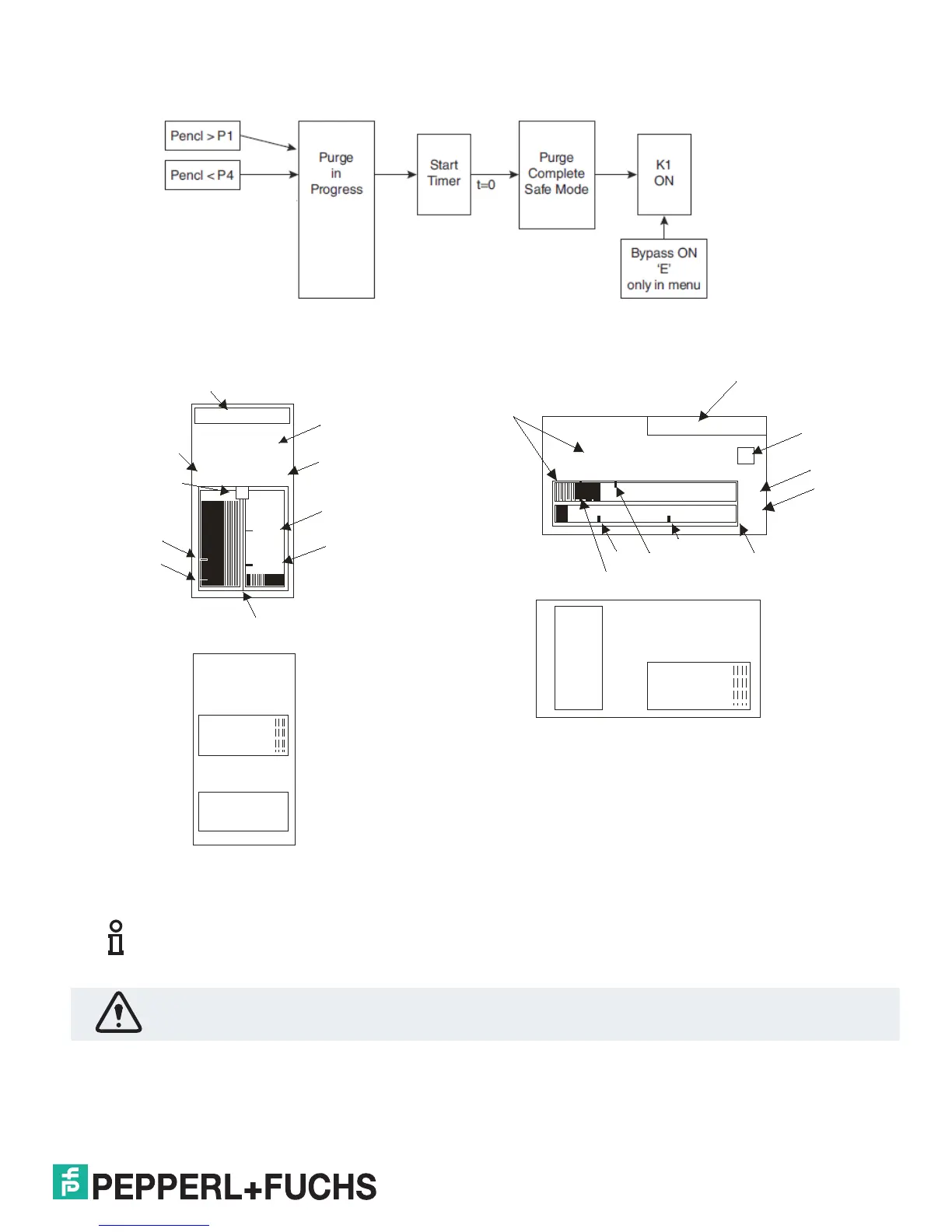

6 Programming
Use the touch screen on the front of the 7500 control unit to program the system:
Portrait View Landscape View
Program settings are saved on non-volatile memory within the CPU, and settings are unaffected by power-
down and reset function.Default values are stored and can be restored.
Note!
To save settings and exit setup mode, hold the set button to return to normal mode. Changes to settings take
effect immediately. Entering the incorrect password will exit setup mode.
Warning!
Do not change program settings in hazardous areas.
To enter Purge Setup or Contrast
press and hold finger on the display
in position for 5 seconds. To
enter Contrast push at location
shown
SETUP
Purging time: % complete / Time left
Enclosure Pressure
0 to 10” w.c. range
P1
P3
P2
Bar Graph
Enclosure Pressure
P4
0:300%
inH O
2
X.XX
10
6.00
3.00
2
3
0.30
0.80
CONTRAST
CONTRAST
SETUP
0:300%
3
Purging time: % complete / Time left
Purging Program
Enclosure Pressure
0 to 2w.c. range
0 to 10w.c. range
P1
P3
P2
Bar Graph
Enclosure Pressure
P4
2
0.80
3.00 6.00
10
X.XX in H O
2
0.35
To enter Purge Setup or Contrast
press and hold finger on the display
in position for 5 seconds. To
enter Contrast push at location
shown
Note
