29
7500 Series Manual

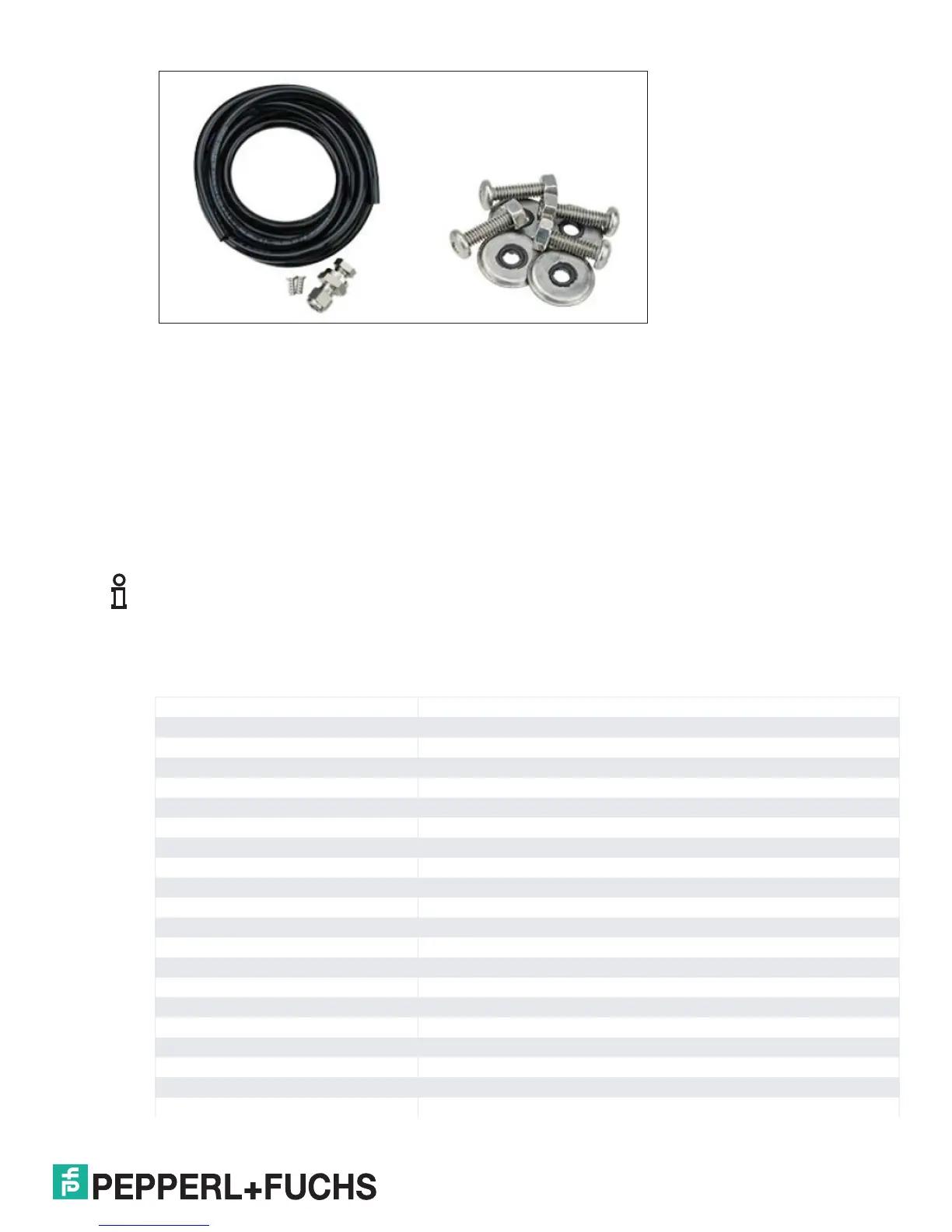

Tubing kit included mounting hardware included
5500 manifolds include the solenoid and manual needle valve
3/8 inch compression ferrule fittings for inlet and outlet protective gas source
3/8 inch compression ferrule bulkhead fitting that attaches to enclosure—for protective gas to inside
enclosure
3/8 inch poly tubing, length: 2 m
Inserts for poly tubing to ferrule fitting connection. If stainless steel tubing is used, inserts are not
required.
Hex key for pressurization valve included with 5500-MAN-CDUL version
Note!
When ordering, note the supply voltage of the 7500 control unit. Order the manifold valves accordingly.
Voltages are 24 V DC, 120 V AC, and 220 V AC. 5500 MAN-CDUL manifold valves are only available with
60 Hz operation.
4.4.1 Technical Data—5500 Manifolds
General specifications
Operation mode For automatic purging
Series 5500 and 7500
Hazardous environment gas or dust
Supply
Rated power equipment 5500-MAN-CDUL
24 V DC 5.6 W
120 V AC 7.2 VA, 60 Hz
230 V AC 7.2 VA, 60 Hz
Rated power equipment 5500-MAN-CD01
24 V DC 4.6 W
120 V AC 6.8 VA, 60 Hz
230 V AC 6.8 VA, 60 Hz
Rated power equipment 5500-MAN-EX01
24 V DC 2.6 W
120 V AC 3.1 VA, 50 ... 60 Hz
230 V AC 3.0 VA, 50 ... 60 Hz
Voltage tolerance ±10 %
Fuse rating on 5500 control unit
DC voltage 500 mA
AC voltage 80 mA
