7500 Series Manual

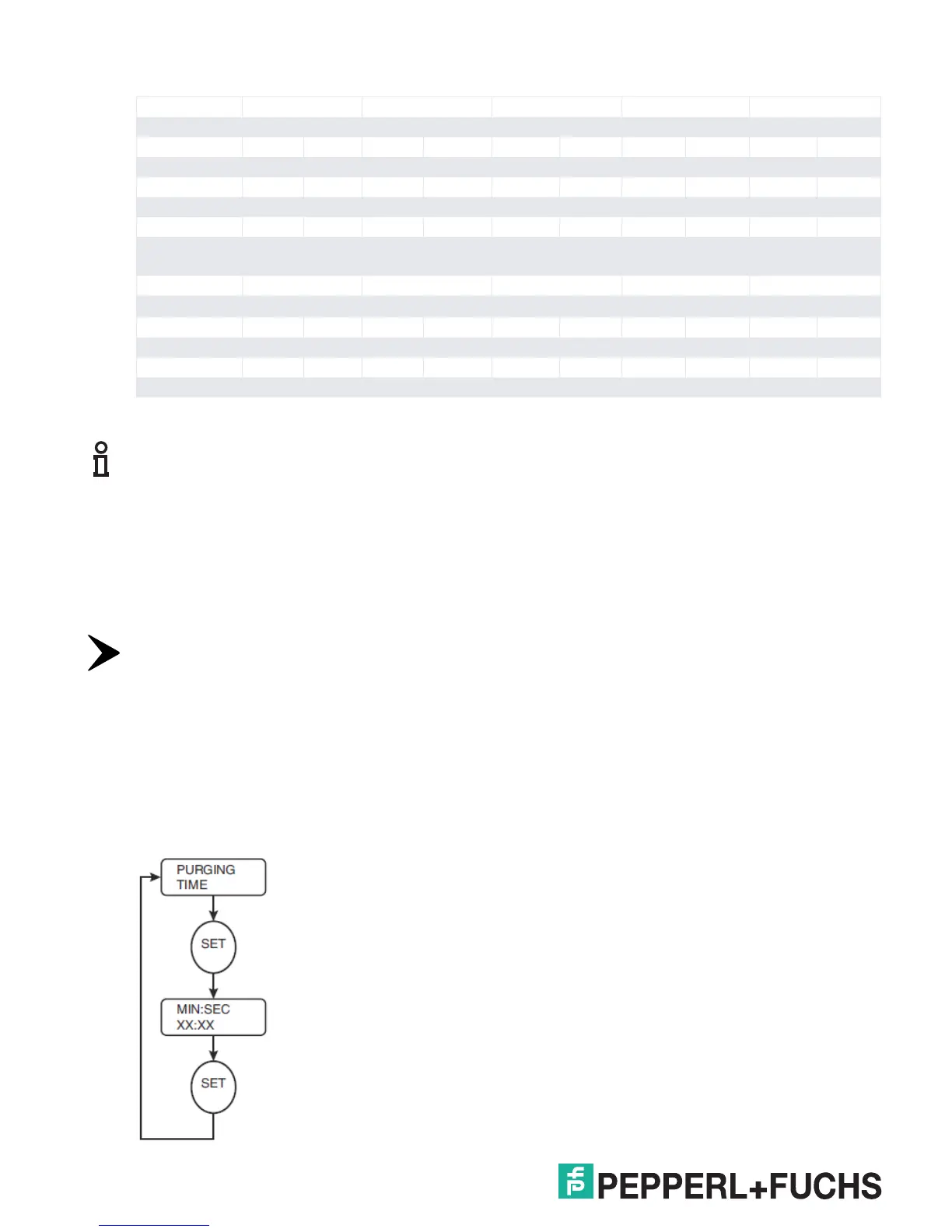

6.5.6 Sequence of Events for All Programs
Program 1 2 3 4 5
Purging K1 SV K1 SV K1 SV K1 SV K1 SV
P<P1 o on o o o o o on o o
P1<P<P2 o on o on o on o on o o
P2<P<P3 o on o on o on o on o o
P3<P<P4 o on o on o on o on o o
P>P4 o o o o o o o o o o
Clean activates
above P1
After purging
P<P1 on on on on o o on o on o
P1<P<P2 on on on on on on on on on on
P2<P<P3 on o on o on o on on on o
P3<P<P4 on o on o on o on o on o
P<P4 on o on o on o on o on o
Note!
Shutdown timer and bypass affect the status of K1 and SV. See the explanation for each to determine effects
on K1 and SV.
6.6 Purging Timer
MIN:SEC
000:00
To program the purging timer, proceed as follows:
Calculate the purging time using the formulas and examples in chapter 7.
Enter the purging time using the UP and DOWN buttons and SET.
To change purging time by 1 second increments, press the UP or DOWN button once.
To make purging time faster, hold down the button continuously. Purging time will advance faster, the
longer you hold the button down (in 5 seconds, 1 min, 5 min steps).
Maximum purge time is 254:59.
