Cold Junctions
Cold junctions have a prewired Pt100 thermocouple on plug openings 1 and 2 for numerically
correcting the thermoelectric voltage. Cold junctions are available in green and blue. Use
green cold junctions for non-intrinsically safe circuits and blue cold junctions for intrinsically
safe circuits.
 Cold junctions
• Blue: LB9112A
 Cold junctions with a protective cover
• Green: LB9011A
• Blue: LB9111A

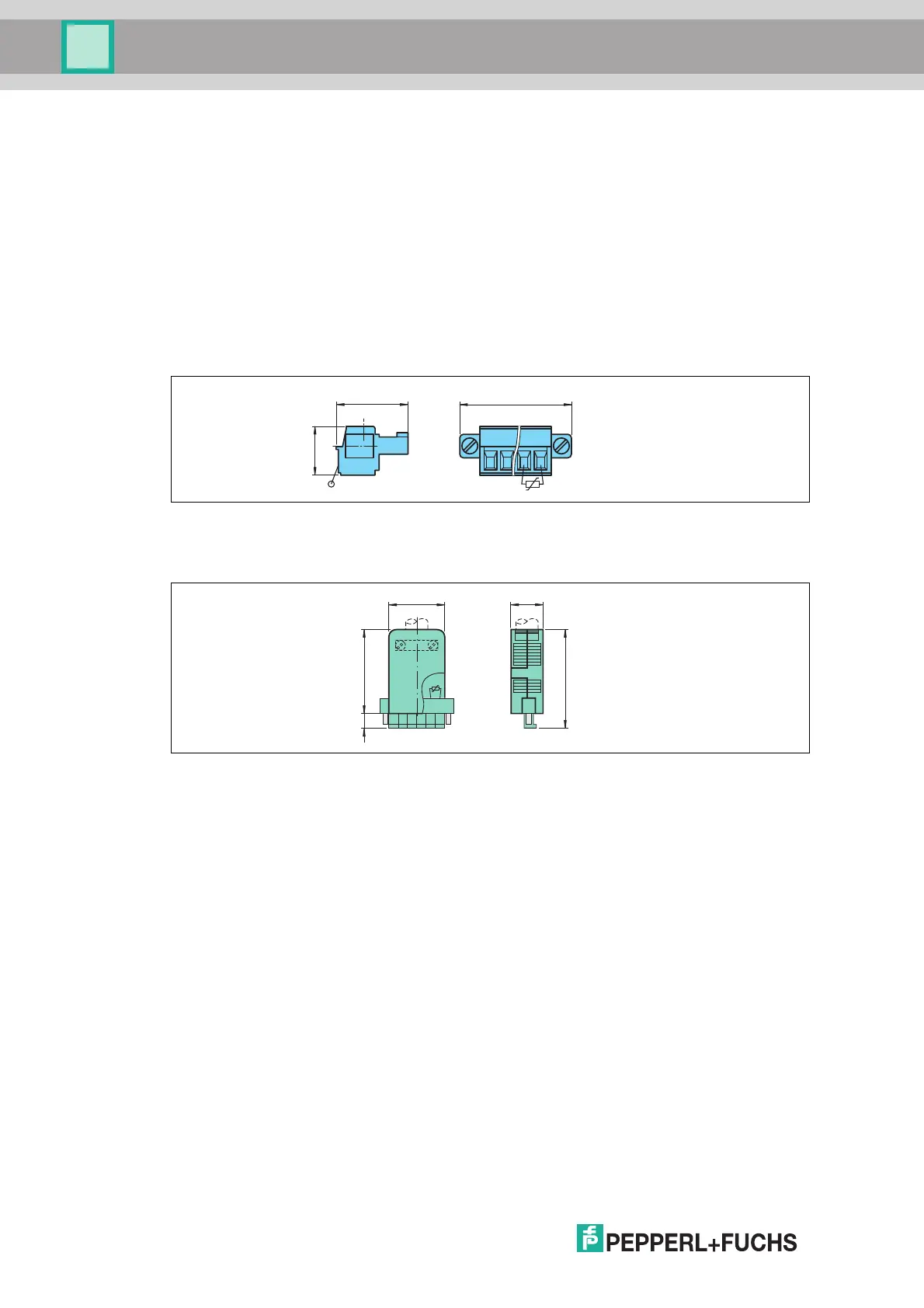

Figure 2.21 Cold junction dimensions
L = 33.3 mm for 6-pin terminal
Figure 2.22 Dimensions of a cold junction with a protective cover
L = 33.3 mm for 6-pin terminal
Coding Pins
Coding pins provide a unique assignment between I/O modules and terminal blocks or the
associated field devices. To do this, the coding pins are pushed into the grooves provided in
the front sockets of the I/O modules. This prevents terminal blocks from being accidentally
plugged into another I/O module.
 Coding pins
• KF-CP for LB9007A, LB9009A, LB9013A ... LB9019A, LB9107A, LB9107P,
LB9113A, LB9115A ... LB9119A, LB9124A ... LB9127A, LB9130A, LB9131A
• CP-MC 0.5 (Phoenix Contact order number 1881435) for LB9130A, LB9131A
Cold Junction
Cold Junction with a Protective Cover
16.1
L
11.1
12
12
14.5L
39
(45.6)
6.6

Pepperl+Fuchs LB Series Specifications

General

Mounting	DIN Rail
Zone	Zone 1, Zone 2
Power Supply	24 V DC
Protection Class	IP20
System Type	Remote I/O System
Communication Protocols	PROFIBUS DP
I/O Modules	Analog, Digital
Signal Type	Analog, Digital
Number of Channels	Varies by module
Intrinsic Safety	Yes
Isolation	Channel to channel, channel to system
Output Current	Varies by module (e.g., 0.5 A, 2 A)
Connection Type	Screw terminals
Dimensions	Varies by module
Weight	Varies by module
Temperature Range	-20 ... 60 °C (-4 ... 140 °F)
