5.1 Installation Procedures
1. Connect the Ethernet port on the unit to the backbone network using an
Ethernet cable. The port should auto sense whether the cable is
straight-through or crossover.
2. Connect the power adapter to the power connector of the unit. Plug the power
adapter into a power source.
3. Wait for the status LED to turn green.
4. Connect a PC to the backbone network. Configure the IP address of the PC
to be any IP address between 192.168.0.4 and 192.168.0.254, with a subnet
mask of 255.255.255.0.
5. Using Microsoft Internet Explorer 6 or above, Mozilla Firefox 2.0 or above, or
Google Chrome 2.0 or above, connect to https://192.168.0.3.
6. Enter the default admin login ID and password, admin and public respectively.

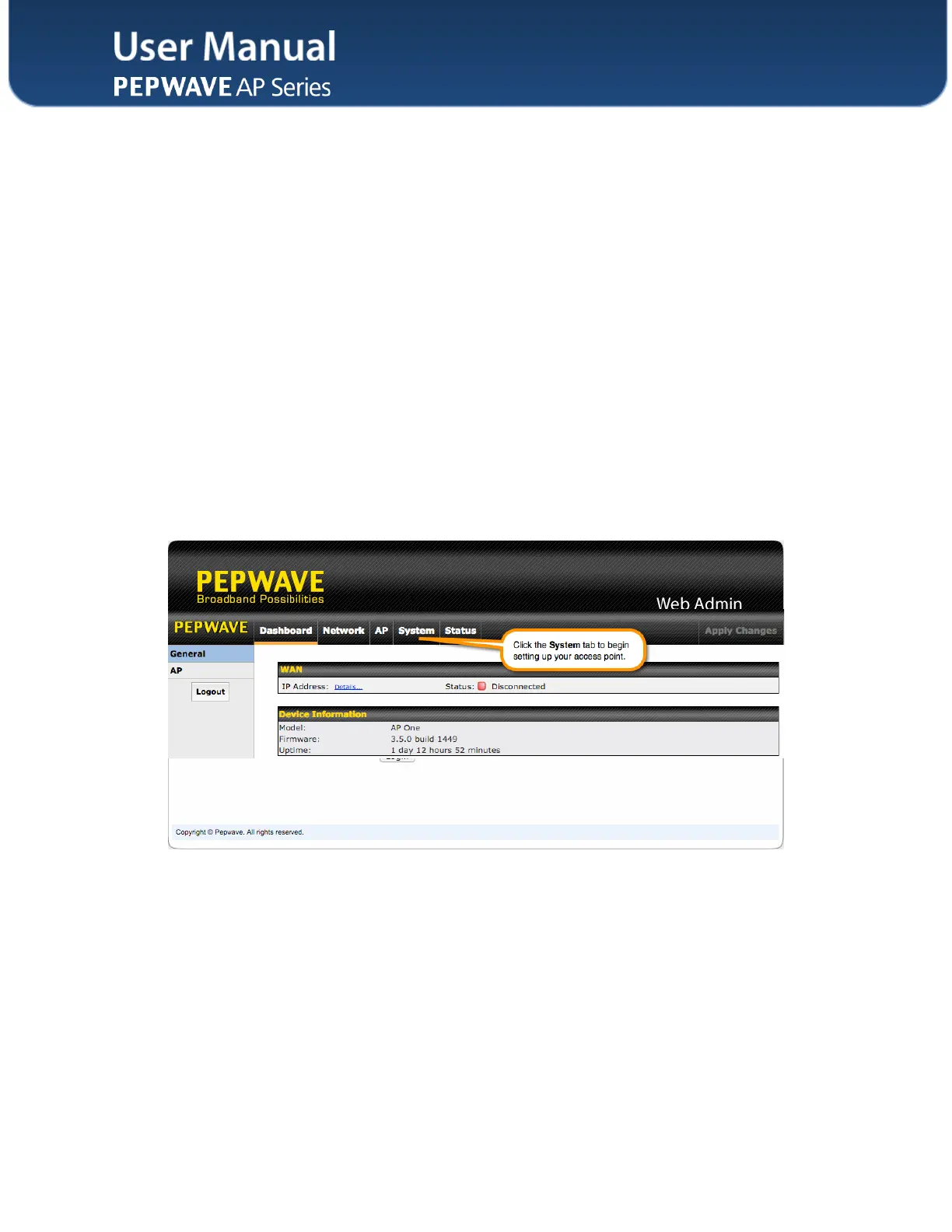

7. After logging in, the Dashboard appears. Click the System tab to begin setting
up your access point.
6 Using the Dashboard
The Dashboard section contains a number of displays to keep you up-to-date on your
access point’s status and operation. Remote assistance can also be enabled here.
