Functional description
10
Mechanical design overview

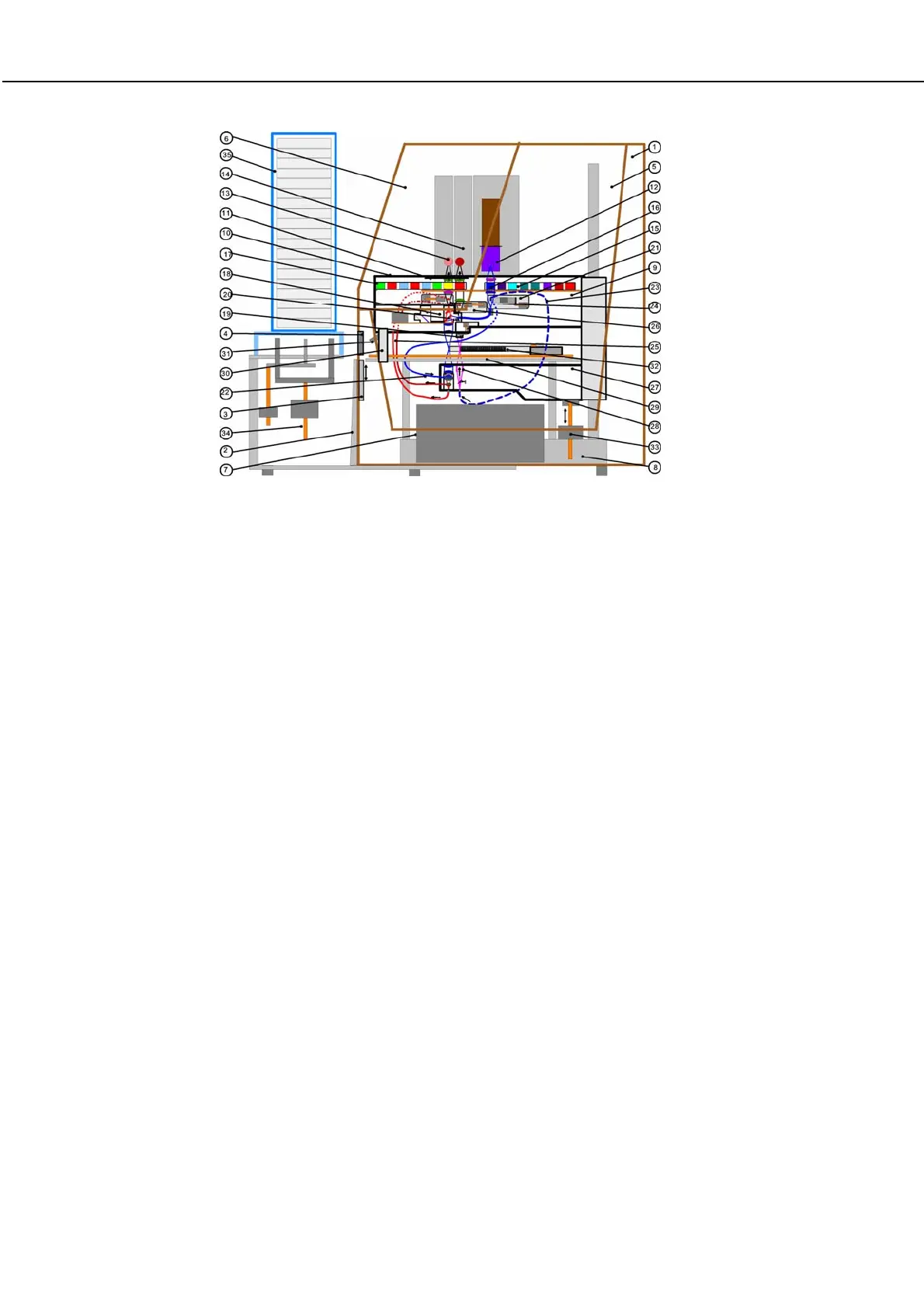

Figure 3. Layout of modules in EnVision (side view)
1. Case frame
2. Front panel
3. Loading door
4. Height sensor
5. Case
6. Lid
7. Power supply
8. Basic frame
9. Top measuring head body
10. Cover plate
11. Light shutter
12. High effic.light source
13. Detector
14. Second detector
15. Excitation filter frame
16. Filter module
17. Emission filter frame
18. Mirror module changer
19. Photometric detector
20. Mirror module
21. Light director assembly
22. Bottom excitation cable
23. Photometric cable
24. Emission light selector
25. Emission cable
26. Second detector emission light selector
27. Bottom measuring head body
28. Photometric optics
29. X-Y conveyor
30. Barcode reader holder
31. Barcode reader
32. Plate carrier
33. Z-movement module
34. Lifting module (stacker)
35. Magazine for 20 plates
Note! With Ultra Sensitive Luminescence there is an additional detector for
this measurement. This is located next to the other detector(s). The detector
used for Ultra Sensitive Luminescence is also used for HTS AlphaScreen if
that is installed.
Note! With AlphaScreen and HTS AlphaScreen there is an additional laser
for excitation. The light travels by means of a light guide to a special mirror
module and via that to the measurement position. A light shutter protects the
detector during the time the laser is exciting the sample. With HTS
AlphaScreen there is an additional detector to enable high throughput
AlphaScreen measurements. This is located next to the other detector(s). It
is the same detector as used for Ultra Sensitive Luminescence.
