Routine maintenance
55
5. Put back the slide.
Note! You could also put in another slide with a different set of filters
instead.
6. Close the instrument lid when you have finished.
7. The instrument will read the barcodes on the filter modules and update
the list of filters in the software.

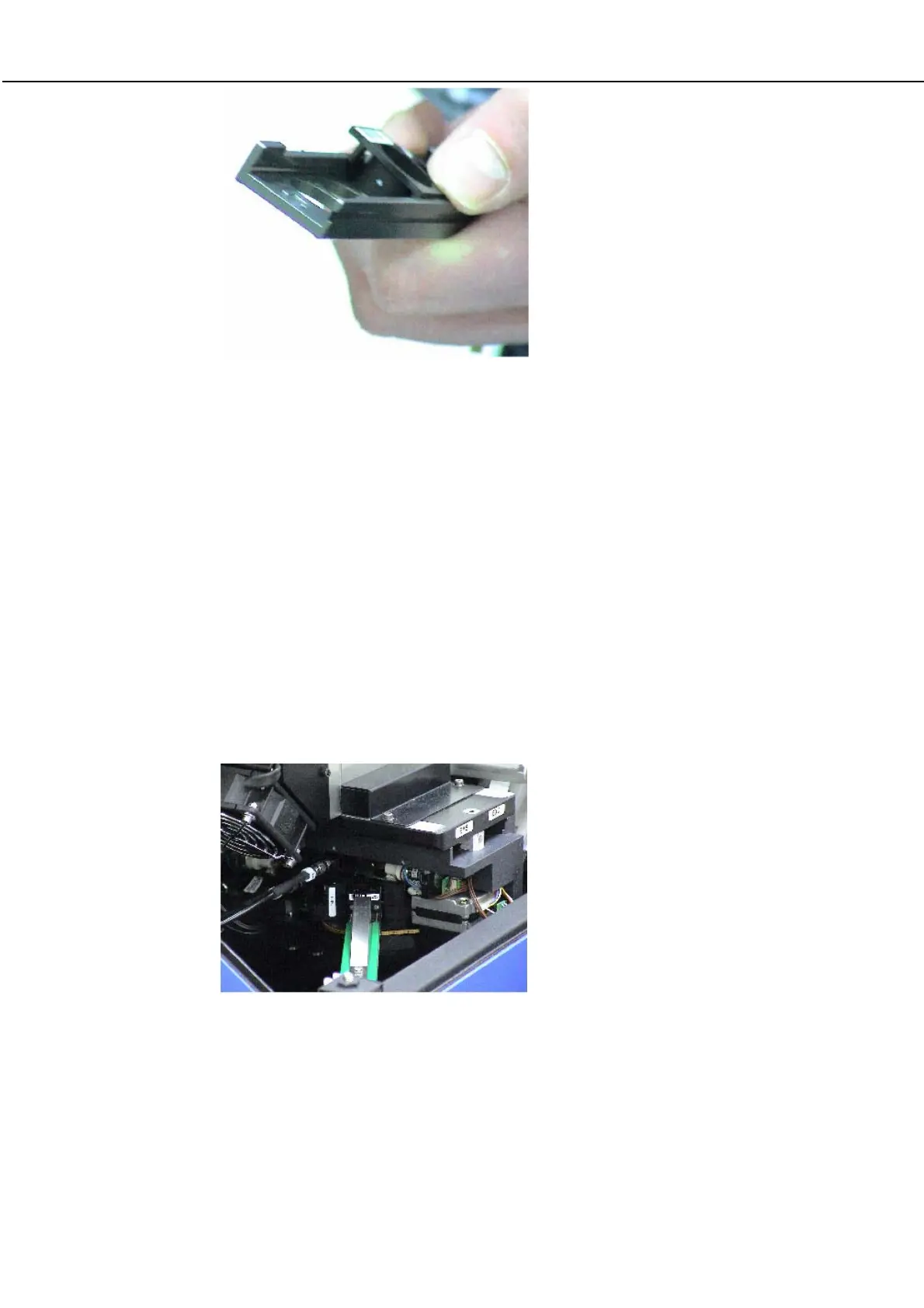

Changing a mirror module
1. When the lid is lifted you can see a mirror module just to the left of the
top measuring head body (where the filter slides are also located). Up to
four mirror modules are mounted on a rotatable mirror module changer.
You can turn this to get access to the mirror module you want. There is a
metal wedge after which comes mirror modules 1, 2, 3 and 4 in
clockwise order.
2. Use the special tool to remove the mirror module. The sprung metal
piece in the center of the tool must be pressed down when you engage
the hooks of the tool with the mirror module. Release the sprung metal
piece again to hold the mirror module firmly.
3. Press down the end of the tool to release the mirror module.
