PerkinElmer EnVision User Manual

Functional description
19

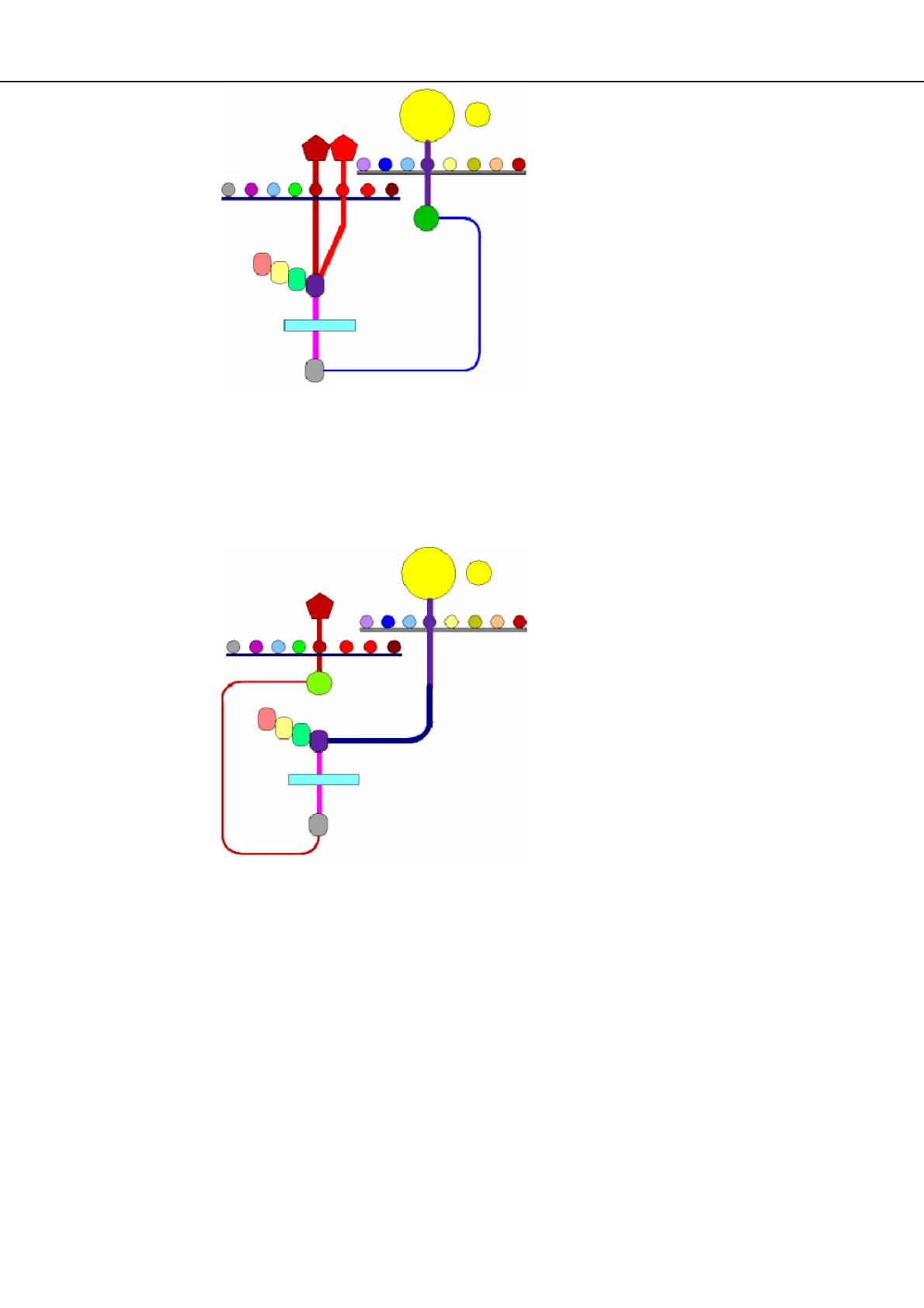

Figure 18. Excitation from below/Dual reading from above
Note! A dual mirror is needed whenever the second detector is used even if
the reading is done from opposite sides of the plate. The mirror in the light
path to the second detector is the one that must be dual as noted in the
figures.
Figure 19. Excitation from above/Reading from below

PerkinElmer EnVision Specifications

General

Light Source	Xenon flash lamp
Software	EnVision Manager
Read Modes	Absorbance, Fluorescence, Luminescence, Time-Resolved Fluorescence, Fluorescence Polarization
Plate Formats	384-well
Detection Technology	PMT
Temperature Control	Ambient to 45°C
