SEBU8605-01 39
Operation Section
Features and Controls
i04215952
Sensors and Electrical
Components
(Aftertreatment)
The illustration within the section shows the
typical loc
ations of the sensors and other electrical
components on the industrial engine. Specific engine
aftertreatment systems may appear different due to
the applica
tion.
g02395776

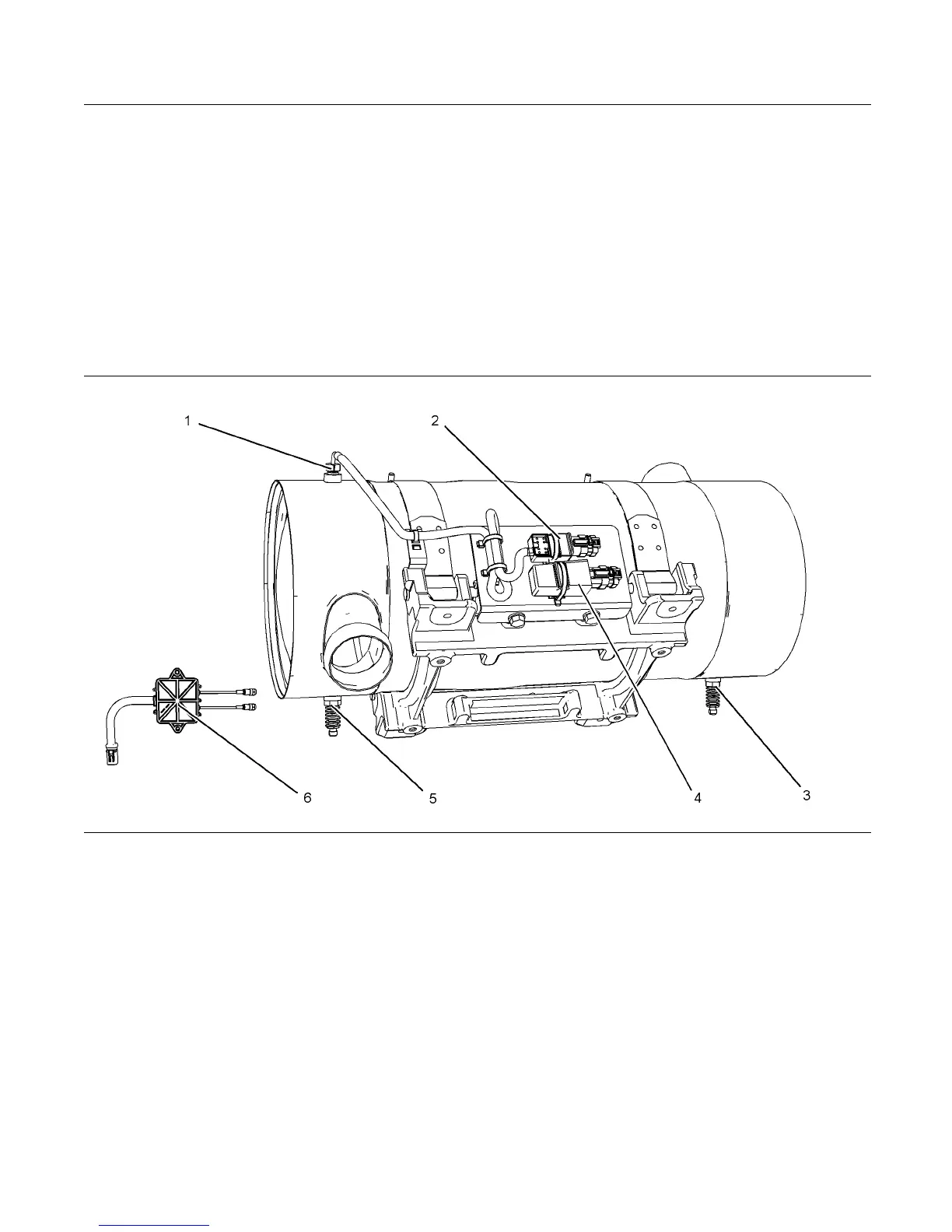

Illustration 33
(1) Temperature S ensor
(2) Connector for Tem perature Sensor
(3) Soot Sensor Connection
(4) Aftertreatment Identification Module
(5) Soot Sensor Connection
(6) Soot Sensor
Note: The location of the soot sensor will depend
on the application.
i04238530
Sensors and Electrical
Components
The illustration within the section shows the
typical locations of the sensors and other electrical
components on a 1204 Industrial engine. Specific
engines may appear different due to the application.
