40 SEBU8605-01
Operation Section
Features and Controls

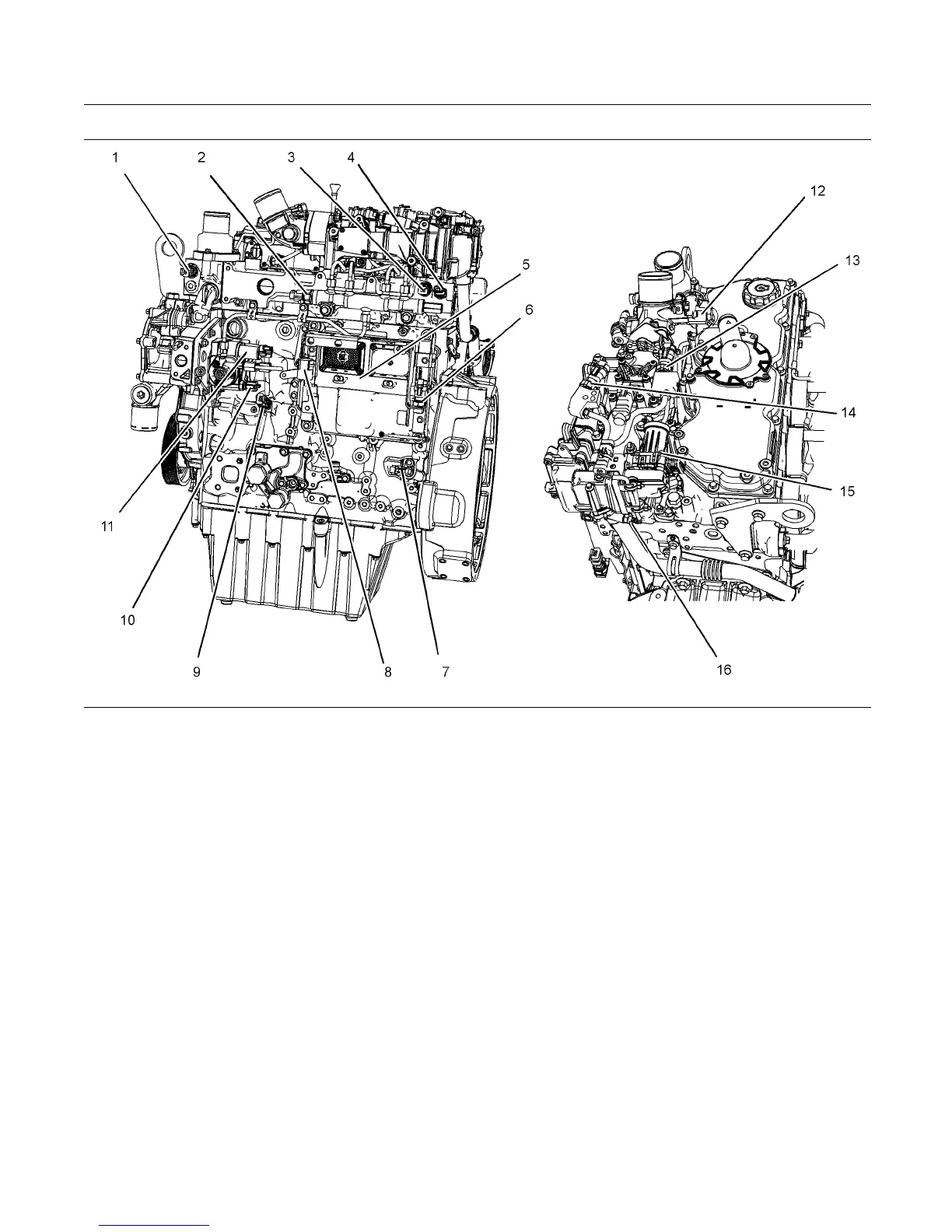

g02411637
Illustration 34
(1) Coolant Temperature S ensor
(2) Fuel Pressure Sensor (Fuel Ra il
Pressure Sensor)
(3) Intake Manifold A ir Tempe rature Sensor
(4) Intake Manifold Pressure S ensor
(5) Electronic Control Module (ECM)
(6) A tmosph eric Pressure Sensor
(Barometric Pressure Sensor)
(7) Primary Speed/Timing sensor
(Crankshaft Position Sensor)
(8) Diagnostic Conn ector
(9) Oil Pressure Sensor
(10) Fuel Temperature Sensor
(11) Solenoid for the H igh P ressure F uel
Pump
(12) Wastegate Regulator
(13) Inlet Pressure Sens or for the NOx
Reduction System (NRS)
(14) Outlet Pr essure Sensor for the NRS
(15) Control Valve for the NRS
(16) Temperature Sensor for the NRS
To Next Page
