SEBU8605-01 41
Operation Section
Features and Controls

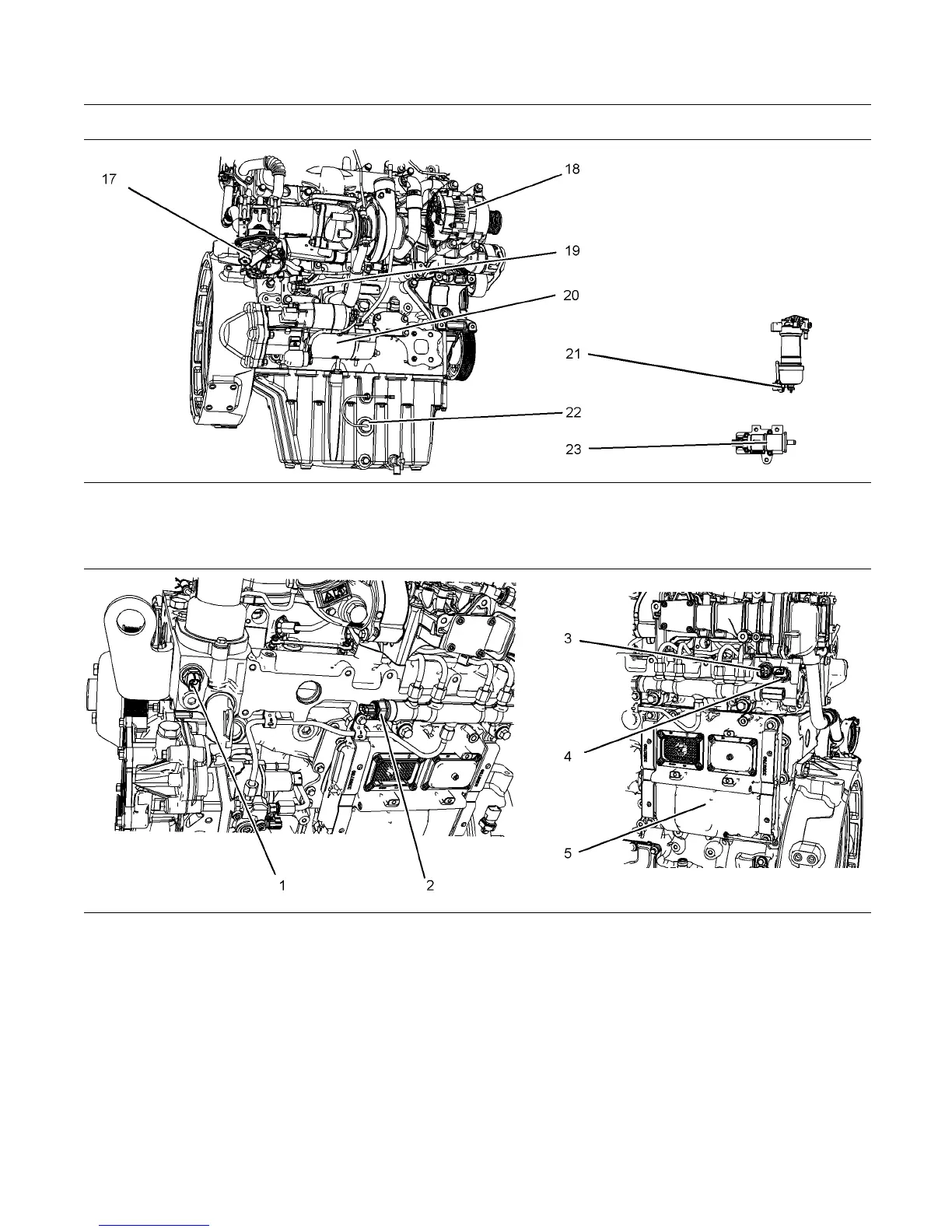

g02411837
Illustration 35
(17) Back Pr e ssure Valve
(18) Alternator
(19) Secondary Speed/Timing Sensor
(Camshaft Position Sensor)
(20) Starting Motor
(21) Water in F uel Switch
(22) Oil Level Switch (if Equipped)
(23) Electric P riming Pum p
g02413838
Ill
ustration 3 6
(1) Coolant Temperature S ensor
(2) Fuel Pressure Sensor (Fuel Ra il
Pressure Sensor)
(3) Intake Ma nifold Air Temperature Sensor
(4) Intake Manifold Pressure Sens or
(5) Electronic Control Module (ECM )
